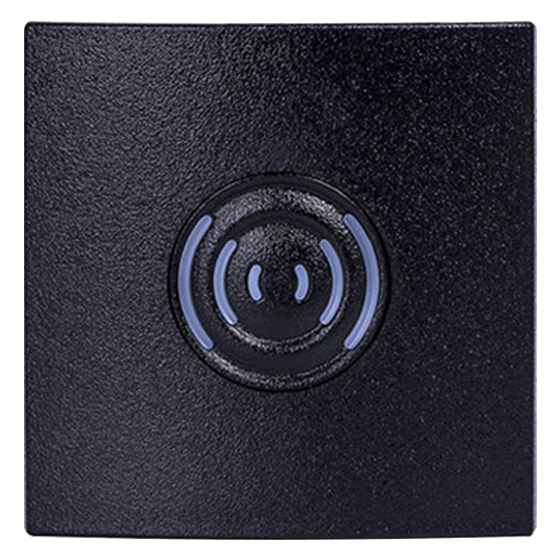

Card Access System for the office use

EM 125KHz  WG26 output

Mifare 13.56MHz  WG34 output

  • Brand:

    S4A
  • Item NO.:

    KR200
  • Specifications
  • Package

Item Name: Card Access System for the office use

Model No.: KR200


Introduction:

KR200E: 125KHz Proximity card reader

KR200M: 13.56MHz Mifare card reader

 Features:

> 125KHz Proximity /13.56MHz Mifare Card Reader

> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

> 26/34bit Wiegand (default)

> Easy to install on Metal Door Frame or Mullion

> External LED Control

> External Buzzer Control

> Indoor / Outdoor Operation

> Solid Epoxy Potted

> Waterproof IP65

> Reverse Polarity Protection

Specifications:

Model

KR200EM and KR200MF

Read Range

KR200EM: Up to 10CM, KR200MF: Up to 5CM

Reading Time (Card)

≤300ms

Power / Current

DC 6-14V / Max.70mA

Input Port

2ea (External LED Control, External Buzzer Control)

Output Format

26bit/34bit Wiegand (default)

LED Indicator

2 Colour LED Indicators(Red and Green)

Beeper

Yes

Operating Temperature

-20° to +65°C

Operating Humidity

10% to 90% relative humidity non-condensing

Colour

Black

Material

ABS+PC with texture

Dimension(W x H x T)mm

86X86X18mm

Weight

50g

Index of Protection

IP65

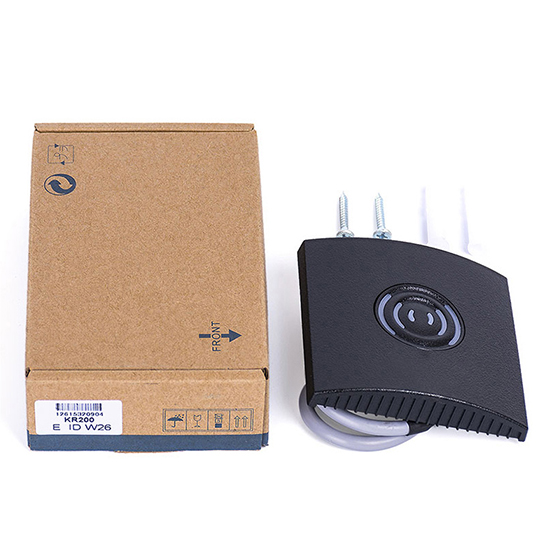

Package100pcs/Carton
Unit weight0.12KG/pcs
Carton Dimension:45X55X20(cm)
