Work with 4pcs 5 alkaline batteries
> Card type: EM or MF Card
> Optional color: Golden, Silver, Black
> Dimensions: 114x53x15.5mm
> Un-Lock mode: Single card Mode, Dual card Mode.
> Mechanical device to open the door, when it is out of order.
Brand:
S4AItem NO.:

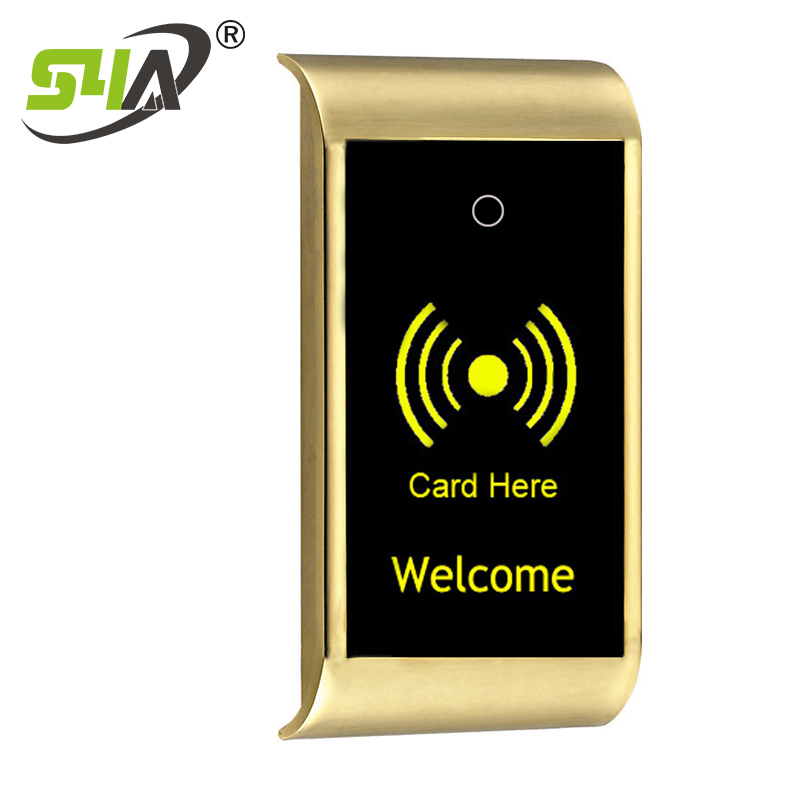

CB-100IC Card Sensor Digital RFID Lock Electronic Cabinet Locker Smart Locks
Model No: CB-100 Golden EM, MF
RFID locks use Radio Frequency Identification (RFID) technology and a key card reader which works as remote credentialing for access-controlled applications. The lock has an RFID electronic tag on it, which enables you to unlock it with an RFID card rather than using a physical key.
Card type | EM or MF Card |
Un-Lock mode | Single card Mode, Dual card Mode. |
Power supply | 4 pcs AA alkaline batteries |
Power type | 1.5V 2A |
Low battery alarm | when battery voltage is lower than 4.8V, Lock alarms when it is used |
Battery life | 12 months |
Auto Pop-up | Door is popped up automatically when you are un-locking this door with card(s) |
Panel material | Alloy&Plexiglass |
Data storage | Permanent storage |
Working temperature | -15℃～60℃ |
Optional color | Golden, Silver, Black |

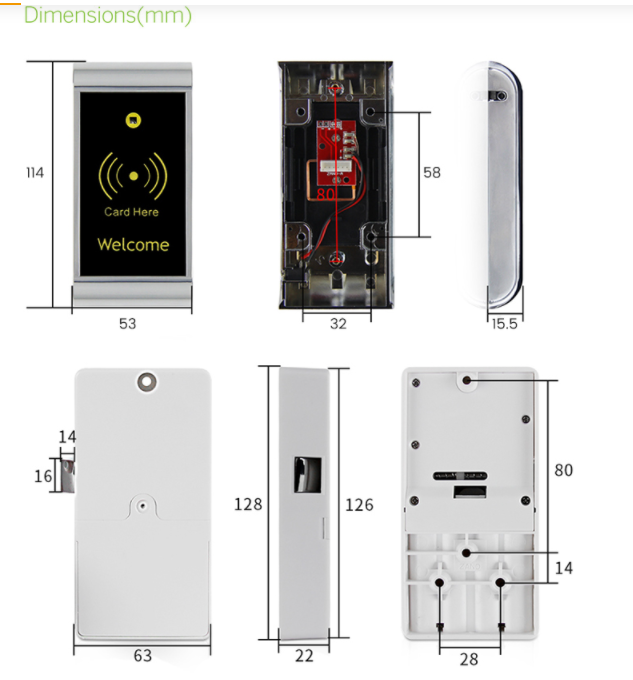

Dimensions | 114x53x15.5mm |
Additional | extra power supply port(Audio type) |
Cabinet Door Locks from Factory in shenzhen | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
CB-100 | 60 PC | 20 KG | 54x35x39 CM |
S4A Datesheet_IC Card Sensor Digital RFID Lock Electronic Cabinet Locker Smart Locks
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
