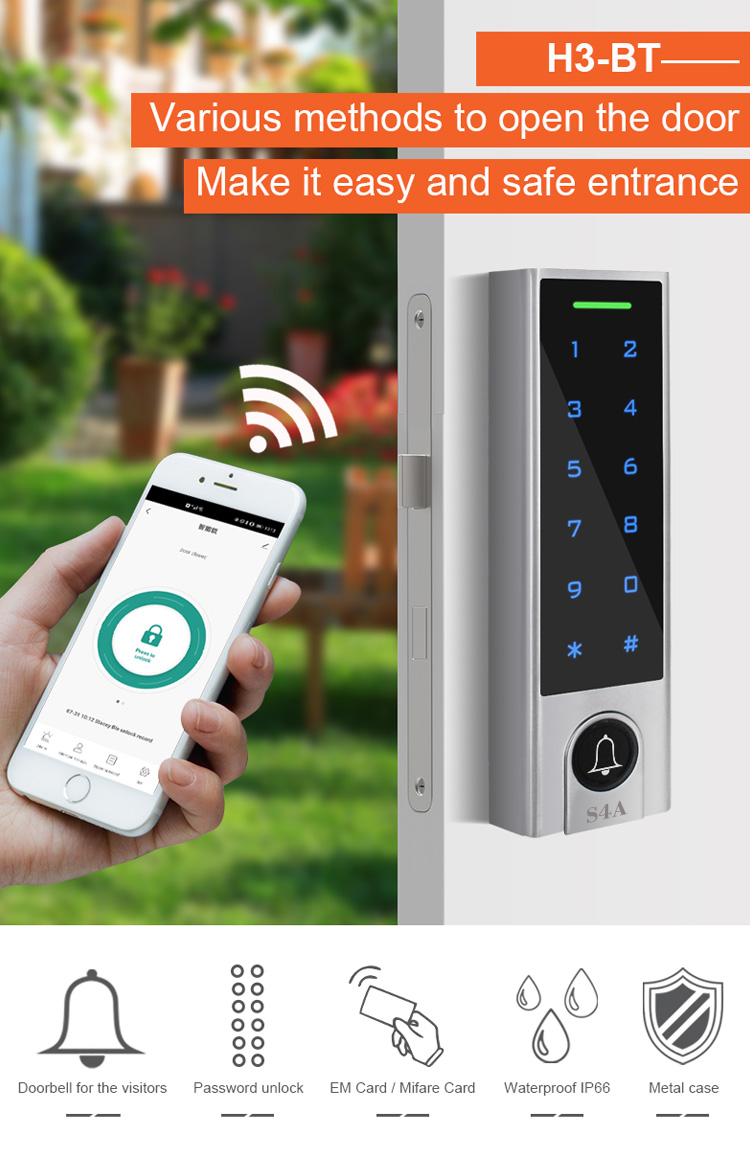

> Waterproof, conforms to IP66
> Card type: EM Card or Mifare Card

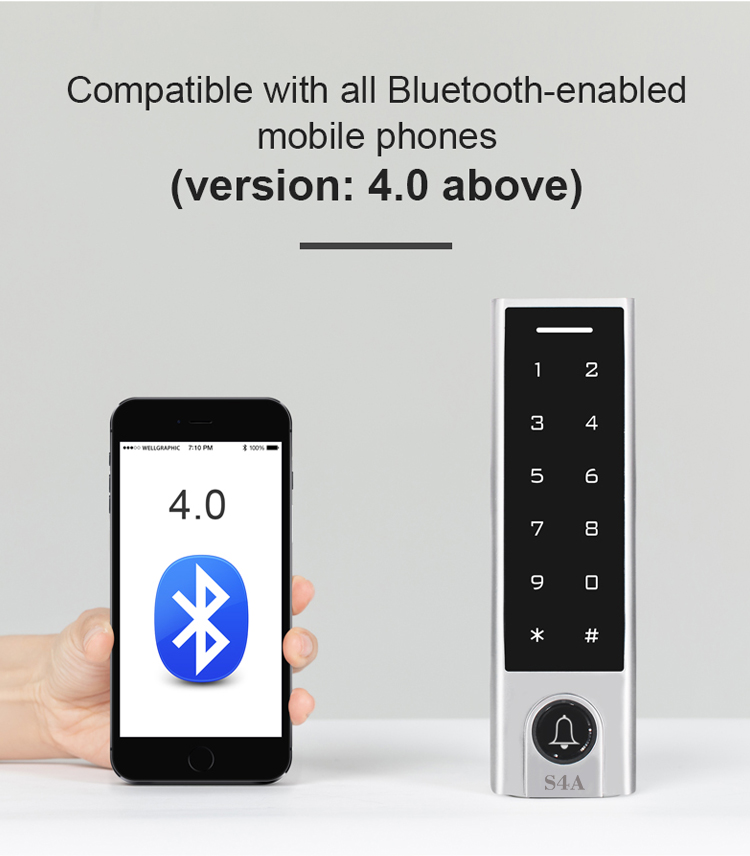

> iOS and Android available

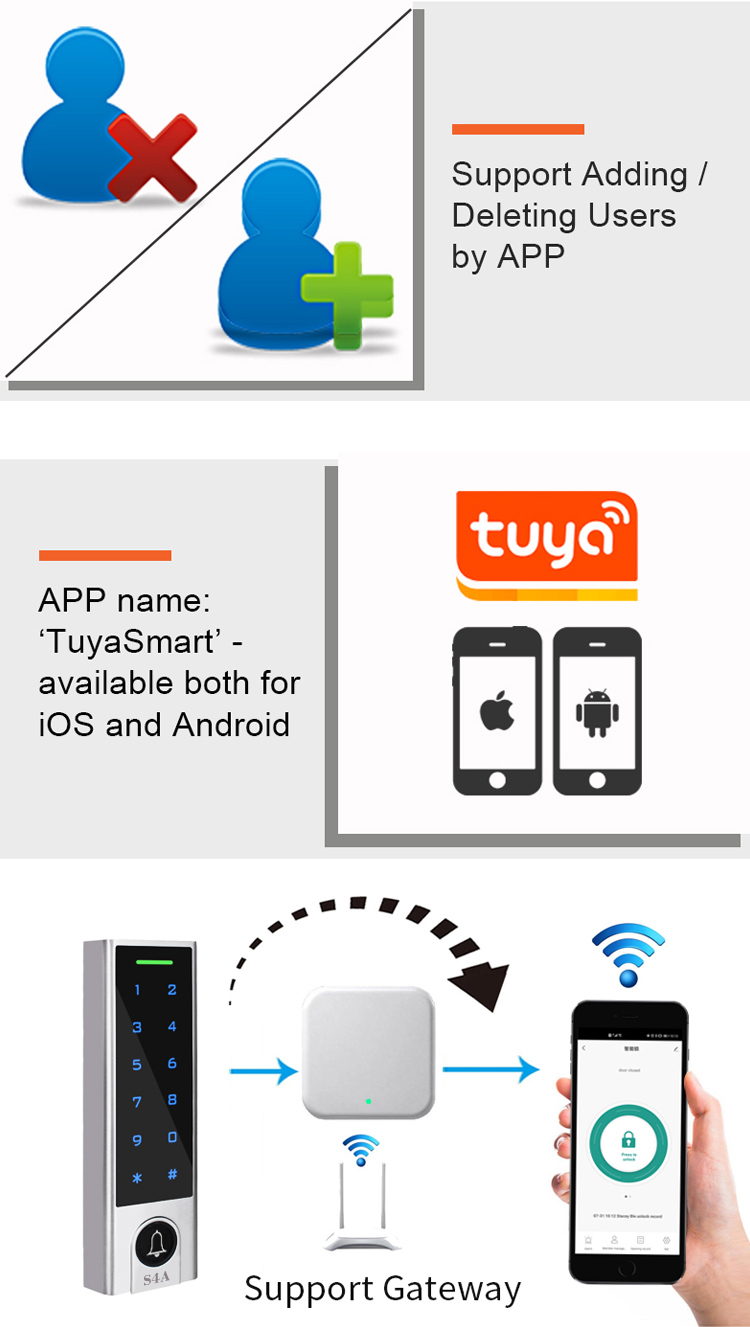

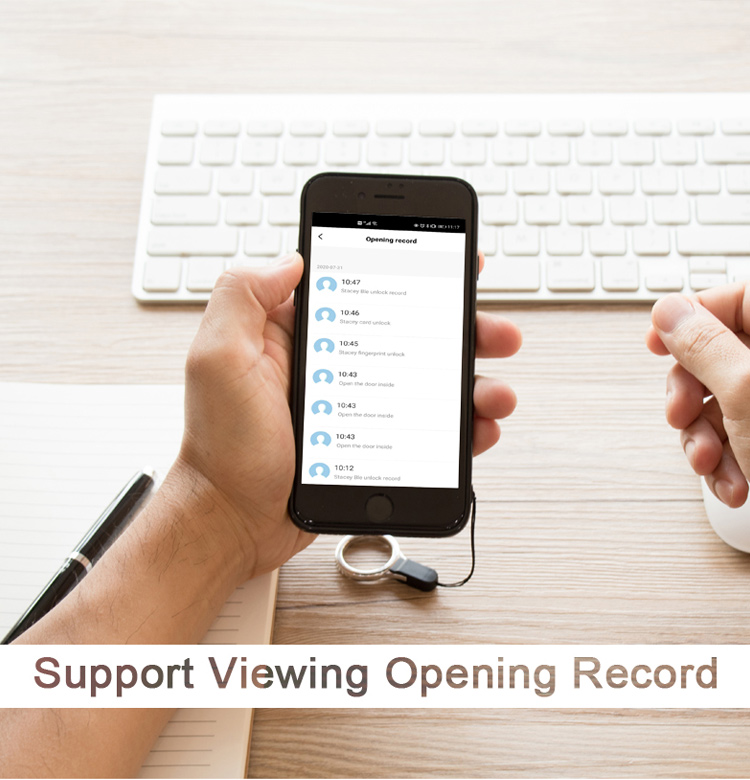

> Add / Delete users by APP
Brand:
S4AItem NO.:

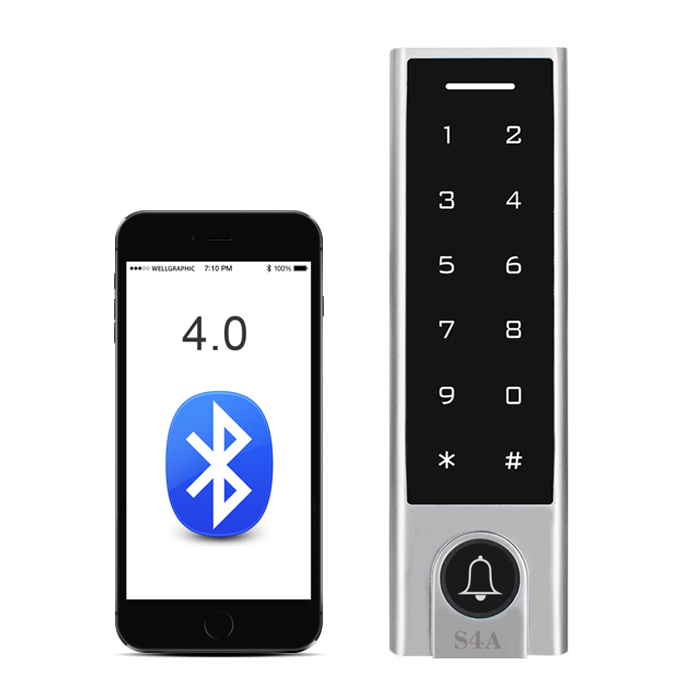

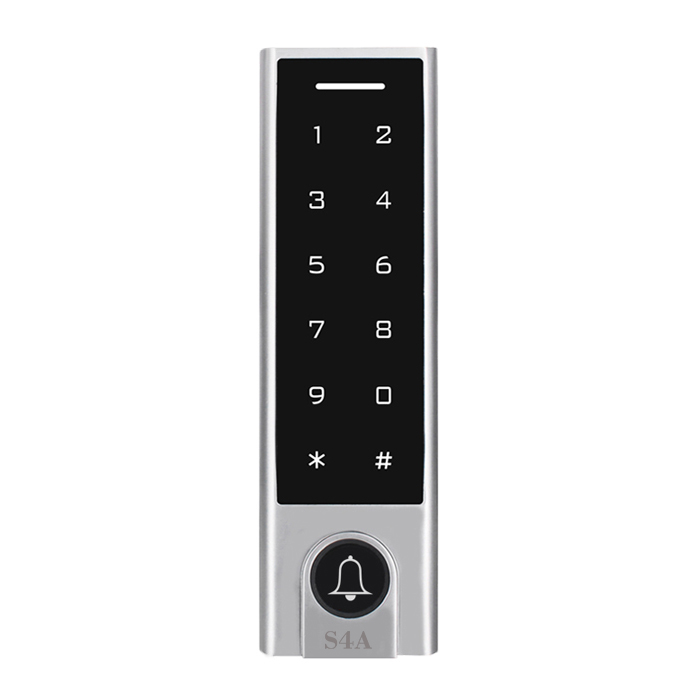

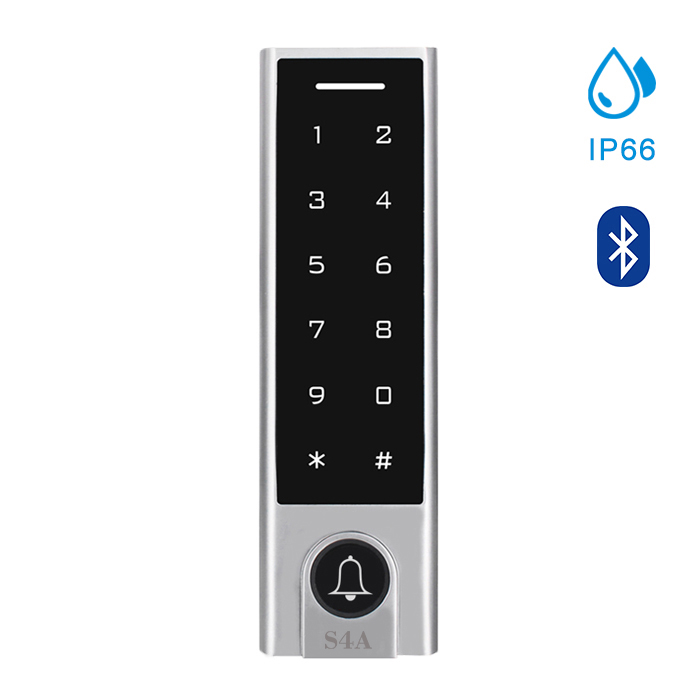

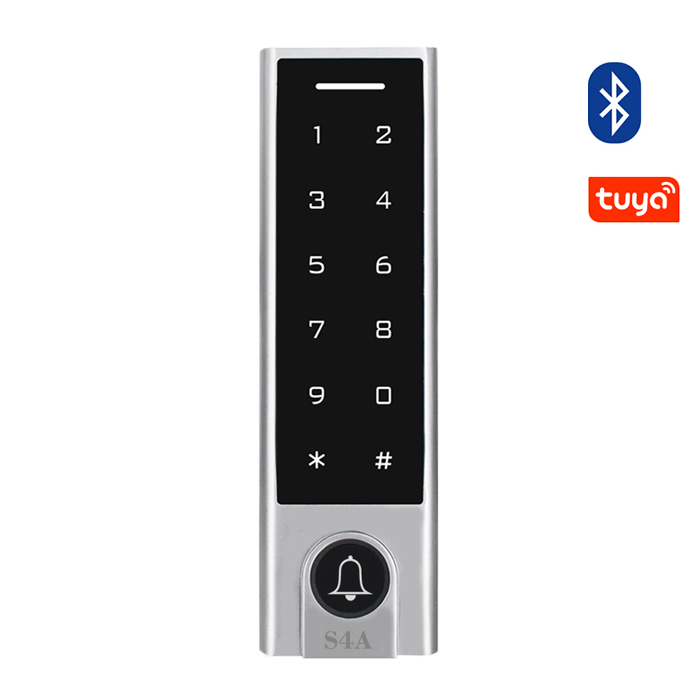

H3-BTBluetooth Smart Tuya Standalone Access Control
Model No.: H3-BT EM, MF
User Capacity | Hardware User: 1000, APP User: 100 (including 255 card/PIN users) |
Common User | 988 |
Visitor User | 10 |
Panic User | 2 |
PIN Length | 4~6 digits |
Operating Voltage | 12~18V DC |
Idle Current | ≤ 60mA |
Active Current | ≤ 150mA |
Proximity Card Reader | EM or Mifare |
Radio Technlogy | 125KHz/13.56MHz |
Read Range | 2~6cm |

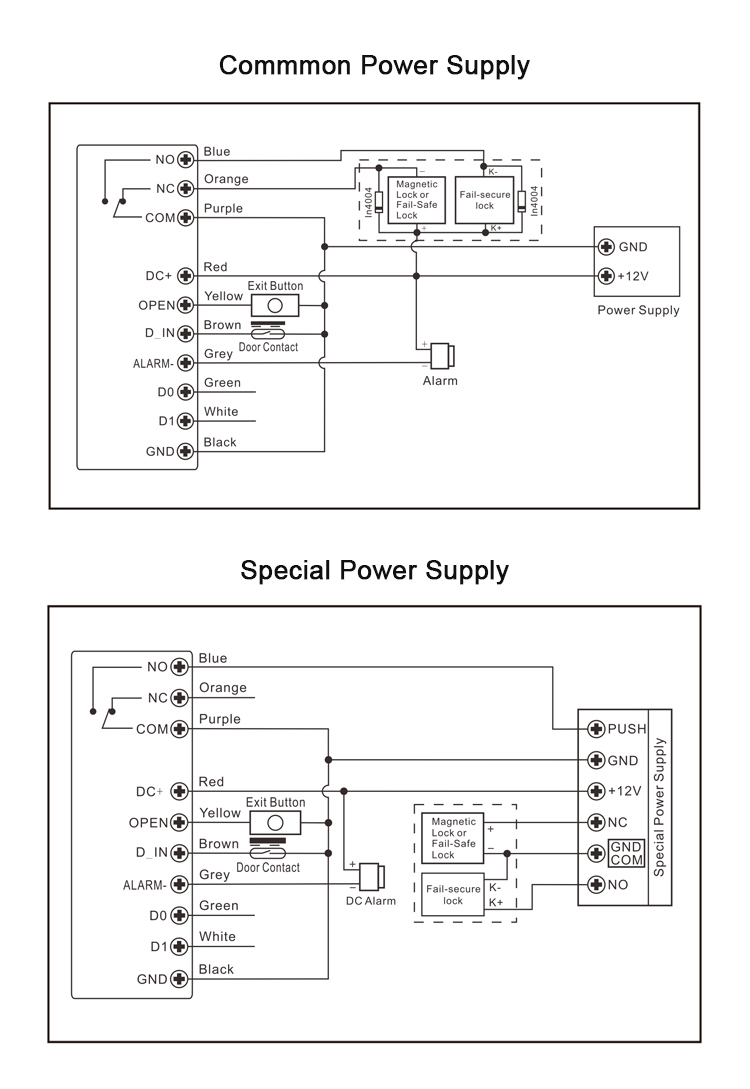

Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Wiegand Interface | EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) |
Mifare card version: Wiegand 26~44 bits, 56bits, 58bits input & output (Factory default: Wiegand 34bits) | |
PIN Output | 4 bits, 8bits (ASCII), 10 digits Virtual Number(Factory default: 4bits) |
Environment | Meets IP66 |
Operating Temperature | -40℃ ~ 60℃ (-40°F ~ 140°F) |
Operating Humidity | 0%RH ~ 98%RH |
Physical | Zinc-Alloy |
Color | Sliver & Black |

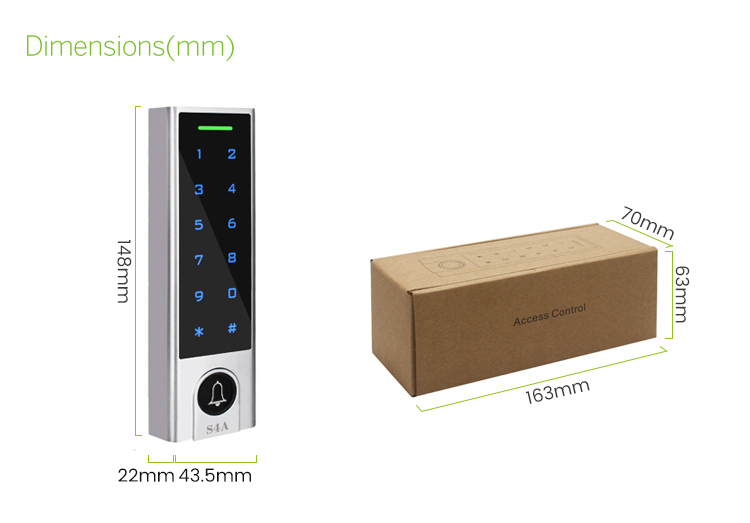

Dimensions | L148 x W43.5 x H22 (mm) |
Unit Weight | 330g |
Shipping Weight | 405g |
S4A Datasheet_Bluetooth Smart Tuya Standalone Access Control
