Support Bluetooth 4.0 on Android 4.4 or IOS 7.0
> Working voltage: DC 9-12V
> 125 KHz or 13.56 MHz; Mobile Blue tooth 4.0
> Communication interface: WG 26/34
> Reading distance: RFID Card: 1-5cm; bluetooth: 0-5M
Brand:
S4AItem NO.:

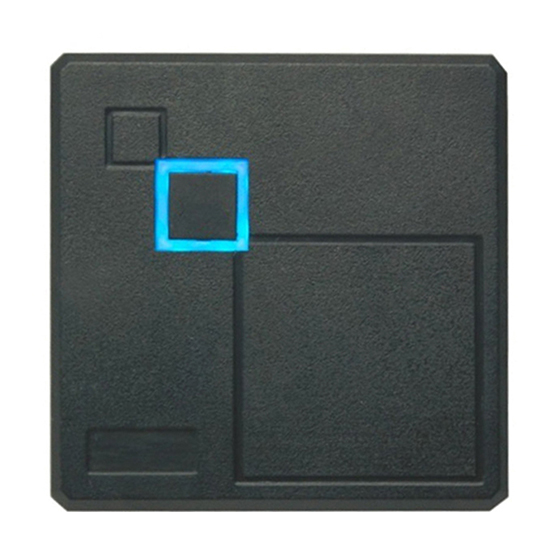

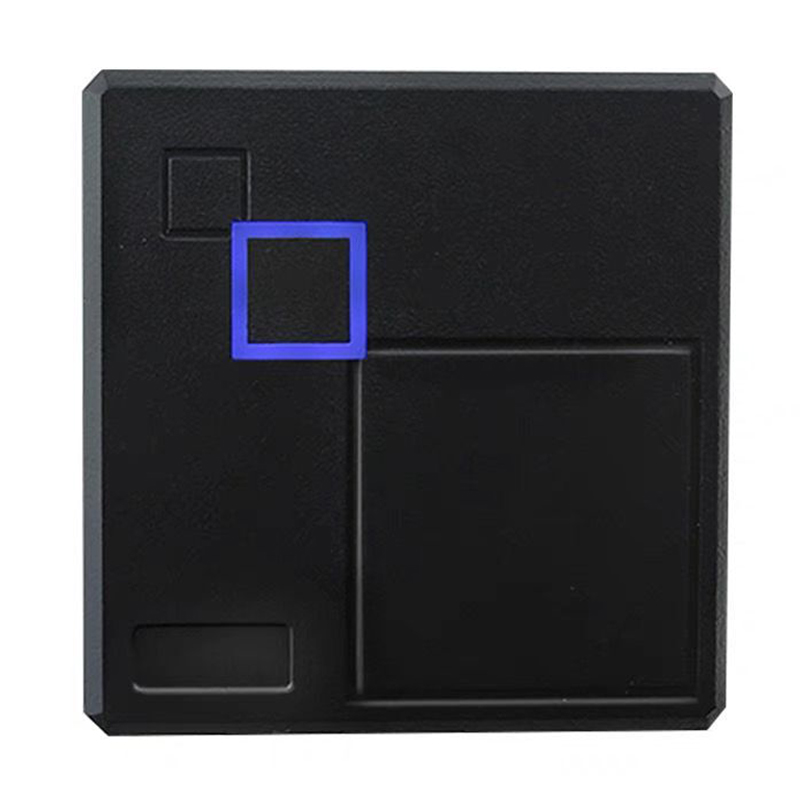

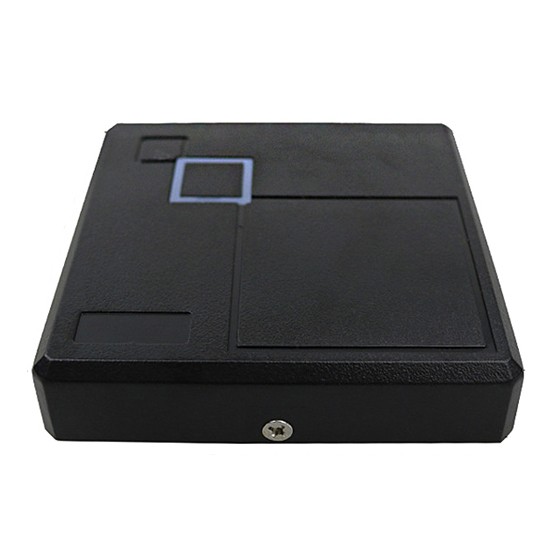

BT-86Bluetooth Card Reader For Door Access Control WG26 Card Reader
Model No.: BT-86
Introduction:
Appling Mobilephone Bluetooth 4.0 into RFID access control industry is a totally new technology.
Just install 'App', shake mobile phone around the reader or click 'one click to open', verification completed opening the door.
Working voltage | 9-12VDC |
Current | Average 50mA, maxmium100mA |
Frequency | 125 kHz or 13.56 MHz; Mobile Blue tooth 4.0 |

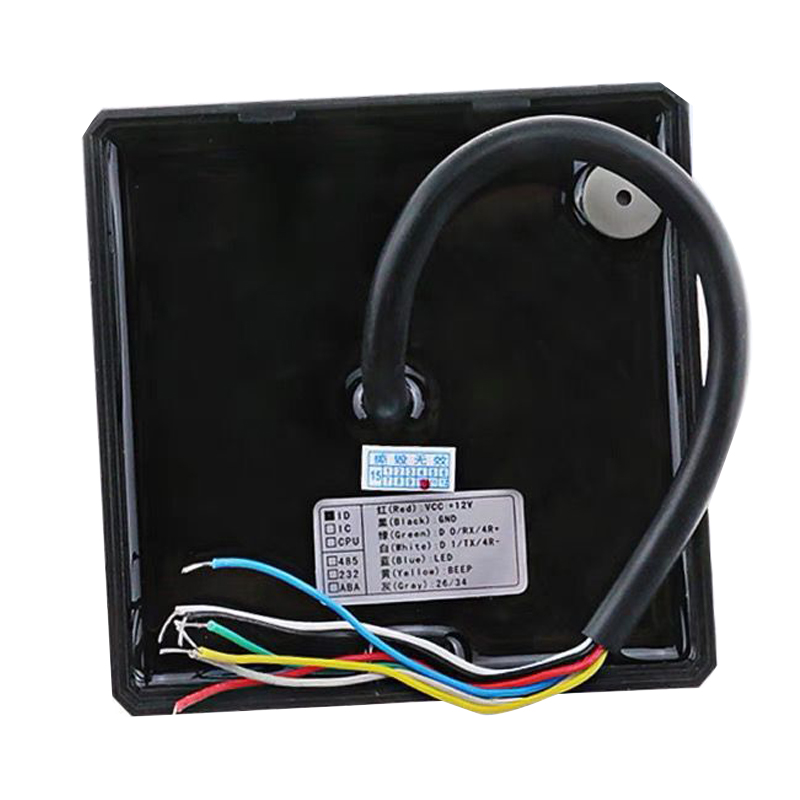

Communication interface | Wiegand26/34 |
Environment: | temperature -20-65, humidity 0 - 95% |
Reading distance: | RFID Card: 1-5cm;Bluetooth:0-5M |
Housing material | ABS |
Supported technology | Bluetooth 4.0 on Android 4.4+ or ios 7.0+ |
P.S: If any standalone access control unit built-in Wiegand Input. Then it's compatible and workable.
S4A User Manual_Bluetooth Card Reader For Door Access Control WG26 Card Reader
> LC bracket is a newly designed bracket which can hide the wires> Suitable for Inward Door> Use for EL-600 280KG series magnetic lock> Finish: Anodized Aluminium

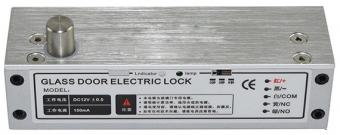

> Face Plate: 150×43×39mm> Bolt: 17mmDIA, stainless steel 13mm throw> Timer: 0 / 3 / 6 seconds available to set> Signal Output: Door Status Output, NO/COM> Suitable For: 12~15mm Electric Bolt For Fully Frameless> Open Left or Open Right (Choose One)

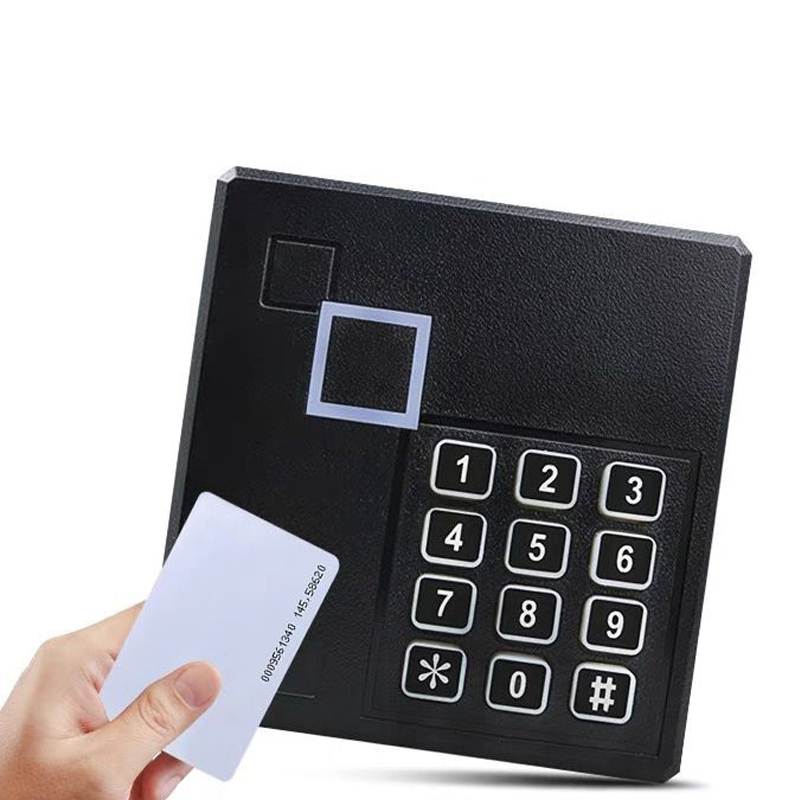

>Very low power consumption,standby current less than 80mA>Backlight keys>Wiegand output, Wg26 / WG34 card number format>Built-in buzzer>Can connect doorbell
>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM

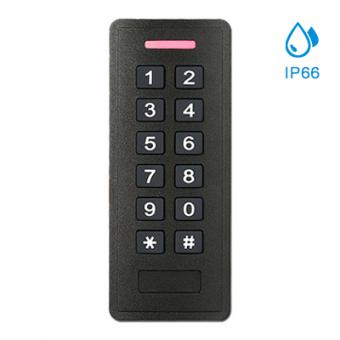

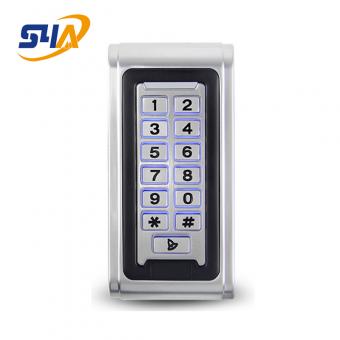

> Card type: EM and HID Card> Waterproof conforms to IP66> One relay, 1000 users> Wiegand 26~37 bits input & output> User data can be transferred by Wiegand line> Access modes: Card, PIN, Card + PIN, Multi Cards/PINs> Card type: 125KHz Hid & EM card, PIN length: 4~6 digits> Pulse mode, toggle mode> 2pcs device support interlock for two doors
> Material: ABS+PC+rubber coating> Storage capacity: 80,000 logs> Impact Records Capacity: 32,000 logs> Size: 131x56x20mm> Workable tags: 125kHz EM rfid tags
> Card type: EM Card > Multi-function standalone device can be used as a WG26 card reader > Capacity: 2000 card users, 2000 PIN users > Three-door open methods: card, code, card+code > Backlit keypad: Can operate keyboard in the dark night

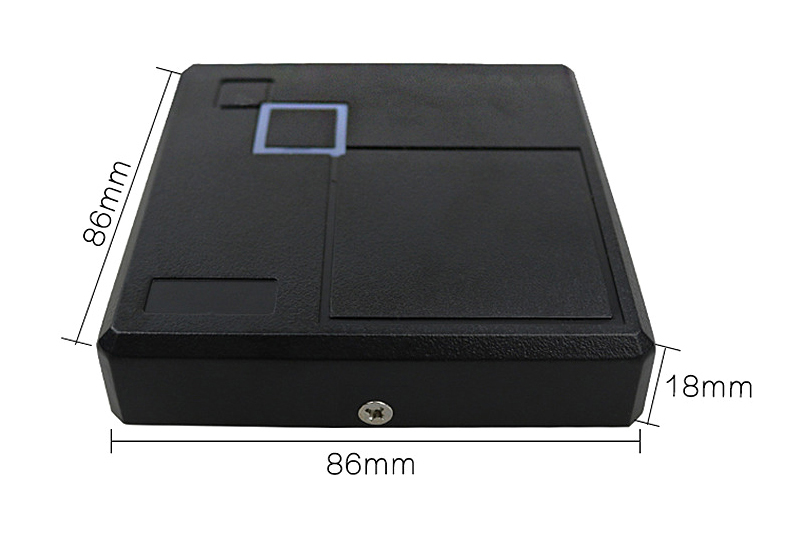

Dimension: 86x86mm
