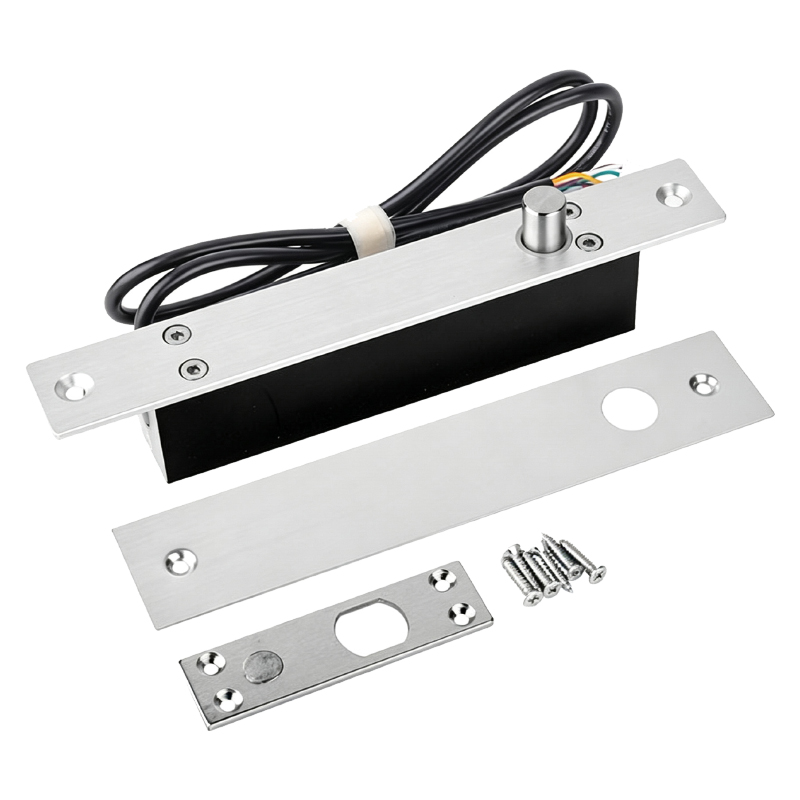

BL-1000NBL-1000N Vending Cabinet Electric Bolt Lock
The BL-1000N is a heavy-duty electric bolt lock specifically engineered for smart vending cabinets, lockers, and automated storage systems. Constructed from rugged die-cast aluminum with a high-strength stainless steel bolt (13mm diameter, 14mm extension), it delivers up to 1000N of holding force for optimal security. Operating on DC12V with fail-secure (power-on to unlock) operation, the BL-1000N provides high durability, low power consumption (<250mA working current), and reliable performance across wide operating temperatures (-20°C to 60°C).
Parameter
Specification
Model Number
BL-1000N
Product Name
Vending Cabinet Electric Bolt Lock
Housing Material
Die-Cast Aluminum
Bolt Material

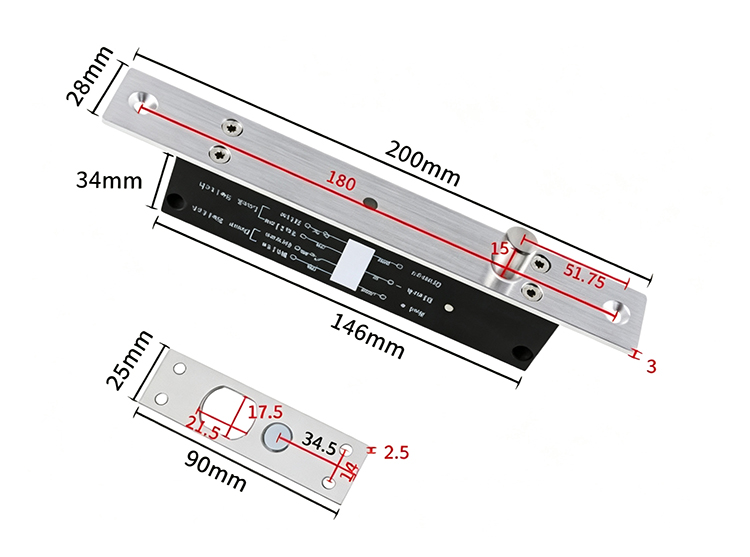

Stainless Steel (13mm Diameter, 14mm Extension)
Operating Voltage
DC 12V ±10%
Start Current
< 1.4A
Working Current
< 250mA
Unlock Method
Power-On to Unlock (Fail-Secure)
Bolt Holding Force
1000 N
Lock Shell Load Capacity
110 N
Effective Signal Distance
Within 10mm (Bolt / Door Sensor Signal)
Unit Weight
0.55 kg
Operating Temperature
-20°C ~ 60°C
Working Humidity
40°C ±3°C, 80% RH
> Power supply: DC12-24V> Locking start current: 980mA> Quiescent Current: 200mA> Security type: Power on lock
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Face Plate: 200X34X42mm> Strike Plate: 90X25X3mm> Lock Cylinder: 15mmX15mm> Working Voltage: DC12V> Start working: 450mA
> Face Plate: 205Lx35WX40H(mm)> Bolt: 16mm(Throw) x 16mm(Diameter)> Voltage: DC12V

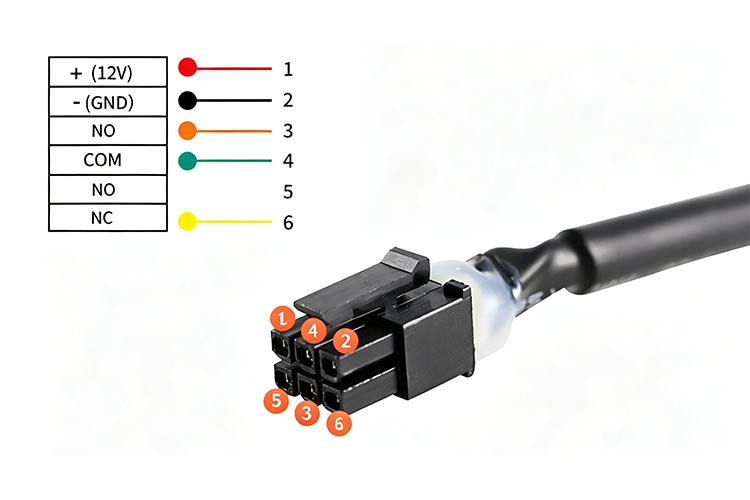

Signal Output: door open or door close state detection with output point, NC/COM
> Voltage: DC12V> Start Current: 900mA> Standby Current: 150mA> Face Plate: 205Lx35WX41H(mm)> Strike plate: 90Lx25Wx2W(mm)> Solid Bolt: polishing housing, 800Kg Holding Force> Signal Output: Door status Output, NC/COM> Timer: 0/ 3/ 6/ 9 seconds available to set
Fail-Secure (power off, the door is locked) 12V-24V> Low Temperature, safe & Durable> Low Power, Environmental Protection> MOV Provides Reverse Current Protection> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt> Autolock Time Delay: 0,3,6,9sec.> Double protection for loading current> Auto-relock if no Action within 5 secs.
