>Fingerprint sensor Semiconductor sensor
>Communication USB + Bluetooth + Tuya APP
Brand:
S4AItem NO.:

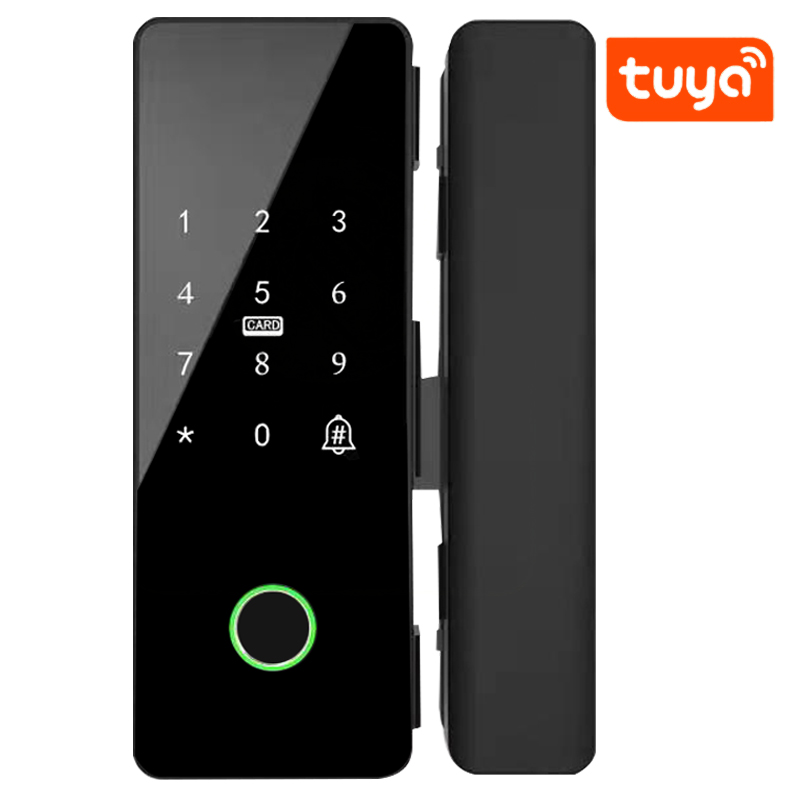

KB108Biometric Fingerprint Access Control System Digital RFID Smart Glass Door Lock
Model No.: KB108
What is a fingerprint door lock?
Biometric door locks use personally identifiable information in lieu of a traditional key. They use a thermal or optical scanner to store the fingerprints of anyone authorized to unlock your door. Once the scanner determines that you are an authorized user, it prompts you to input a PIN to unlock the door
S4A Model | KB108 |
Fingerprint sensor | Semiconductor sensor |
Communication | USB + Bluetooth + Tuya APP |
Fingerprint collector | dark background optical tape inductive fingerprint collector. |
Fingerprint recognition algorithm | S4A V2.0 high speed fingerprint algorithm, |
Fingerprint Verify speed | ≤ 0.1S |
Error rate | ≤ 0.0001% |
FRR | ≤0.01% |
Power Supply | DC4.0~6.0V (4*1.5V AA Battery) |
Working Current | ≤30UA |
User Capacity | 1000 Templates (Finger/RFID/Pincode) |
Recognition Mode | Fingerprint, password verification, ID EM card |
Optional Functions | Remote Smartphone Control, EM Card, Remote Controller |
Resolution | 500DPI |

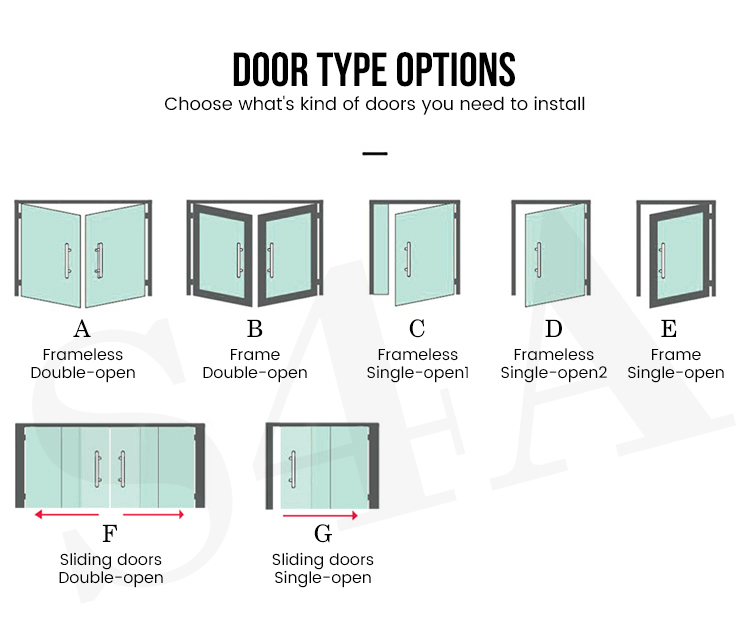

Door thickness | 8~15mm |
Operating Temperature | -20℃ ~ 55℃ |
Operating Humidity | ≤93% |
Emergency Power | Emergency External Power USB Port, 6~9v |
Other function | Low battery alarm, Normal Open, Door bell |
Unit Weight | 1.7KG |
Standard Package | 8PCS |
Carton Weight | 11.5KG |
Carton Size | 50*45.5*25.5 (cm) |
S4A Datasheet_Biometric Fingerprint Access Control System Digital RFID Smart Glass Door Lock
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
