>Protection level: sealed, waterproof, dustproof
>Size:1650x1500x2300mm
Brand:
S4AItem NO.:

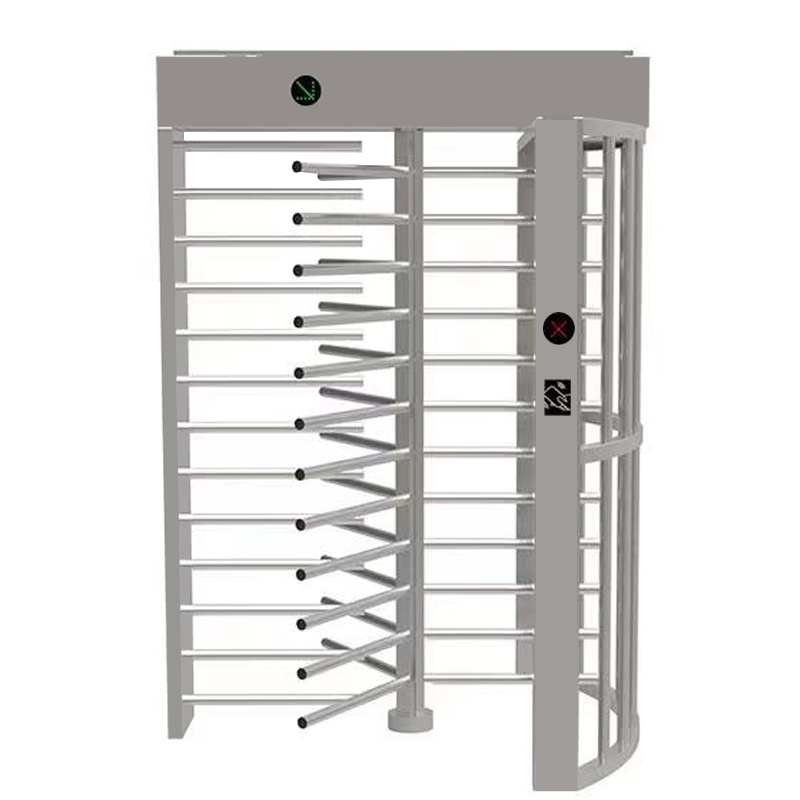

S4A-1650Automatic Security Revolving Full Height Turnstile Gate Access Smart Gate
Model No: S4A-1650
MAIN FUNCTIONS:
Automatic type
1. Being compatible with several control devices IC/ID card, magcard, bar code, fingerprint and etc.
2. Unlocking is quick and reliable
3. Direction: single direction, bi-direction(optional), several working modes are optional
4. Automatically reset function: It will automatically lock if the pedestrian hasn’t passed through the channel in the pre-set time after the opening.
The passing time is adjustable.
5. The centre rotor will be set free (default) or locked (optional) automatically when power is off.
6. Emergency function:Turnstile gate rotate freely after power off
7. Counting Function , LED display
8. Memory Function
9. With standard input, output interface
Manual Type
1.The center rotor can only rotate by single direction,but the direction can be changed easily inside
2.The structure has no electric devices
Operation voltage | DC 24V |
Operation current | 3A/5A(max) |
Transit speed | 30-40 persons/min |
Communication interface | standard RS485 interface(distance less than 1200m) |
Input interface | Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms |
Working environment | indoor, outdoor(with a tent over) |
Relative humidity | 90% no condensation |
>Protection level: sealed, waterproof, dustproof>Size:2400x1400x2200mm

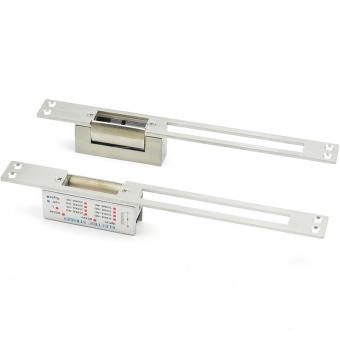

> Lock Size: 110Lx25Wx31.5H(mm)> Strike Struiture: Zinc die-casting> Holding Stength: 600kg> Voltage: DC12V> Current: 700mA
> Wave length: 940nm> Operating Voltage: 12-24V DC> Detection distance: ≤20M> Frequency: 1.92KHz> Waterproof IP65

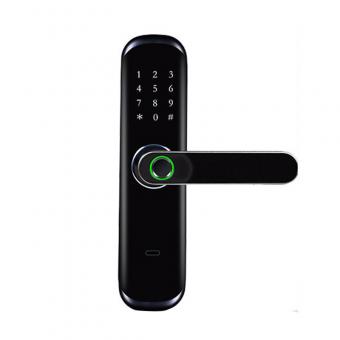

> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Operate by infrared remote> 10,000 card users and 300 fingerprint users> Relay NO/NC/COM output

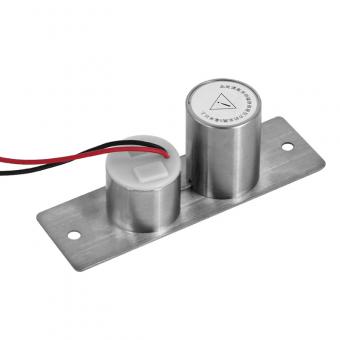

Fail-Secure (power off, the door is locked) 12V-24V> Low Temperature, safe & Durable> Low Power, Environmental Protection> MOV Provides Reverse Current Protection> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt> Autolock Time Delay: 0,3,6,9sec.> Double protection for loading current> Auto-relock if no Action within 5 secs.
> Card type: EM Card> Metal case, anti-vandal> Capacity: 200 fingerprints and 500 cards> Two accesses: card, fingerprint> Fingerprint access controller and reader, WG26 Input / output
>12 to 24V wide voltage>Three tones are optional, 119, 120, and 110 tones, the default is 119, and you can switch by yourself

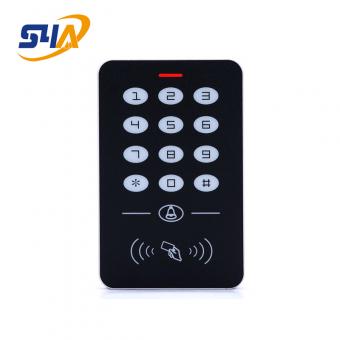

>PIN Length:4~8 Digits>Card Type: 125KHz EM Card>Communication Frequency: 433MHz>Physical: ABS Shell
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
