>Power Supply AC/DC 12~24V (-/+10%)
>Static Current 30mA (DC12V)
>Action Current 110mA (DC12V)
Brand:
S4AItem NO.:

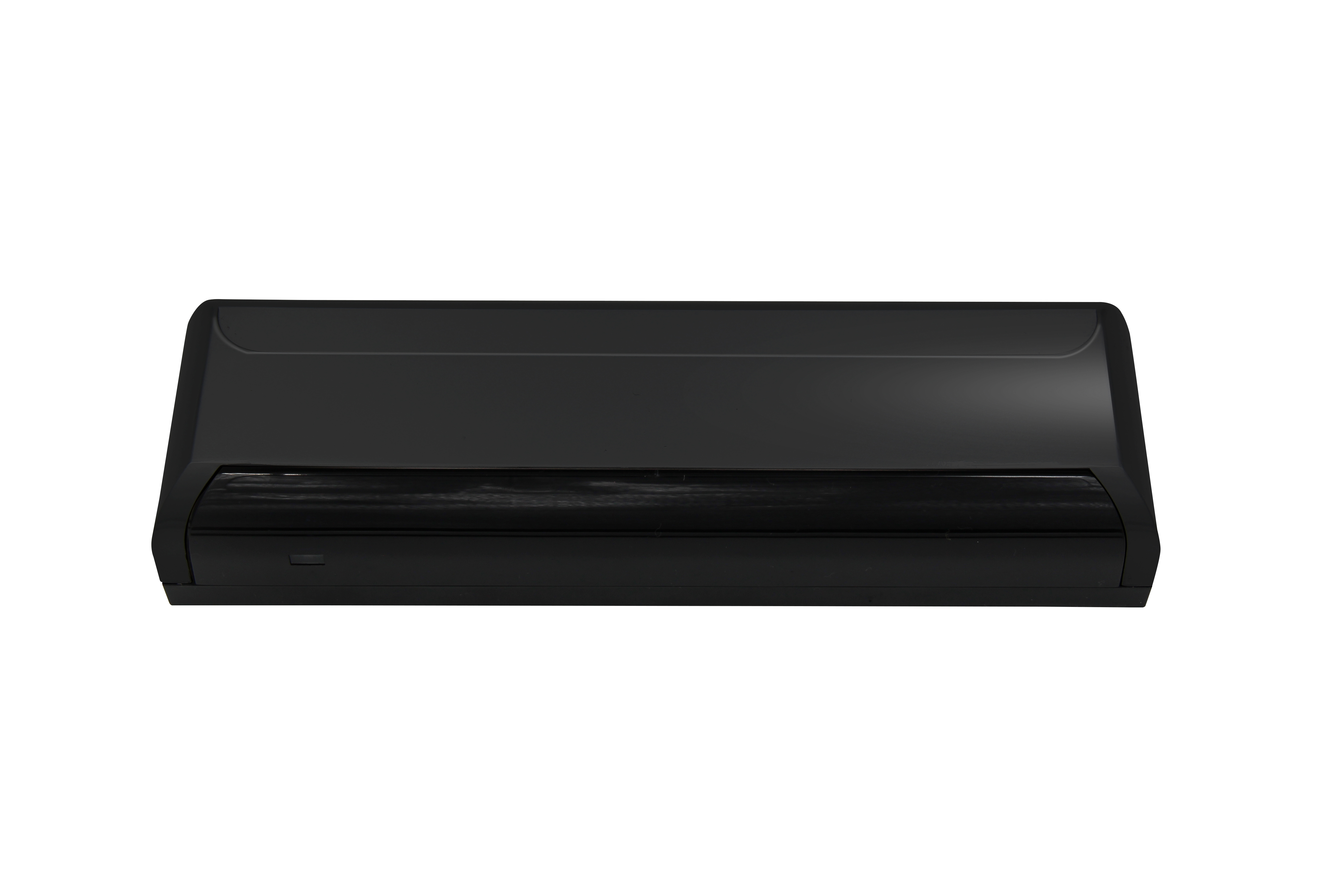

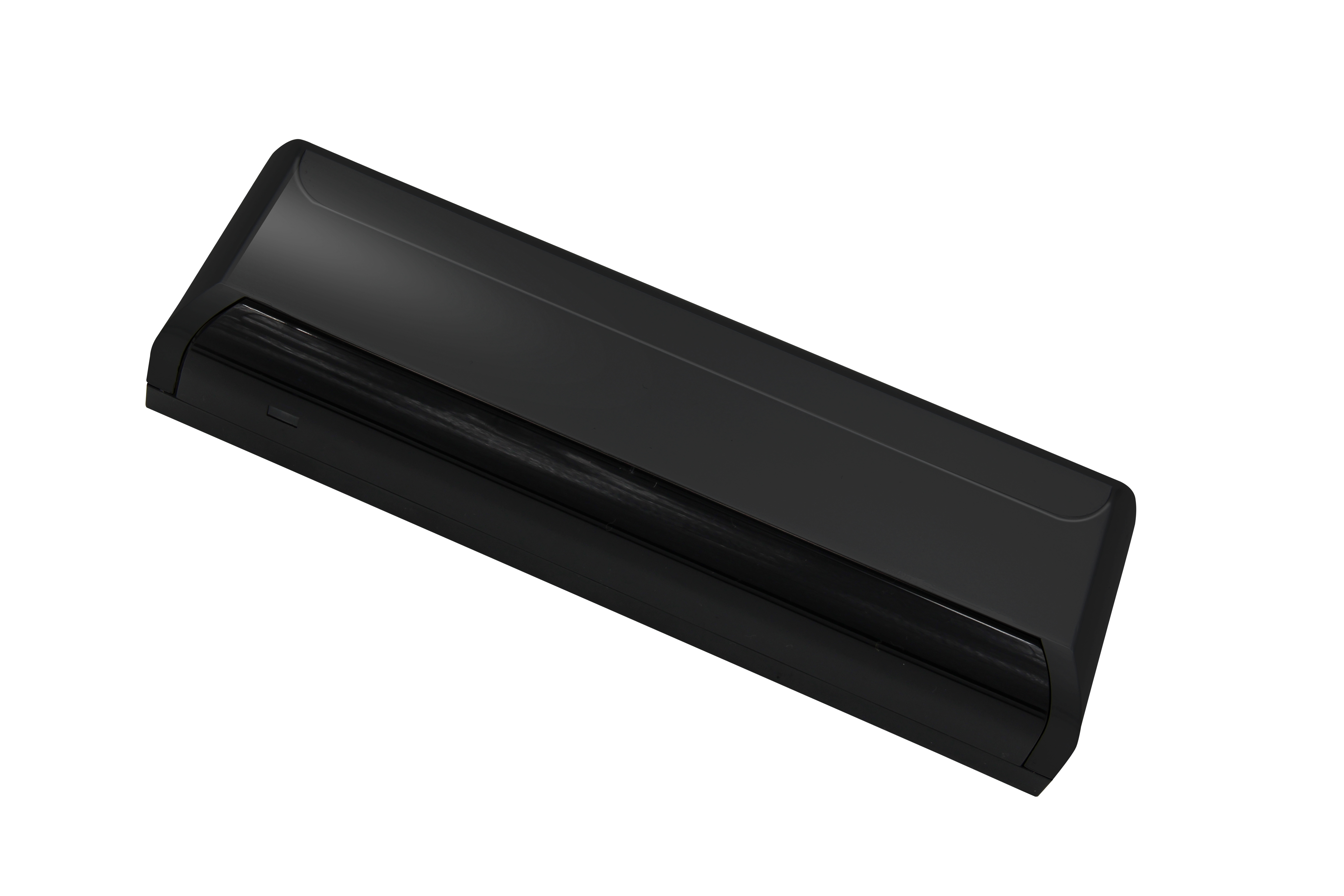

M-254EAutomatic Door Operators Beam Photocell Sensor
Model No.: M-254E
IR activation & IR safety sensor
>A combination sensor of door opening and safety protection, using active infrared technology for both motion detect and presence detect.
>Accurate and adjustable probing range of movement detection is perfect choice
Power Supply | AC/DC 12~24V (-/+10%) |
Relay Signal Output | 1 for motion detect, 1 for presence detect |
Max. Mounting Height | 3000mm |
Static Current | 30mA (DC12V) |
Action Current | 110mA (DC12V) |
Ray Type | Reflect Infrared |
Ray Source | 940nm Infrared |
Activation Ray | 1 line, 4 emissions, 16 light spots |
Presence Detect Ray | 3 line, 12 emissions, 48 light spots |
Self-learning time | 10s |
Working Temperature | -40°C ~ 60°C |
LED indication | Standby(GREEN), Activation(YELLOW), Presence detect(RED) |
Probing Range | 1600mm (width) x 800mm (depth) |
Signal holding time | Presence detect 500ms, motion detect 2s |
Response time | ≤100m s |
Dimension | 229mm(width) × 67mm(height) × 41mm(depth) |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
