S4A Automatic Flat door systems with Pull arm or Push arm, support 110V or 220V with a brushed motor
> Power supply: 110V or 220V
> Opening time: 3~7s / 90°
> Opening and holding time: 1-30s
> Protection level: IP12D
Brand:
S4AItem NO.:
ED100AC 220V/110V Max weight 280kg automatic door Opener system for wooden door
Model No.: ED100

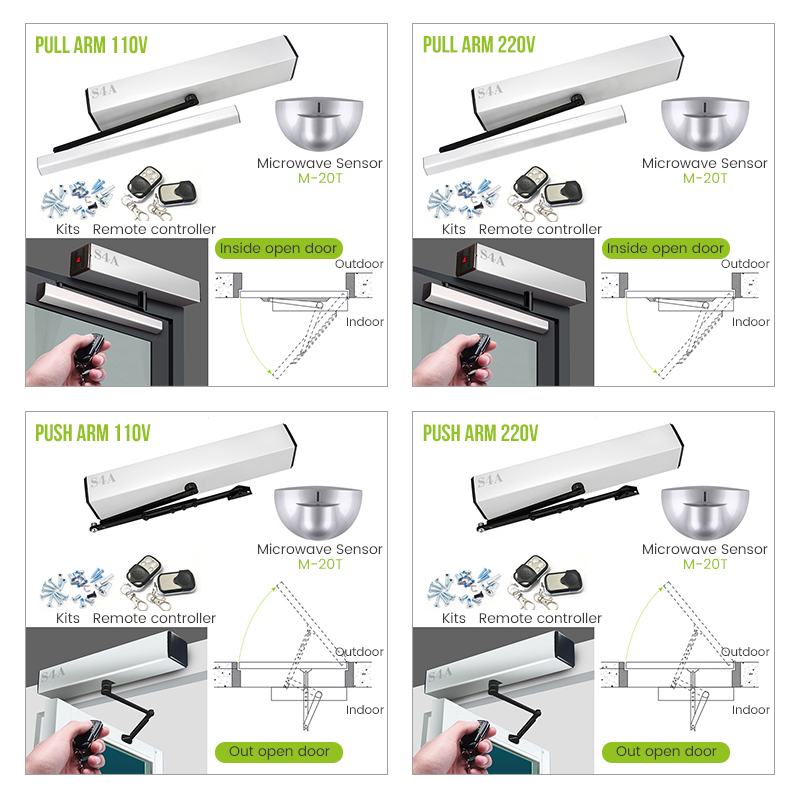

Model No. | ED100 (A) | ED100 (B) | ED100 (C) | ED100 (D) |

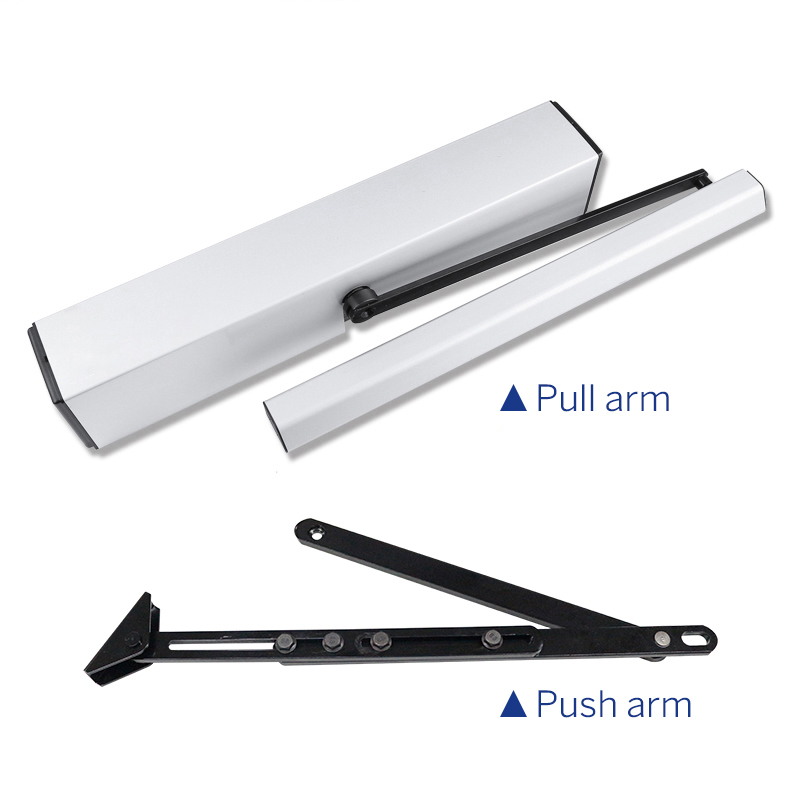

An operator with an arm | Pull arm | Push arm | Pull arm | Push arm |
Power supply | 220V | 220V | 110V | 110V |
Opening time | 3~7s / 90° | |||
Opening and holding time | 1-30s | |||
Temperature | -20℃~55℃ | |||
Protection level | IP12D | |||
Dimensions | 516x105x82mm | |||
Packing box | 626x197x152mm | |||
Weight | 8.5kg | |||
S4A automatic door opener is low energy automatic with a swing door opener activated by push buttons. This system operates in both automatic and manual modes, it makes the electronic door opener and closer highly adapt to voltage fluctuations between 110 or 220VAC ±10%, More energy-saving and durable than a standard single input voltage.

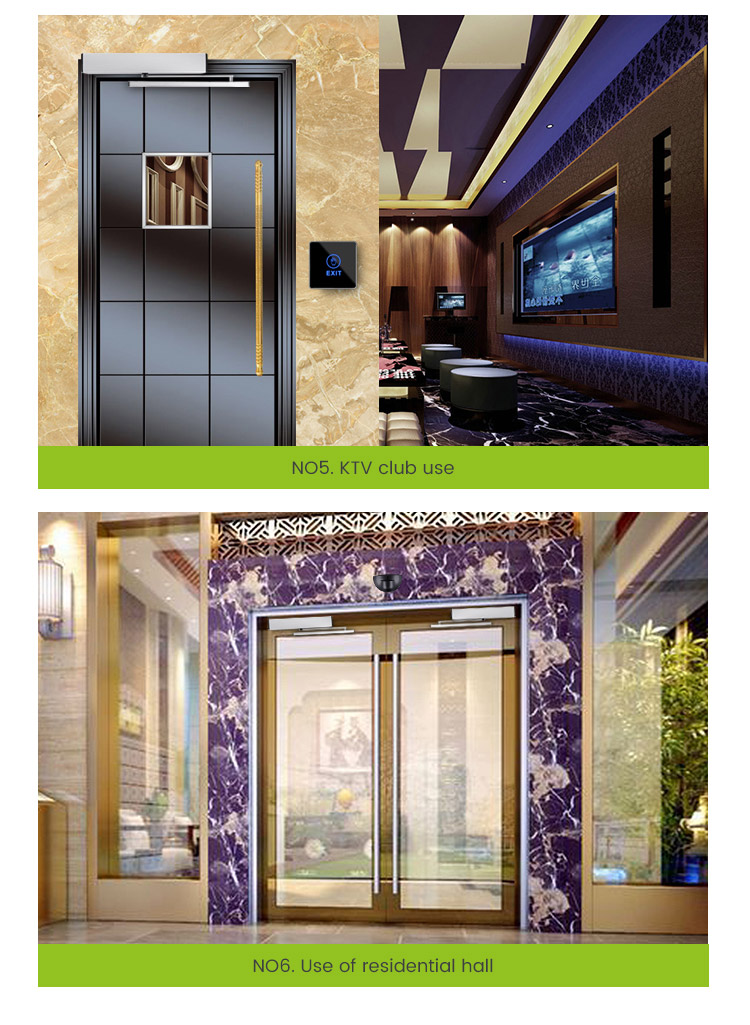

The simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.
It supports 2ways working mode:
1. standalone access controller, connect it to power, power on, then we could open it by remote control and close it automatically

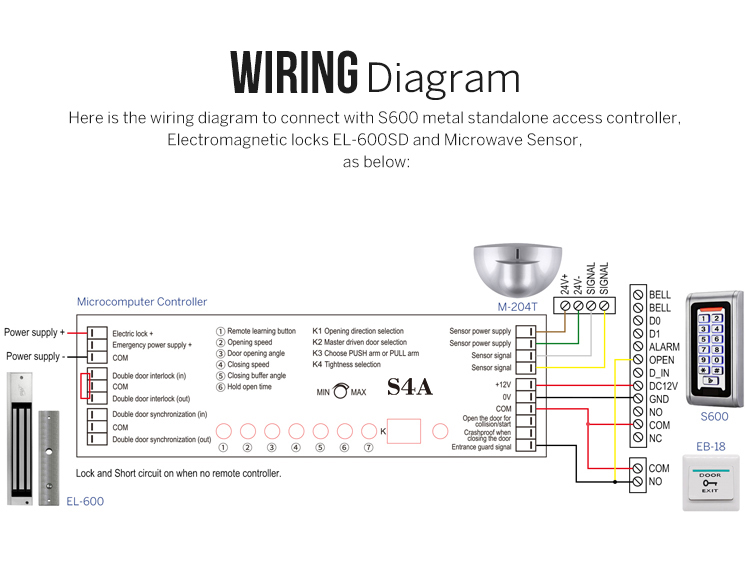

2. Connect it with RFID door access control systems, Enter by Face, RFID, Pincode or Finger, and exit by EB-16 or EB-17 Non-touch button or M-204T Microwave Sensor.
Main Features:
1. An advanced and reliable microprocessor controller is applied.
2. Brushless motor with self-locking, a long life span, and energy conservation.
3. Opening & Closing Speed adjustable.
4. The remote key can set Automatic/Lock/One Way/Half-open/Hold-open status.
5. Opening and closing smoothly with low noise.
6. Safety interlock and electric lock function.
7. Support multiple access control systems and Fire Alarm System
8. Auto-Reverse
Automatic Commercial Door Opener, Electric Garage Door with Touchless Wireless Square Handicap Push Buttons Wave Sensor | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
ED100 | 2pcs | 16KG | 65x33x23cm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
