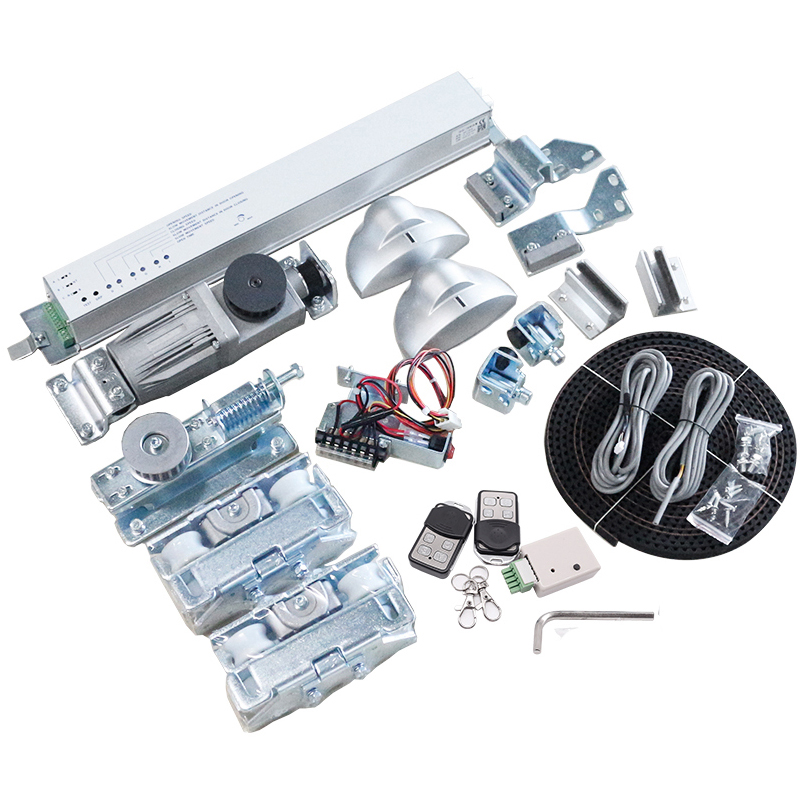

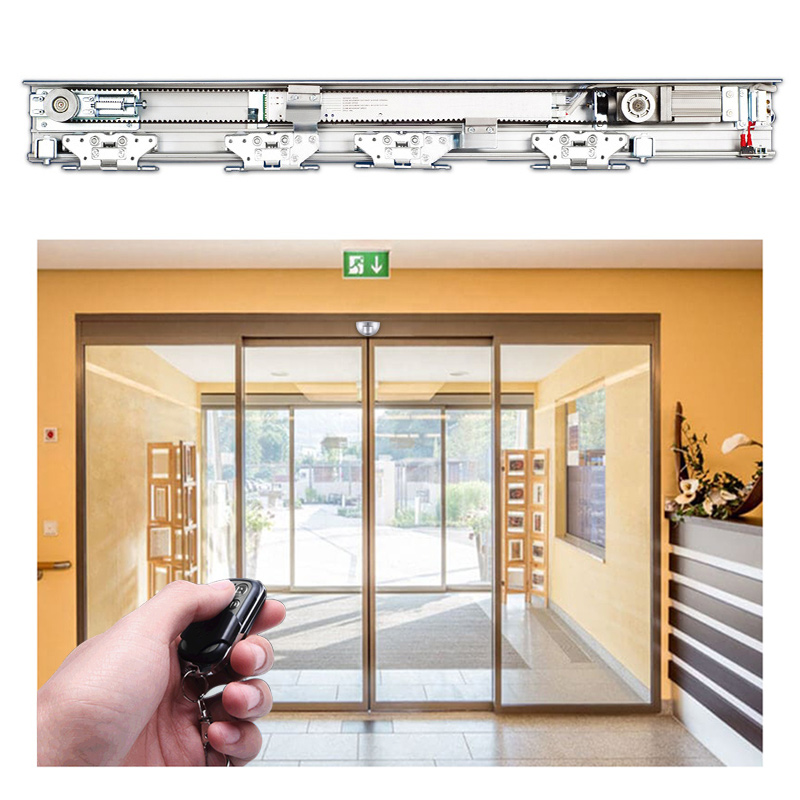

Aluminium Automatic Door Opener Sliding Mechanism Home For Frameless Door

>Mounting Type: Surface Mounting
>Power: AC90~240V, 50HZ

Brand:
S4A
Item NO.:
SM150

Inquire Now

Specifications

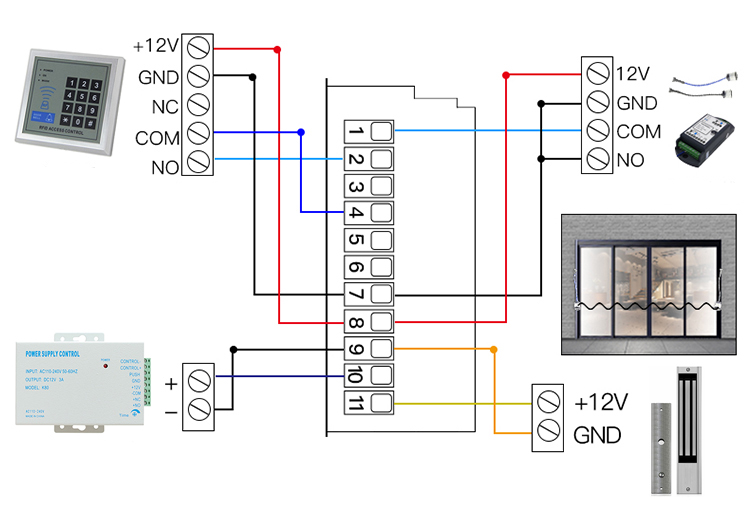

Wiring Diagram

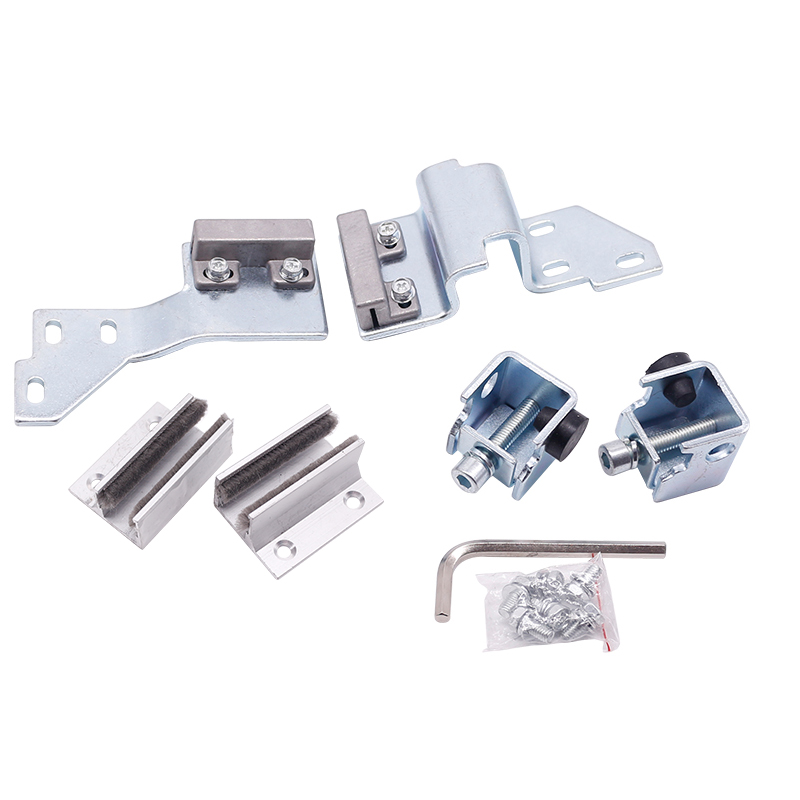

Package
Download

Model No.: SM150

Specification	Series
Door-leaf Type	Single-leaf	Double-leaf
Door-leaf Weight	Max.150Kg	Max.150Kg*2

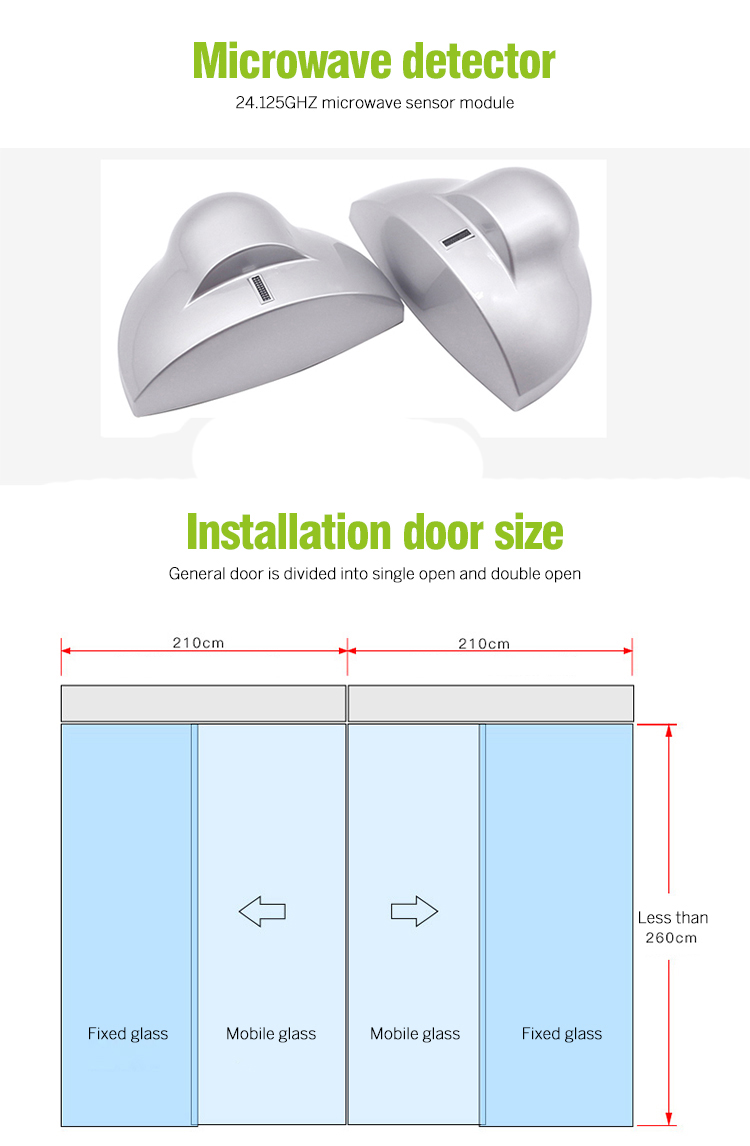

Door-leaf Width	DW=750-1600mm	DW=650-1250mm
Total Width	W=1500-3200mm	W=2600-5000mm
Mounting Type	Surface Mounting
Power	AC90~240V, 50HZ
Opening Speed	15~46cm/s (adjustable)
Closing Speed	13~46cm/s (adjustable)
Hold-Open Time	0~8S (adjustable)
Manual Push Force	<40N	<50N

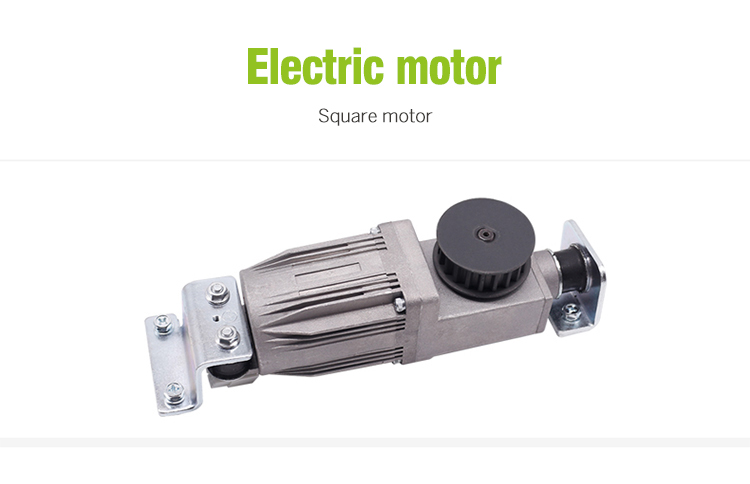

Motor	DC24V Brushless Servo Motor
Ambient Temperature	-20℃~50℃

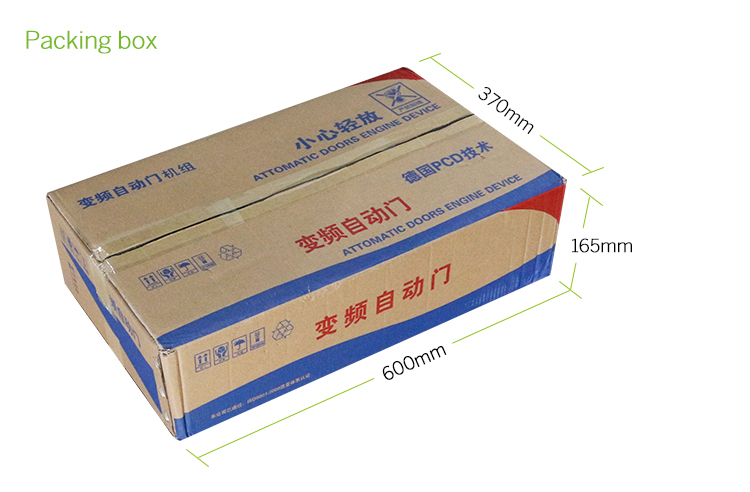

Packing box	62x33x13mm
Weight	10.58kg

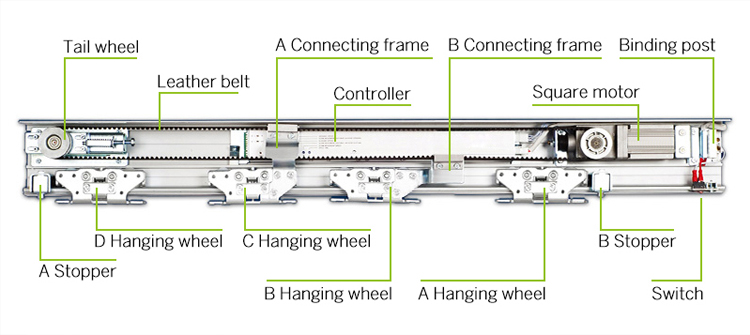

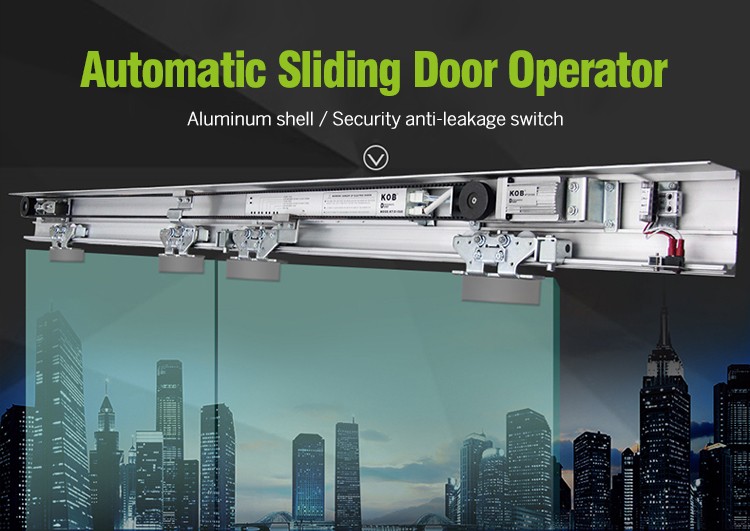

Sliding Door Automatic Opener

S4A Datasheet_Aluminium Automatic Door Opener Sliding Mechanism Home For Frameless Door

Download
