Dimension: 115x70x25mm
Brand:
S4AItem NO.:

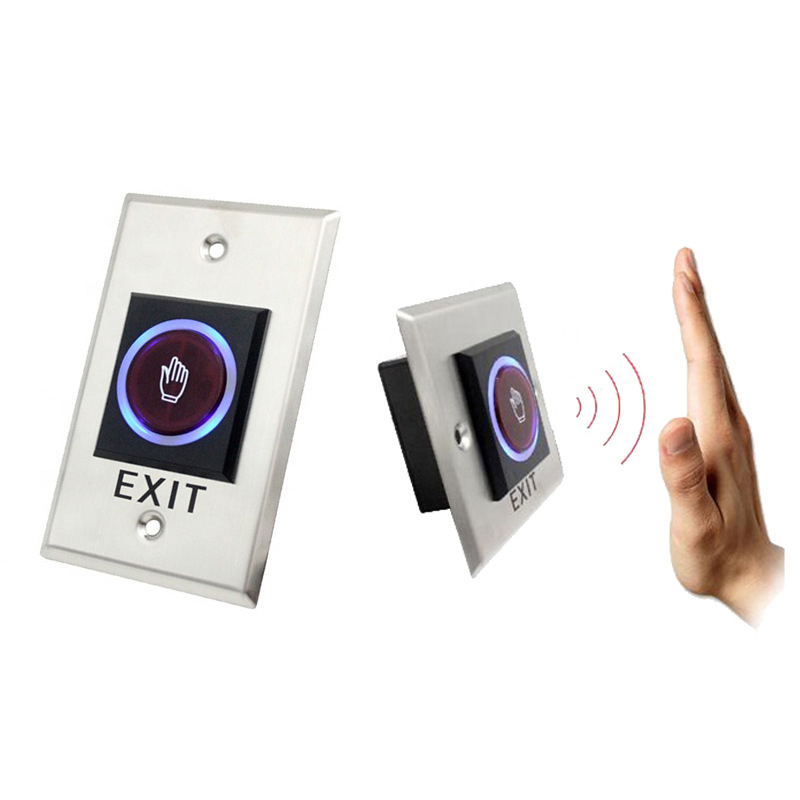

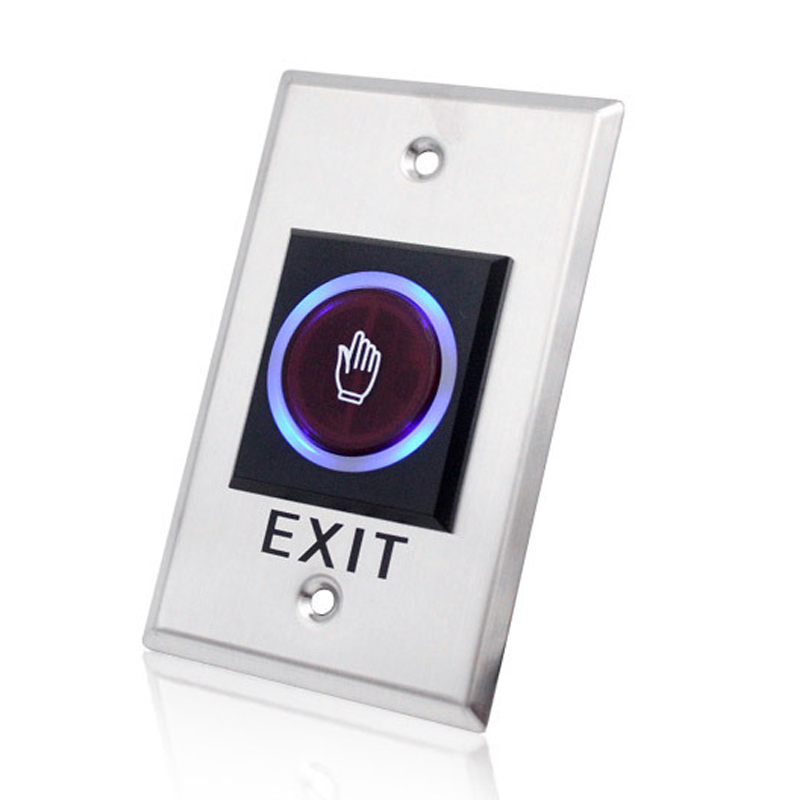

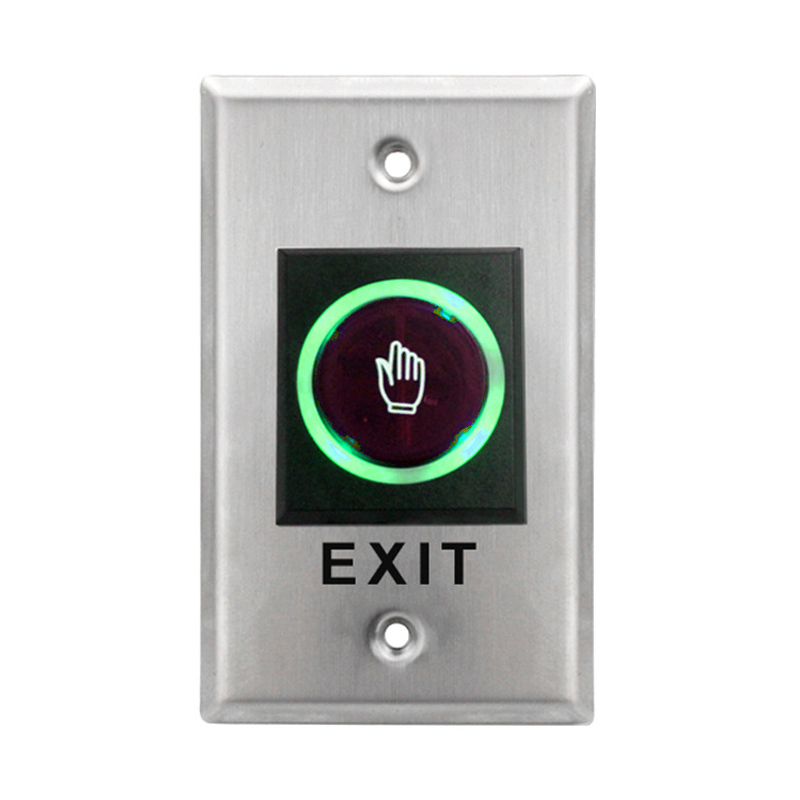

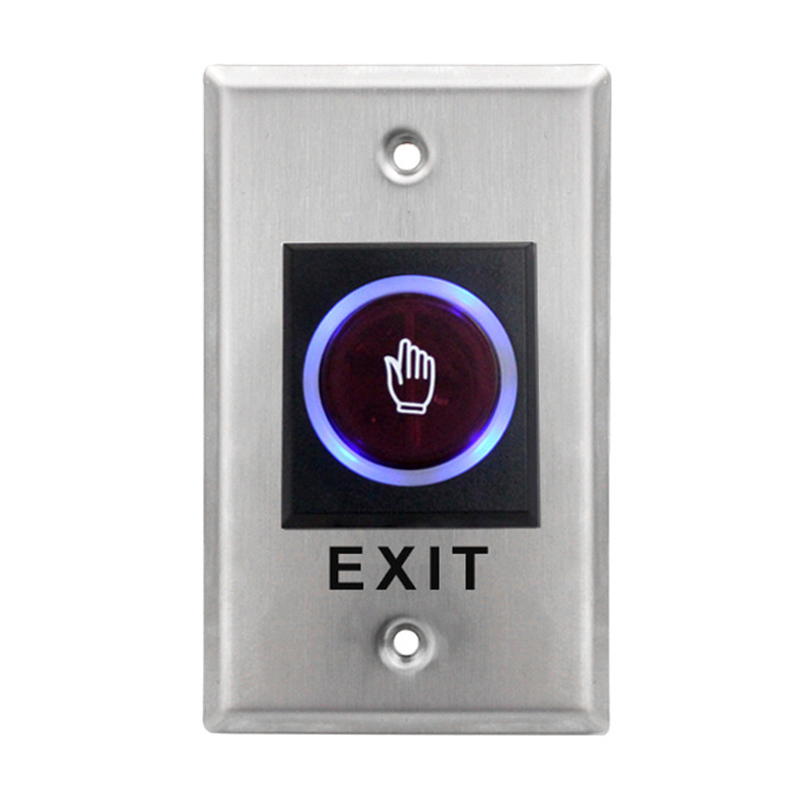

EB-16BAccess Control Door Switch Touchless Exit Button
Model No: EB-16B
Dimensions | 115 X 70 X 25mm |

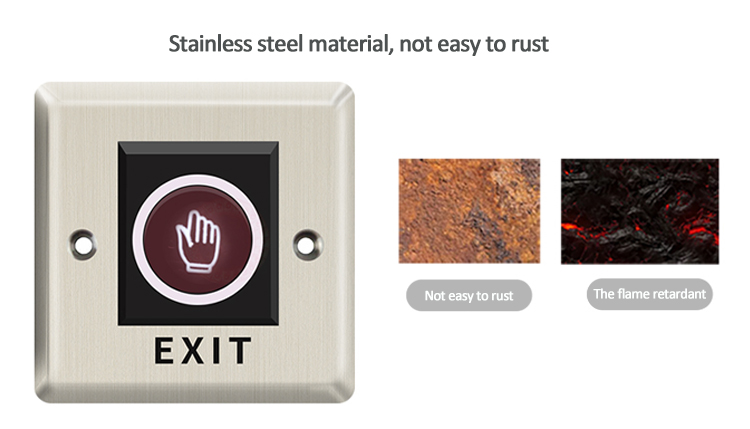

Standard Structure | Stainless steel Panel, Steel Button |
Current Rating | 3A,36VDC Max |

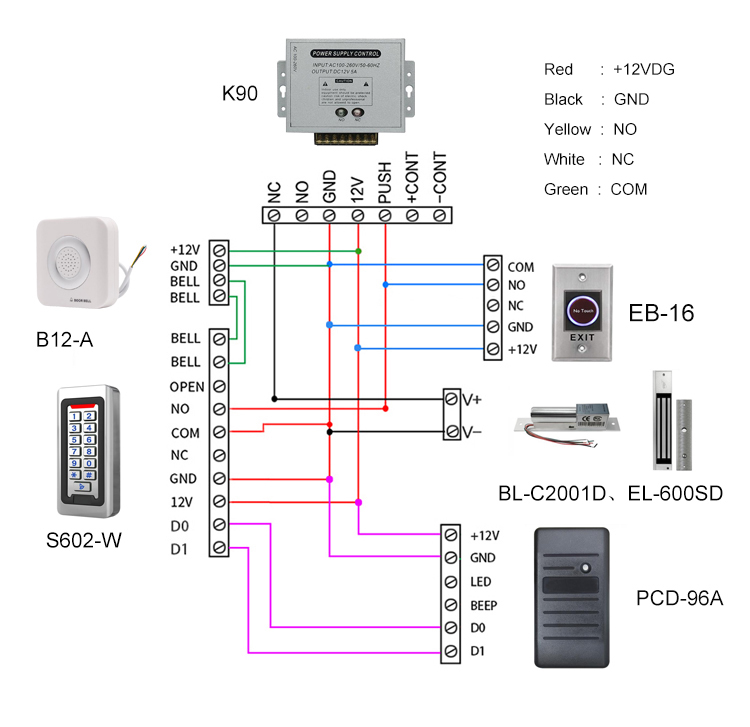

Output Contact | +12V GND NO NC COM |
Mechanical Life | 1000000 tested |
Suitable for Door | Hollow Door |
Operating temp | -10℃ ~ 55°C (14°F-131°F) |
Operating Humidity | 0-95% (non- condensing) |
Detection range | 0.1-10cm |
LED Indicator
White LED indicator | Power OFF |
Blue LED indicator | Power ON(standby) |
Red LED indicator | Power ON(sensation) |
Weight | 0.25kg |
Standard Packing | 70pcs |
Indoor Touchless Exit Button for Door Access Control with LED Light, NC,NO and COM Outputs | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
EB-16 | 125PCS | 12.1KG | 13.5KG | 54X32X39 |
Dimensions: 80x80x28mm
Dimension: 115x40mm
Dimension: 115x40mm
Dimensions: 86x86x11.5mm
Dimensions: 86x86x14mm
Dimensions: 86x86x14mm
Dimensions: 86x86x14mm
Dimensions: 86x86x14mm
