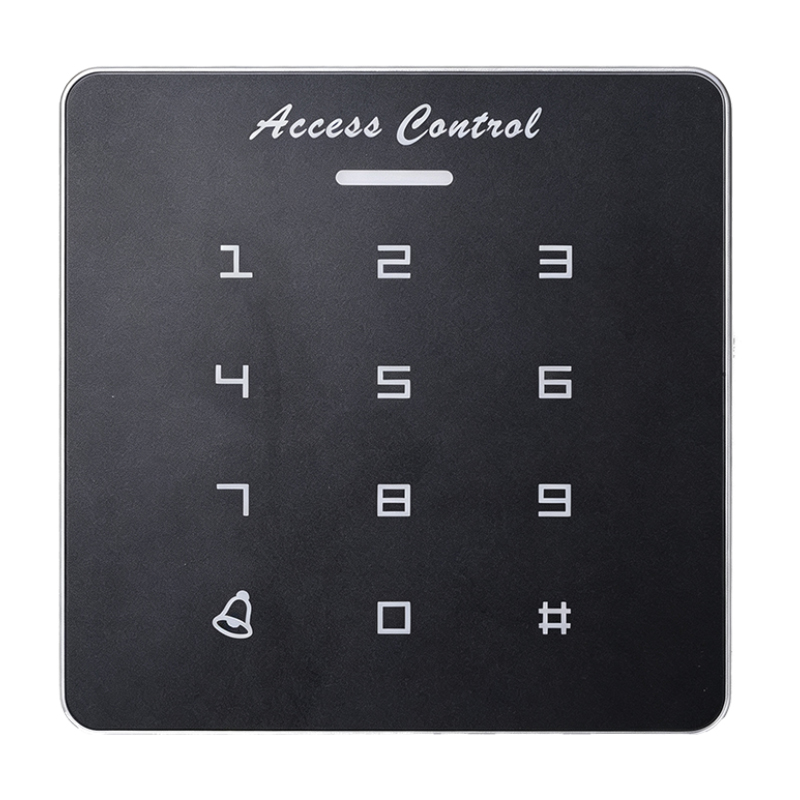

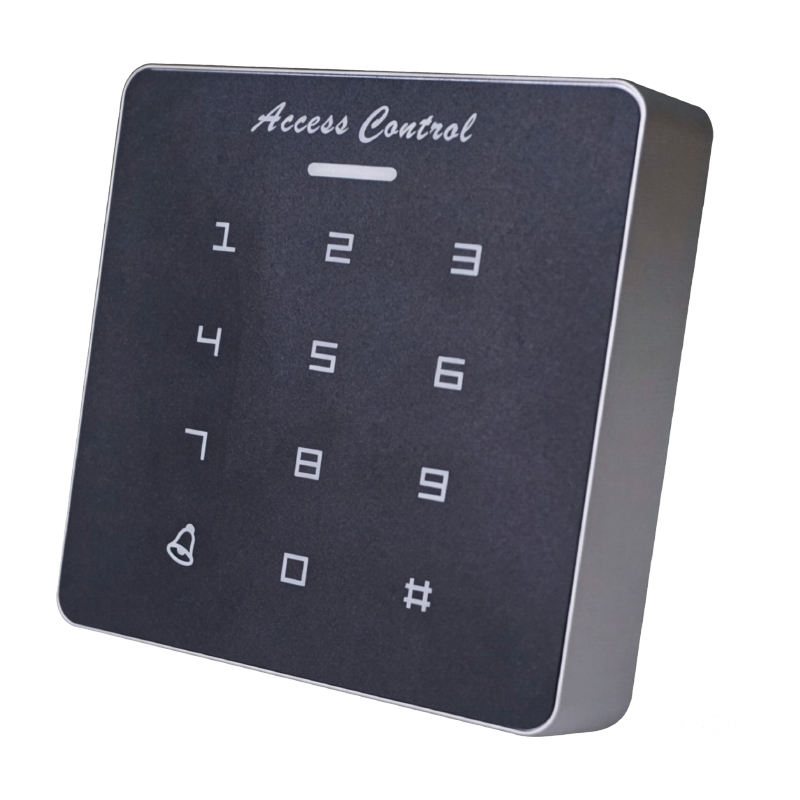

A2DA2D Standalone RFID Access Control Keypad
The A2D is a highly reliable standalone access control terminal featuring a standard square profile and a dependable physical keypad interface. Engineered for commercial and residential safety, it supports up to 6,000 ID card users for expansive user management. Equipped with flexible WG26/WG34 Wiegand input and output signals and support for external card readers, this terminal ensures optimal compatibility. Housed in a compact 86mm * 86mm * 20mm casing, the A2D is the perfect secure, efficient choice for modern offices, warehouses, and multi-tenant entryways.
Product Parameter
Parameter Descr1ption
Model
A2D
Working Voltage
DC 12V ± 10%
Working Current
< 100mA
Operating Temperature
-20°C to 60°C
Keypad Type
Physical Keypad
User Capacity
6,000 Users
Card Types
ID Card

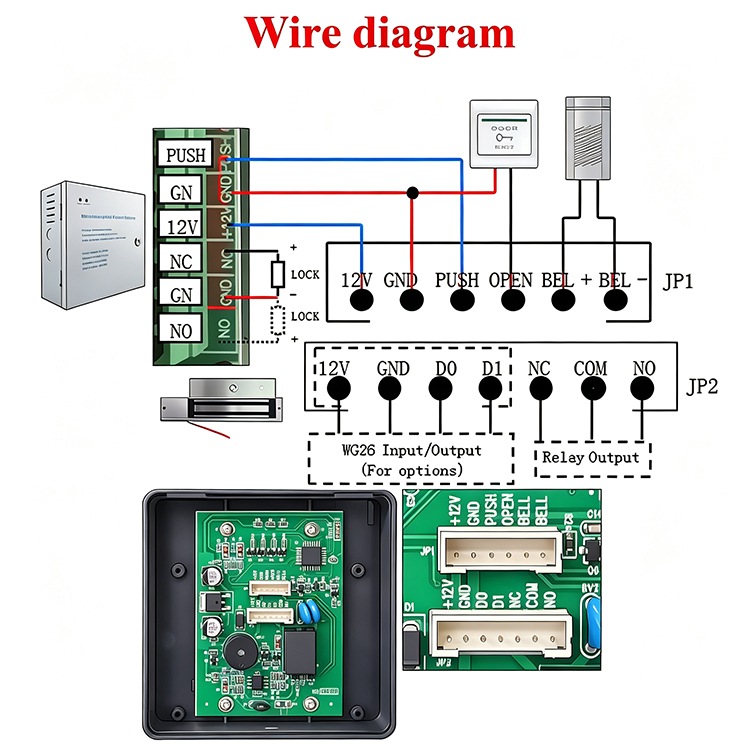

Wiegand Interface
WG26 / WG34 Input & Output
External Connectivity
Supports External Card Reader
Reading Distance
1cm - 10cm

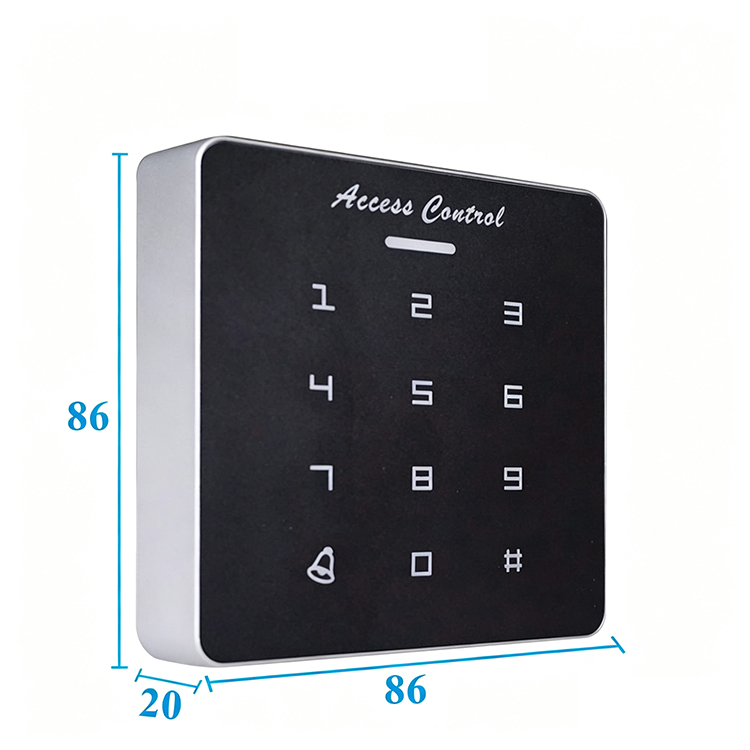

Dimensions
86mm * 86mm * 20mm
> Waterproof conforms to IP66 (Wireless Keypad)> Communication frequency: 433MHz> 600 PIN/card users> Communication distance: 50m Max> Tri-color LED status display
> Card type: EM Card > Access Control Keypad Containing 800 users > 800 cards, a 'Personal PIN' goes alone with each card > Card Reading Distance: 5~15cm > Voltage: 12VDC
> Card type: EM Card> Capacity: 2000 users> Working Voltage: DC12-24V> Card Reading Distance: 1~3cm> Dimension: 114x75x16mm
> Card type: EM Card> Storage: 1000users> Operating voltage: DC 12V±10% > Card reading distance: 1~5cm> Open Mode: Card or Access PIN
> Card type: EM Card> User Capacity: 1000 users (Standard)> User Capacity: 6000 users (Optional)> Read 125KHz EM Card (Standard)> Read 13.56MHz Mifare Card (Optional)> Open Mode: Card or PIN> Card reading distance: 1~5cm
> Card type: EM Card> Storage: 1000users> Operating voltage: DC 12V±10% > Card reading distance: 1~15cm> Open Mode: Card or Access PIN
> Card type: EM Card> ABS single door access control
> Card type: EM Card > Multi-function standalone device can be used as the WG26 card reader > Capacity: 2000 card users, 2000 PIN users > Three-door open methods: card, code, card+code > Backlit keypad: Can operate keyboard in dark nigh
