Signal Output: door open or door close state detection
with output point, NC/COM
Brand:
S4AItem NO.:

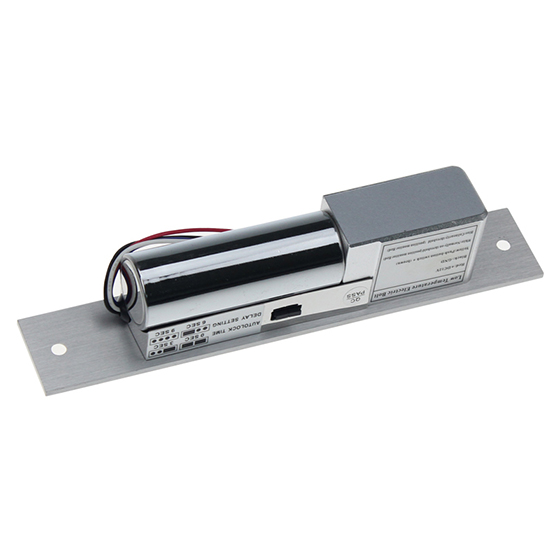

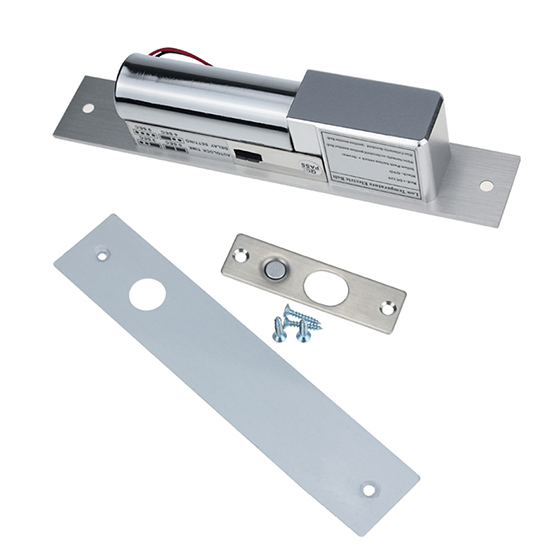

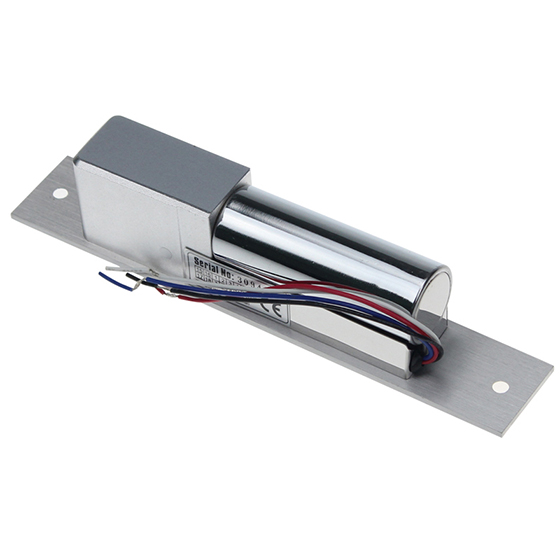

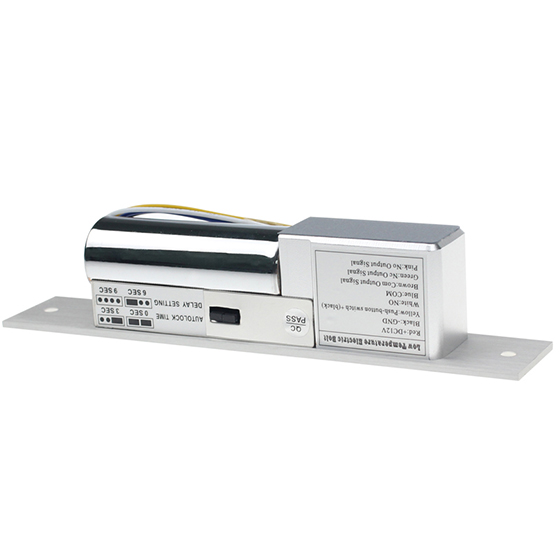

BL-C2001D5 Line Electric Bolt Lock For Fully Frameless Glass Door
Model No.: BL-C2001D
I. Fail-Safe: Adjustable fail-safe (Power to lock) Adjustable to fail-safe (Power to lock) for public places.
Face Plate | 205Lx35WX40H(mm) |
Strike plate | 90Lx25Wx2H(mm) |
Bolt | 16mm(Throw) x 16mm(Diameter) |
II. Built-in oval cylinder as unlocking the device
Use of oval cylinder to unlock when power cut occurred or during emergency
Built-in photo couplers door open push button input contact. The door will lock again automatically when door is not open within 9 seconds
III. Bolt lock Suitable For Wooden Door, Glass Door, Metal Door, Glass Door
Fail-Safe | Power to lock |
Voltage | DC12V |
Start Current | 960mA |
Standby Current | 130mA |
Face place material | High Aluminum,Garrulous Line |
Finished |

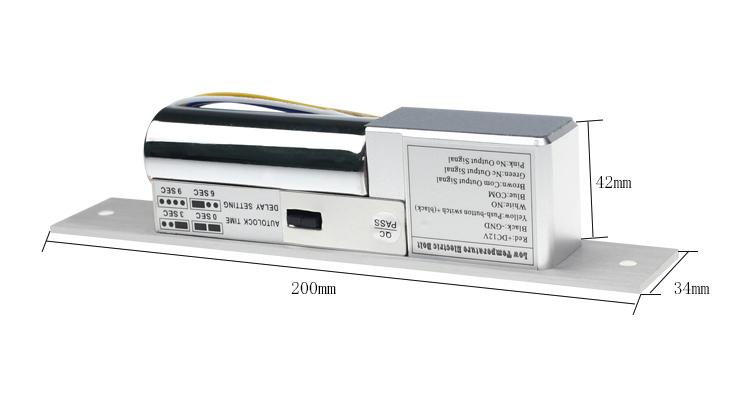

5 Line Electric Bolt Lock with Door Feedback and Timer | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
BL-C2001D | 50PCS | 21.5KG | 22KG | 43*24*43cm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
