4 doors TCP/IP Network Access Control Panel Wiegand Controller with remote open

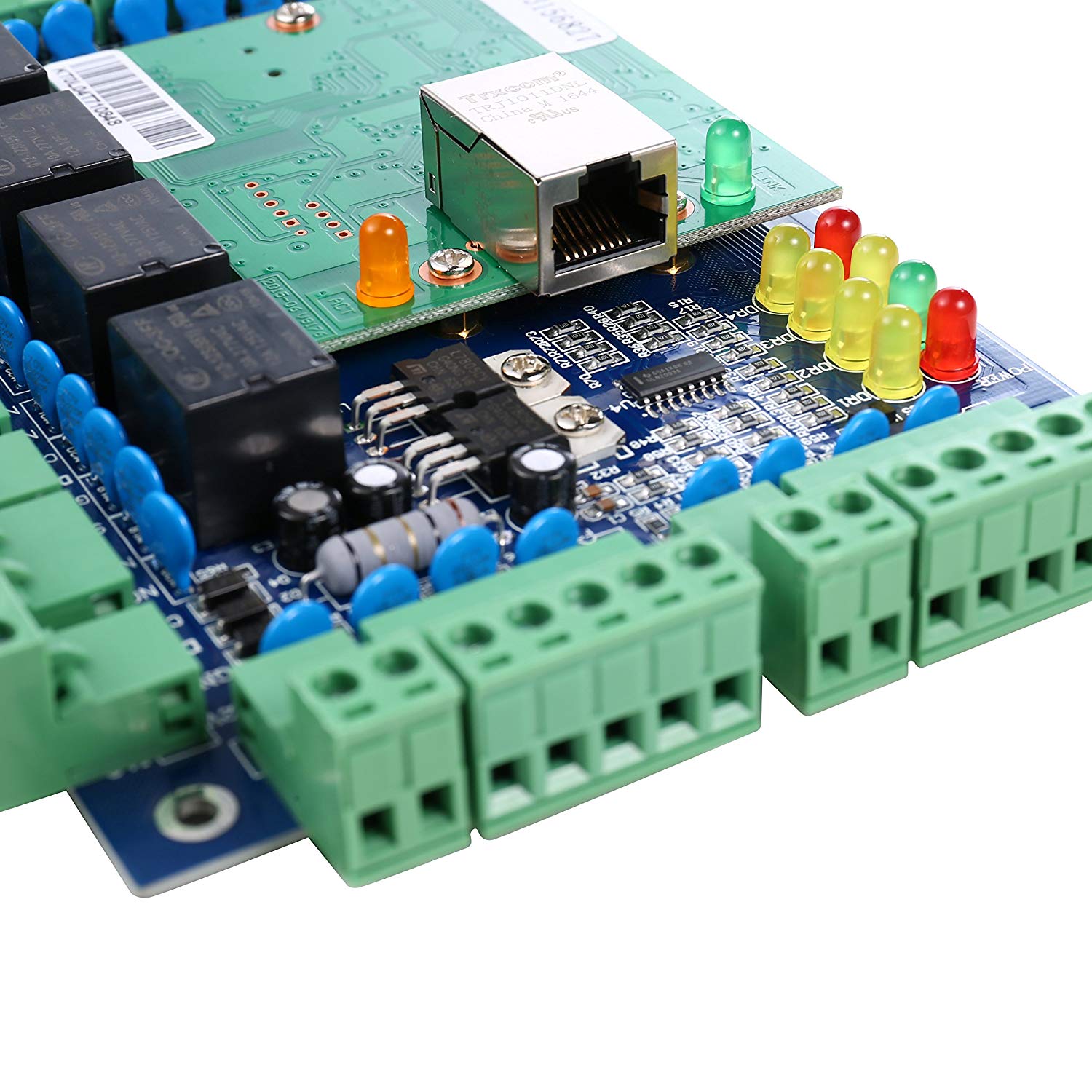

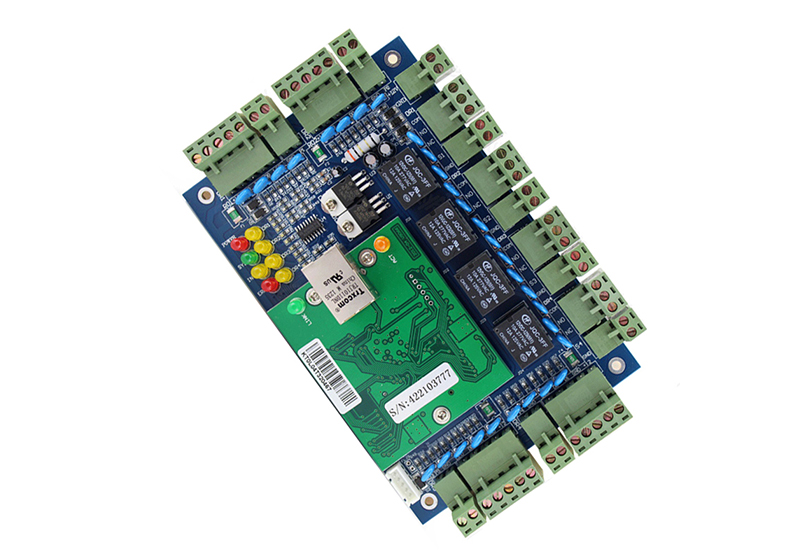

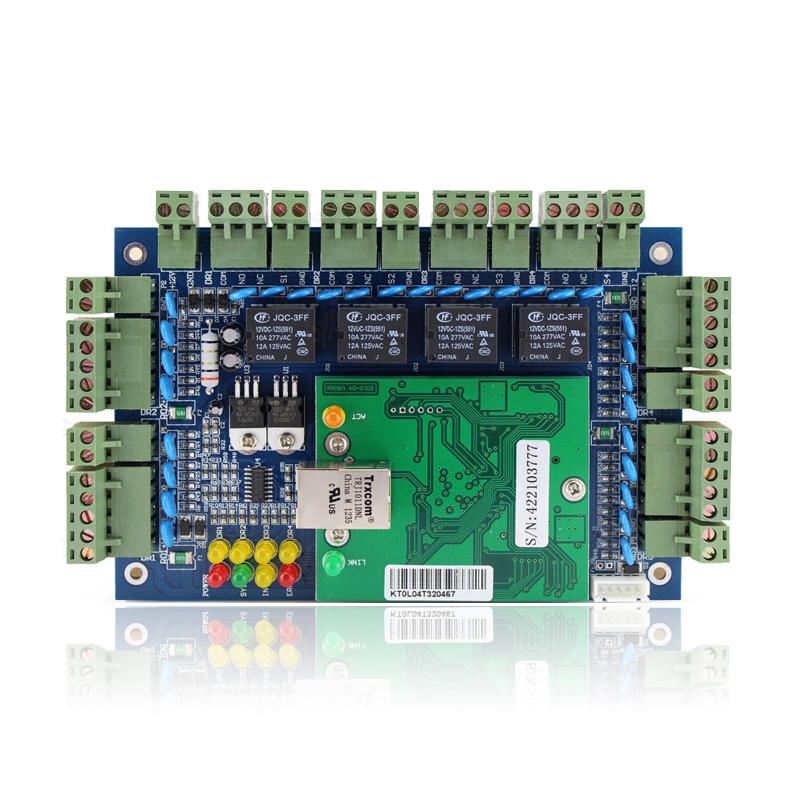

Four-door Network access control board built-in TCP/IP


Support APP/4G/Web-server with free software.

Connect 4pcs RFID access reader and 4pcs exit push button.


  • Brand:

    S4A
  • Item NO.:

    ACB-004
  • Specifications

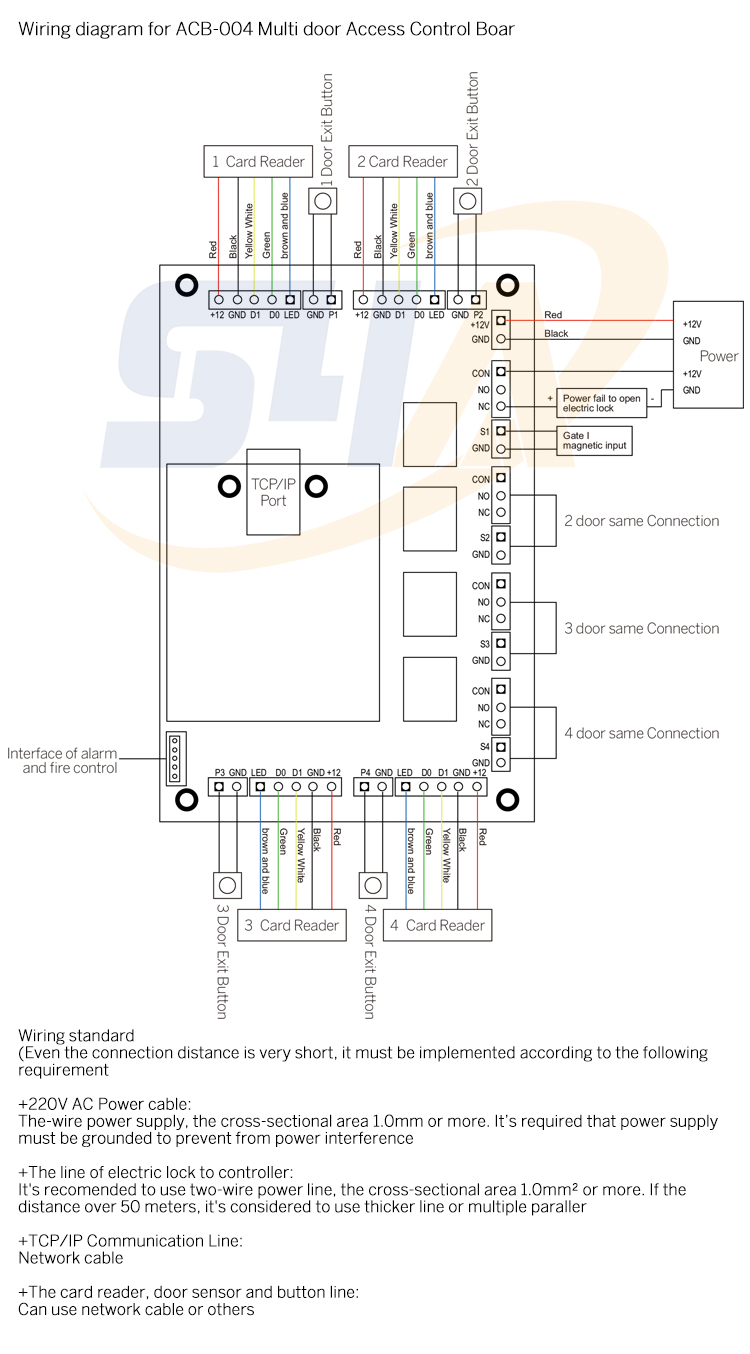

  • Wiring Diagram
  • Package
  • Download

TCP/IP Network Four-Door Wiegand Access Controller Panel/Board in Access Control System

Model No.: ACB-004


Why is Access Control System important?


Access control systems protect against breaches of privacy, cyberattacks, and data theft. Access control can be used to monitor who or what can view or use any given document, asset, or resource. The biggest goal of an access control system is to provide a level of security that minimizes risk to any business.

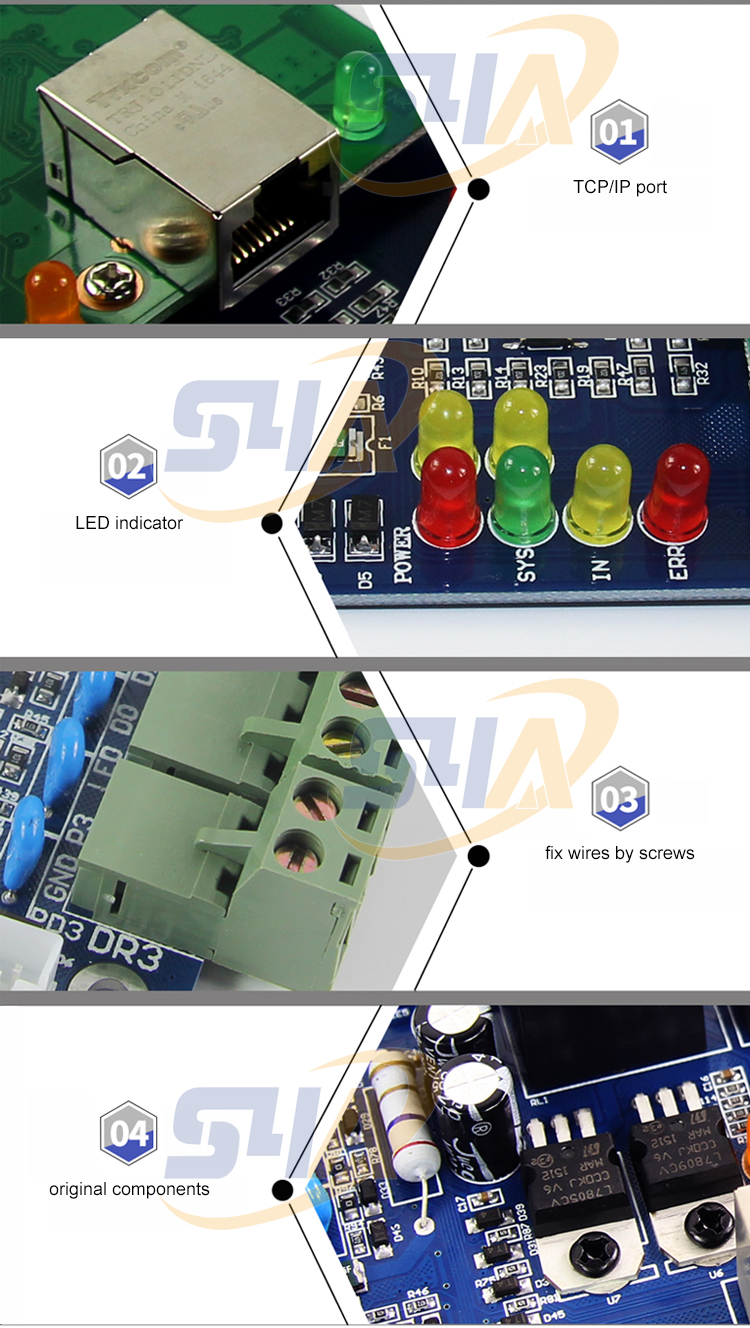

Network Access Control Panel

Parameter

Single Door Control Panel

Multi Door (2) Control Panel

Multi Door (4) Control Panel

Model #

ACB-001

ACB-002

ACB-004

Communication

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

Description

Control 1 door, get in and out the door by swiping the card, or get in by swiping the card and get out the door by button

Control 2 doors, get in and out the door by swiping the card or get in by swiping the board and get out the door by button

Control 4 doors, get in the door by swiping the card, and get outdoor by button

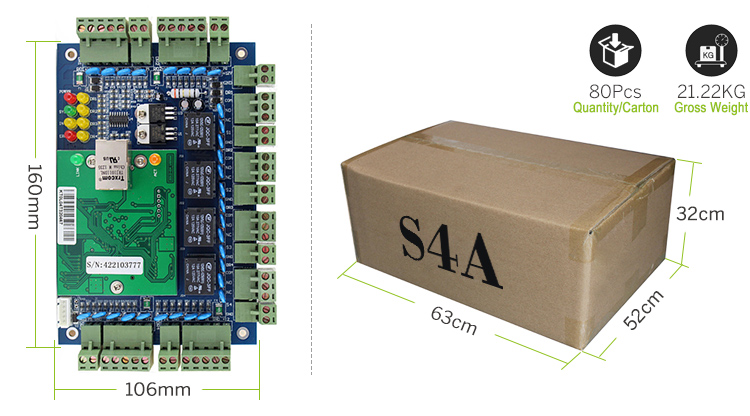

Size of PCB board

160mm *106mm

160mm *106mm

218mm *106mm

Size of Case

273mm*228mm*65mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)

Quantity of Readers

2pcs

4pcs

4 pcs

Door Controlled

1door

2 Doors

4 Doors

Door opening time extending setting

1-600 seconds(adjustable)

Max q ' ty of controller

No limit

Network Access Control Panel

Network Access Control Panel

4 doors TCP/IP Network Access Control Panel Wiegand Controller with remote open

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

ACB-004

80pcs

20.9KG

21.22KG

63x52x32cm




Network Access Control Panel

S4A ACB-004 User Manual_TCP/IP Network Four Door Wiegand Access Controller Panel/Board in Access Control System
