>Dynamic face recognition
>Intelligent attendance system
>High-end smart chip
>Various ways to network
>4.3-inch LCD touch screen
>2 million pixel camera
Brand:
S4AItem NO.:

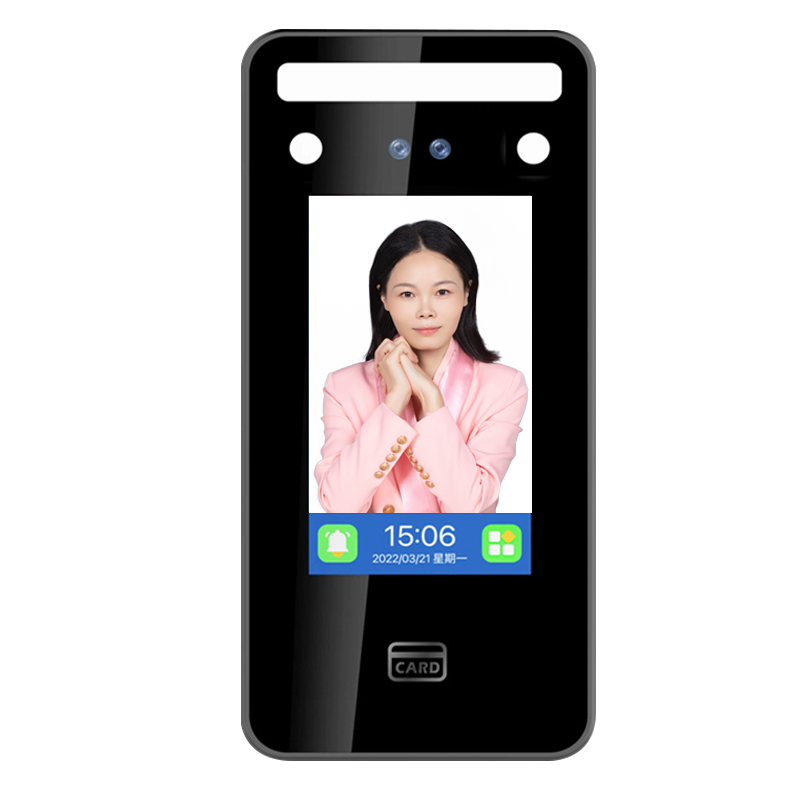

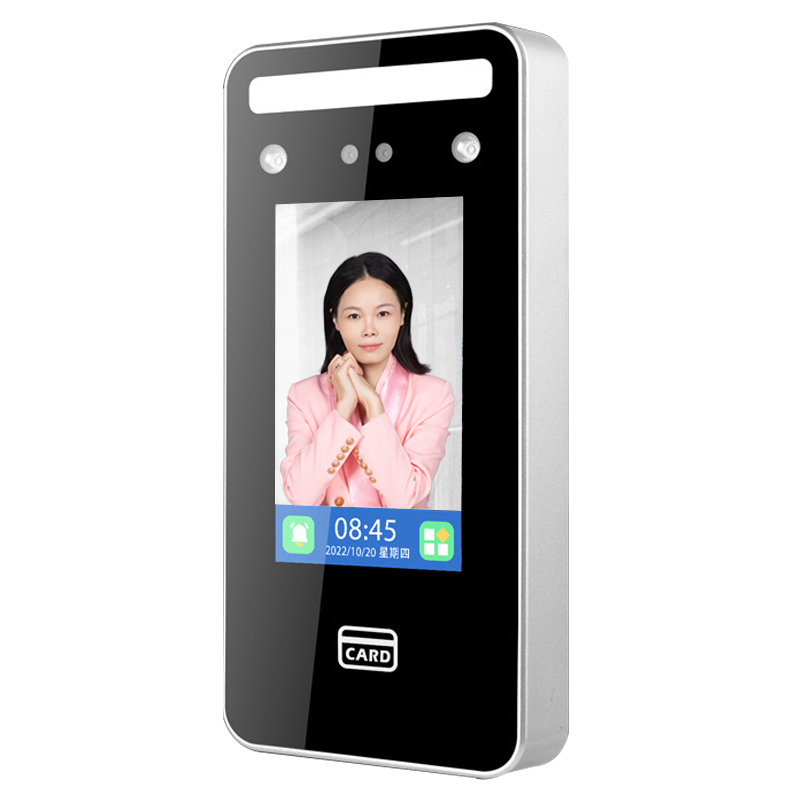

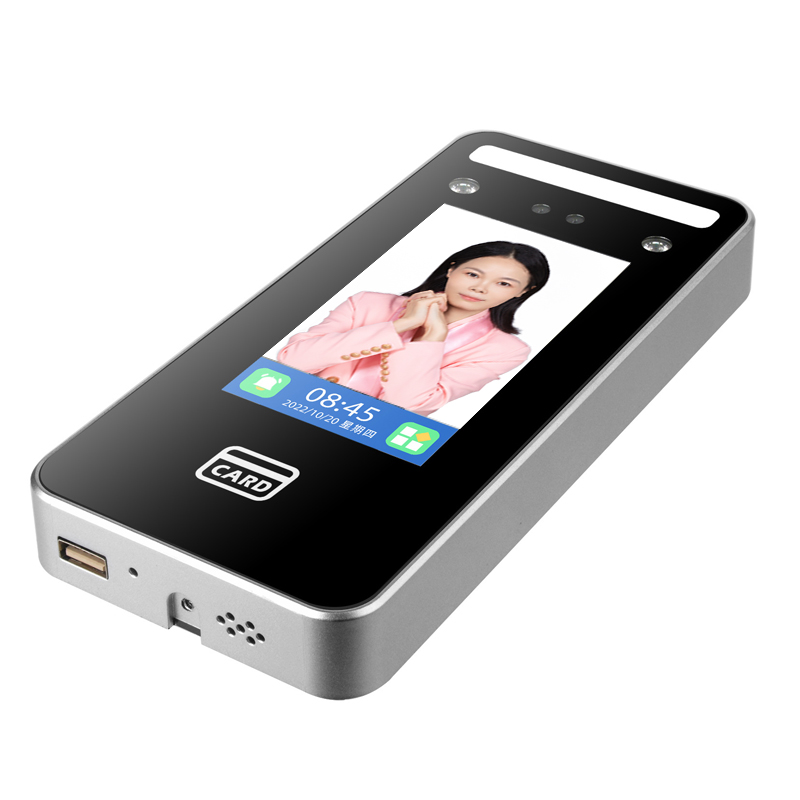

S1000K4.3-inch intelligent face recognition access control system all-in-one office face recognition punch-in system
Model No.:S1000K
|
Display |
4.3-inch LCD touch screen |
|
Camera |
Binocular live 2-megapixel dynamic camera |
|
Face capacity |
2000 |
|
Card swiping capacity |
2000 cards |
|
User capacity |
8000 |
|
Wiegand signal input |
WG34 (can be connected to an external reader) |
|
Wiegand signal output |
WG34 ( RFID Access Reader) |
|
Product size |
191x90x22mm |
|
Recognition speed |
0.1 seconds |
|
Operating system |
Al intelligent control system |
|
Opening method |
face/password/swipe card |
|
Password capacity |
2000 |
|
Record capacity |
100,000 |
|
Identification function |
department + job number + name |
|
Magnetic card type |
IC card |
|
Working temperature |
-10°C~60°C. |
|
Language display |
Chinese/English convertible |
|
Working power supply |
DC: voltage 12v 3A/5A current: 210mA/350mA |
|
Recognition distance |
0.5~3 meters for dynamic face recognition, 0.5~1.5 meters for binocular live detection |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
