> Without indicator lights
> Holding Force: 280KG (600Lbs)
> Lock Size: 250Lx48.5Wx25H(mm)
> Current Draw: 12V/500mA 24V/250mA
Brand:
S4AItem NO.:
EL-600280KG magnetic suction flat door electrical magnetic lock
Model No.: EL-600
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
EL-600 | Without indicator lights |
EL-600S | With LED (Red only) |
EL-600SD | LED, door sensor |
EL-600ST | LED, door sensor, Time delay |
EL-600SZ | LED, door sensor, Buzzer |
Lock size | 250Lx48.5Wx25H(mm) |
Plate | 180Lx38Wx11H(mm) |
Holding Force | 280kg (600Lbs) |
Voltage | DC12V or DC24V (adjustable) |
Current Draw | 12V/500mA 24V/250mA |
Signal Output | Dry Contact, Max Rating of Contact Current 3A |
Surface Temp | ≤20°C |
Operating Temp | -10°C ~ 55°C (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 2kg |
Standard Packing | 10pcs |

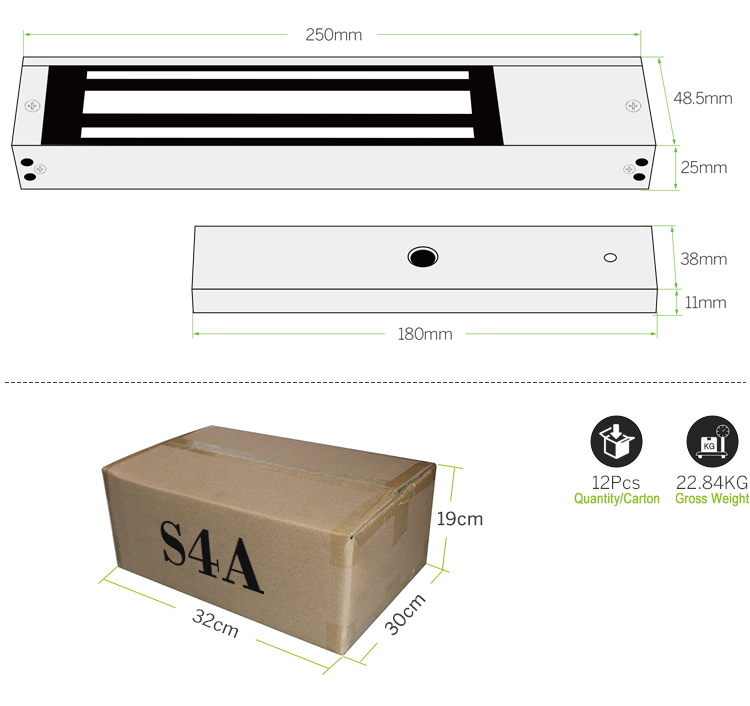

Electric Magnetic Lock for Swing Gate | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-600 | 250x48.5x25mm | 12pcs | 22.84KG | 32x30x19cm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
