> Without Signal Output
> Voltage: DC12V or DC24V
> Holding Force: 180KG(350Lbs)
> Lock Size: 170Lx41Wx21H(mm)
> Current Draw: 12V/300mA 24V/150mA
Brand:
S4AItem NO.:
EL-350Single Door 180KG Electromagnetic Lock
Model No.: EL-350
What is a Maglock?

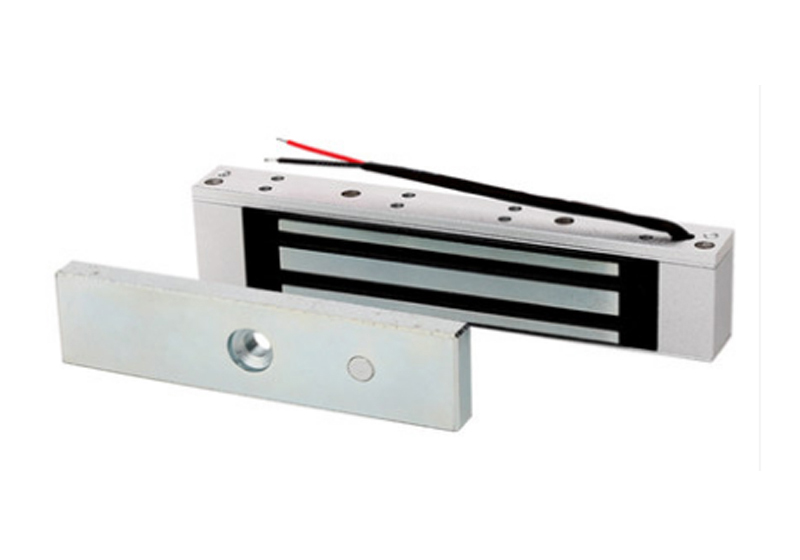

A maglock is an electrified locking device that uses low-voltage power to keep an entrance secure. Also referred to as an electromagnetic lock or magnetic lock, they consist of an electromagnet and an armature plate. The electromagnet mounts to the door frame, and gets wired back to a power supply, while the armature plate mounts to the door.
EL-350 | Without Signal Output |
EL-350ST | With Signal Output |

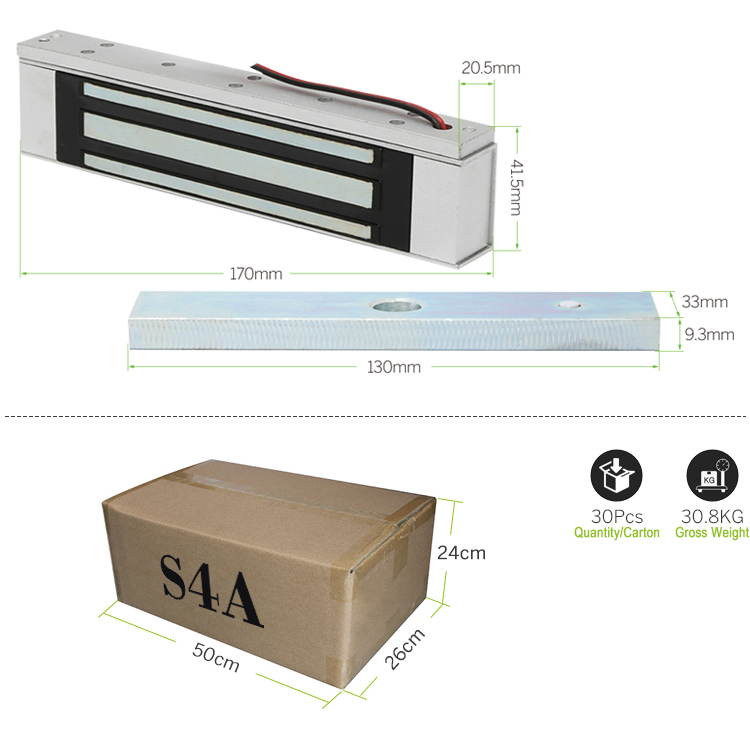

Lock Size | 170Lx41.5Wx20.5H(mm) |
Armature plate | 130Lx33Wx9.3H(mm) |
Holding Force | 180KG(350Lbs) |
Voltage | DC12V or DC24V (24V need to customize) |
Current Draw | 12V/280mA 24V/150mA |
Signal Output | Pls see EL-350TS |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55℃ (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 1.2kg |
Standard Packing | 20pcs |
280kg 600lbs 12V Glass Door Lock System Electromagnetic Door Lock with Signal Buzzer Electric Magnetic Lock | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-350 | 170x41.5x20.5mm | 30pcs | 30.8KG | 50x26x24cm |
EL-350ST | 30pcs | 30.8KG | ||

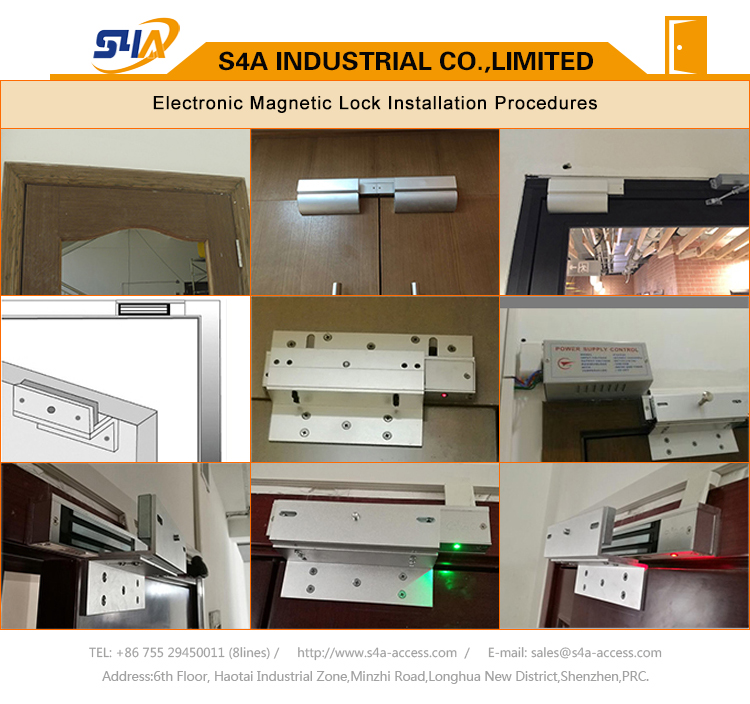

S4A Instruction_EL-350 Magnetic Lock for Interior Doors
EL-350D (Without Signal Output)> Voltage: DC12V and DC24V (adjustable)> Current Draw: 12V/300mAx2 24V/150mAx2> Lock Size: 340Lx41Wx21H(mm)> Armature plate: 130Lx33Wx9.3H(mm)> Holding force: 180KGx2 (350lbsx2)
Fine iron electro plating> Holding force: 220lbs (110KG)> Voltage: 12V or 24V
> Without Signal Output> Voltage: DC12V or DC24V> Holding Force: 180KG(350Lbs)> Lock Size: 170Lx41Wx21H(mm)> Current Draw: 12V/300mA 24V/150mA
> With Signal Output (need to customized)> Voltage: DC12V or DC24V> Holding Force: 180KG(350Lbs)> Lock Size: 170Lx41Wx21H(mm)> Current Draw: 12V/300mA 24V/150mA
> Voltage: DC12V or DC24V> Holding Force: 180KG(350Lbs)> Lock Size: 200Lx41.7Wx21.7H(mm)> Current Draw: 12V/300mA 24V/150mA
> Without door position detection output> Voltage: DC12V or DC24V> Holding Force: 180kg(350Lbs)> Current Draw: 12V/480mA 24V/240mA
> With Signal output> Voltage: DC12V or DC24V> Holding Force: 180kg(350Lbs)> Current Draw: 12V/480mA 24V/240mA
EL-350DS (With LED)> Voltage: DC12V and DC24V (adjustable)> Current Draw: 12V/300mAx2 24V/150mAx2> Lock Size: 340Lx41Wx21H(mm)> Armature plate: 130Lx33Wx9.3H(mm)> Holding force: 180KGx2 (350lbsx2)
