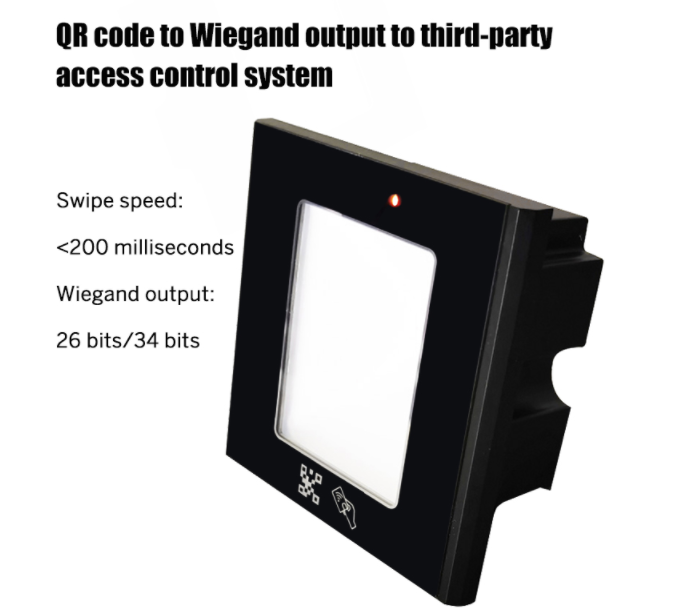

>Swipe speed:<200 milliseconds
>Wiegand output: 26 bits/34 bits
>Software version: V7.107 or above
>Hardware driver: V8.92 or above
>Output power: DC12v 10OomA (power supply lock and card reader)
Brand:
S4AItem NO.:

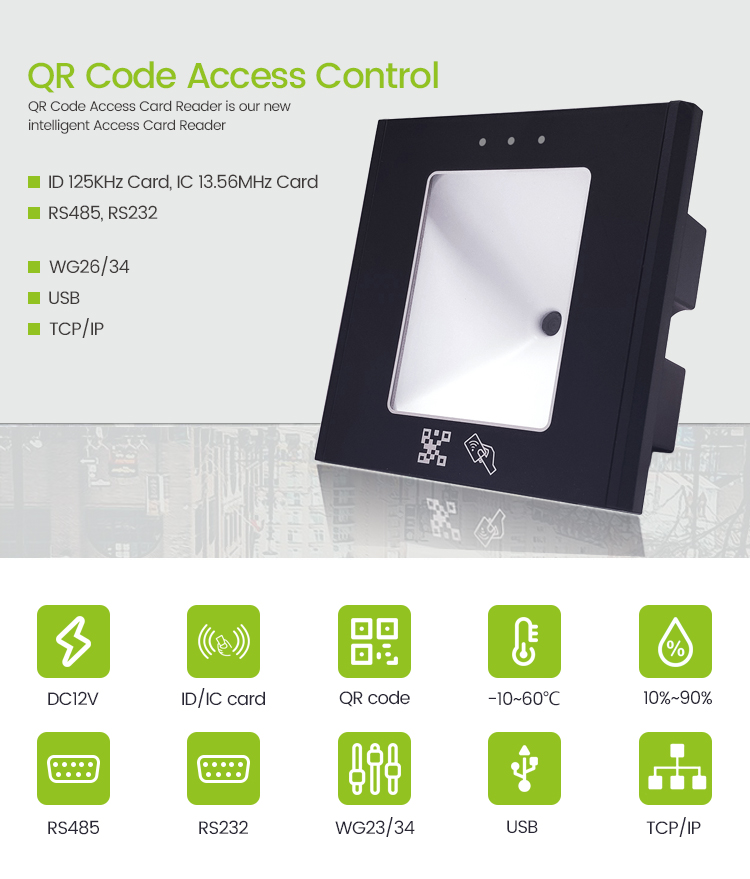

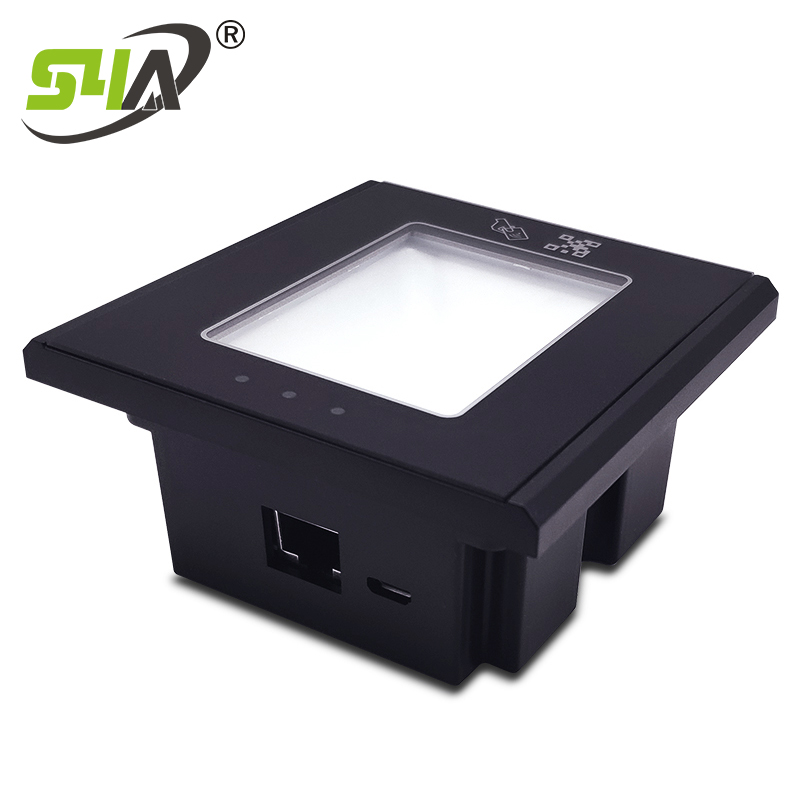

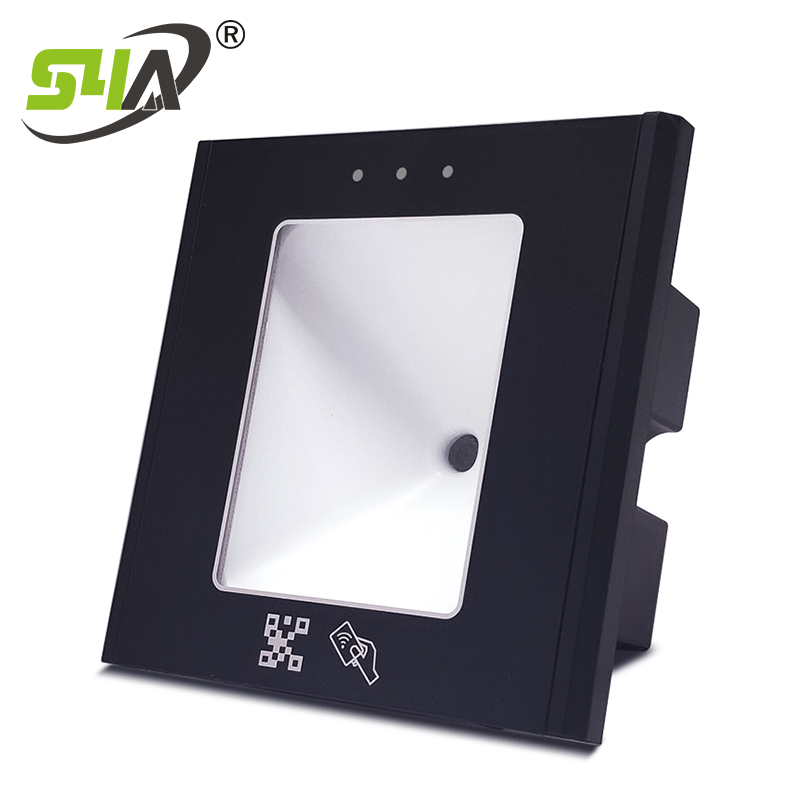

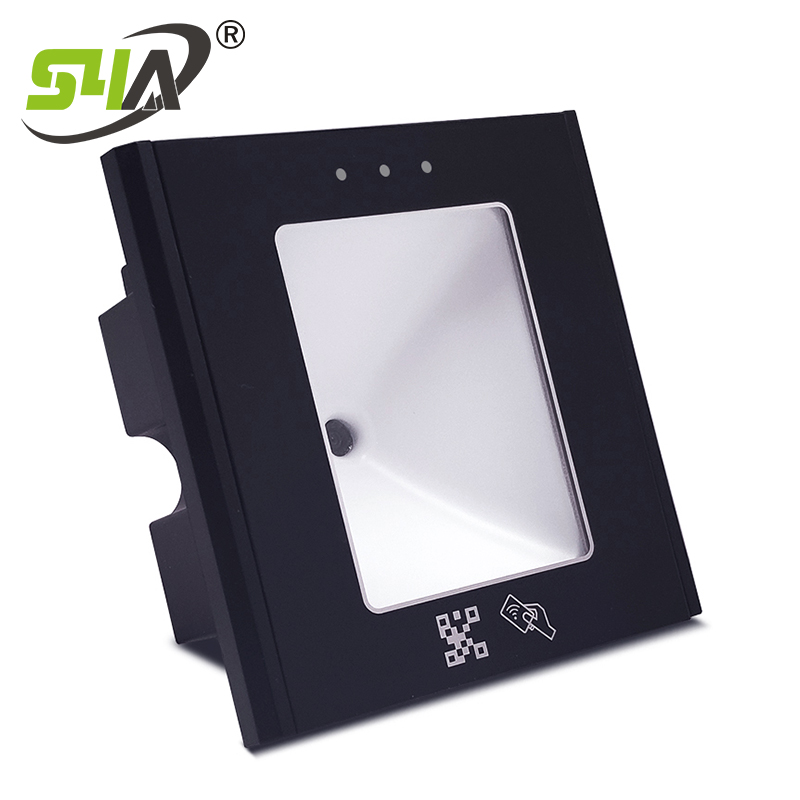

QR-86DAccess controller Dynamic QR code reader with Wiegand output
Model No.: QR-86D
Functions and features
1. Wiegand signal QR code, simple wiring and long distance (up to 100 meters);
2. The mobile phone number is used as the card number, which is more convenient to set;
3. The WeChat applet generates a new dynamic QR code every 1 minute;
4. A screenshot of the QR code can be shared with visitors via WeChat and QQ with one click;
5. The shared QR code is valid for a short time;
6. The two-dimensional code opening permission can be flexibly set through the access control software: which phones can be opened and which doors can be opened during which time periods;
7. There will be records and inquiries when opening the door with the QR code!
Dynamic QR codes have a short URL embedded in the code, which can redirect the user to the destination website URL. The destination URL can be changed after the QR code has been generated, while the short URL embedded in the code remains the same.
Volume | 86*86*42mm |
Material | PC material |
Reading window | tempered glass |

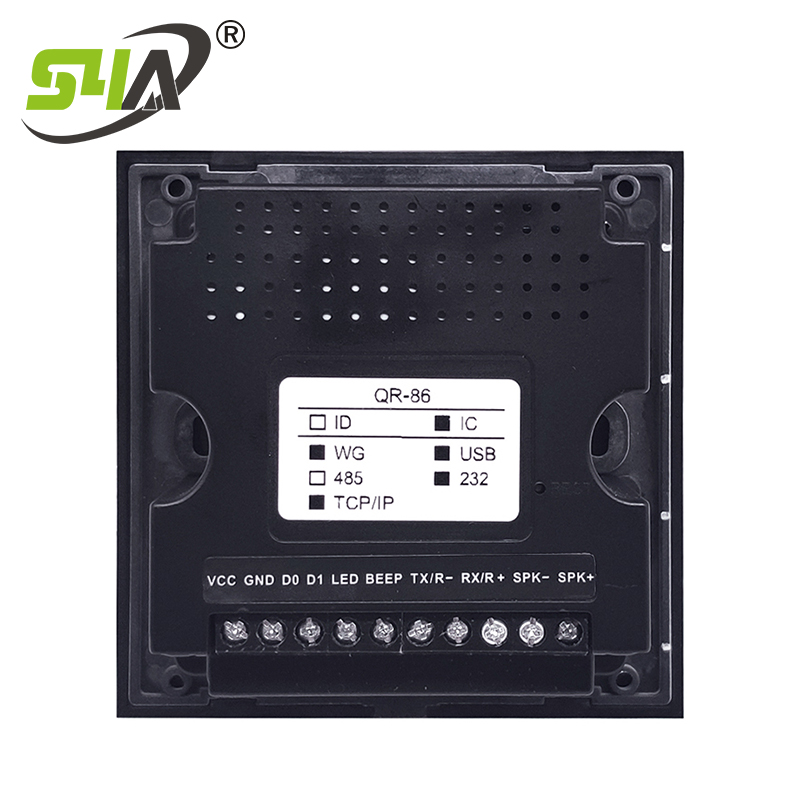

System interface | Wiegand, RS485, RS232, USB |
Decoding support | QR, one-dimensional code |
Working voltage | Support 4-15V wide voltage input |
Working current | 800mA |
Reading speed | <200ms |
Reading distance | 0-20CM |
Scan code features | automatic induction, buzzer prompt |
Light source | Built-in LED light source, anti-glare interference |
Card reading distance | 3-6CM |
Operating system | Windows (xp 7810), Linux |

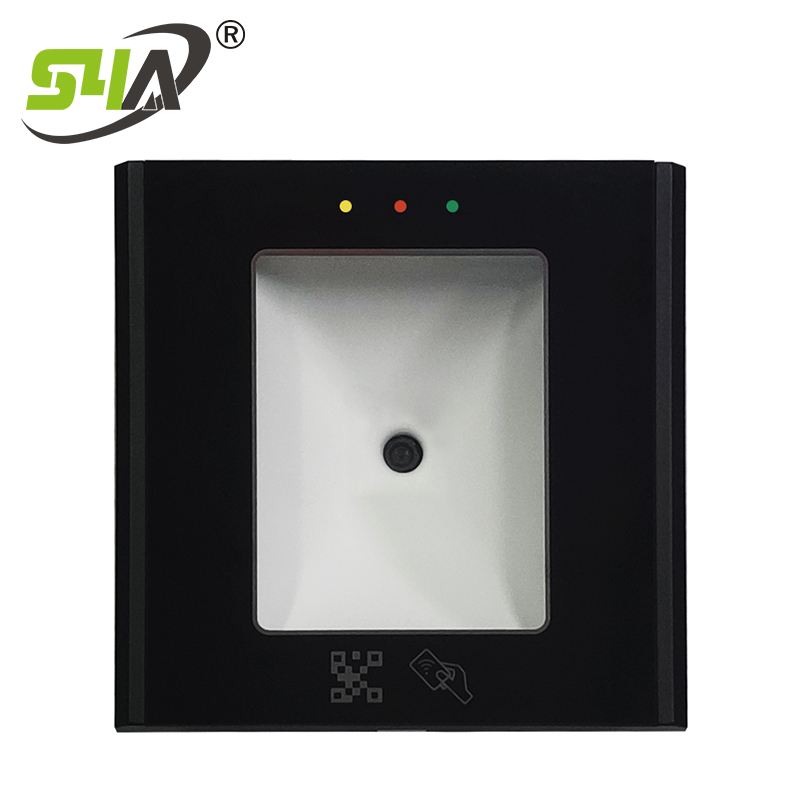

Indicating status light | red work light, green feedback light, emerald green network light |
Card reader type | non-contact IC card, ID card |
26 bits/34 bits Access Controller Dynamic QR Code Reader | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
QR-86D | 100PCS | 17KG | 17.5KG | 35x16x25cm |
S4A Datesheet_Access Controller Dynamic QR Code Reader With Wiegand Output
