>Fail-Safe: Power to lock
>Voltage: DC12V
Brand:
S4AItem NO.:

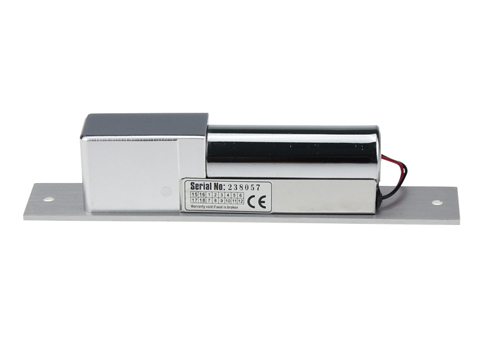

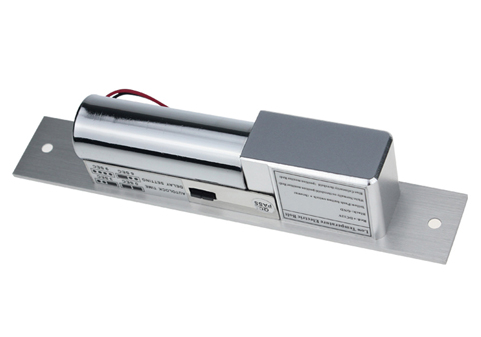

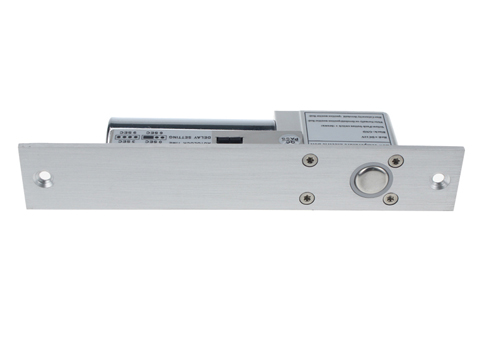

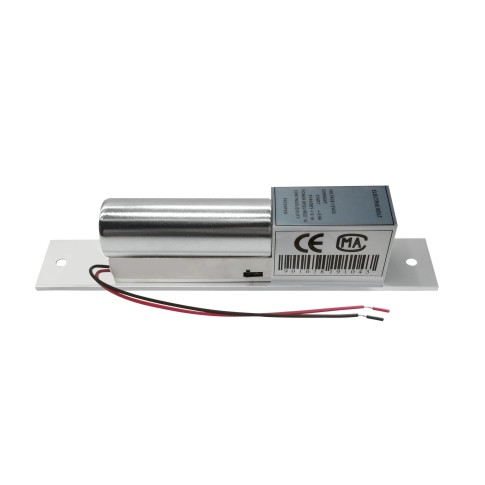

BL-C2001B2 Wire High Strength Electric Bolt Lock with Low-temperature
Model No.: BL-C2001B
I. Fail-Safe: the power to lock
Face Plate | 205Lx35WX40H(mm) |
Strike plate | 90Lx25Wx2H(mm) |
Bolt | 16mm(Throw) x 16mm(Diameter) |
II Bolt lock Suitable For Wooden Door, Metal Door, Glass Door
Fail-Safe | Power to lock |
Voltage | DC12V |
Start Current | 960mA |
Standby Current | 130mA |
Face place material | High Aluminum, Garrulous Line |
Finished |
III.BL-C2001B bolt lock with delay timer
Suitable for | all types of 180° door |
Operating temp | -10~+25℃（14-131F） |
Operating Humidity | 0~90%(non-condensing) |
Special Designed | Tested to 500000 cycles |
Weight | 0.9kg |
Standard Packing | 30pcs |
S4A Datasheet _2 Wire High Strength Electric Bolt Lock with Low-temperature
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
