>Input: 5v MicroUSb/ DC 7 - 32V
>Output: 10A Max,1 gang
>Network：4G
>Connection: WIFI
Brand:
S4AItem NO.:

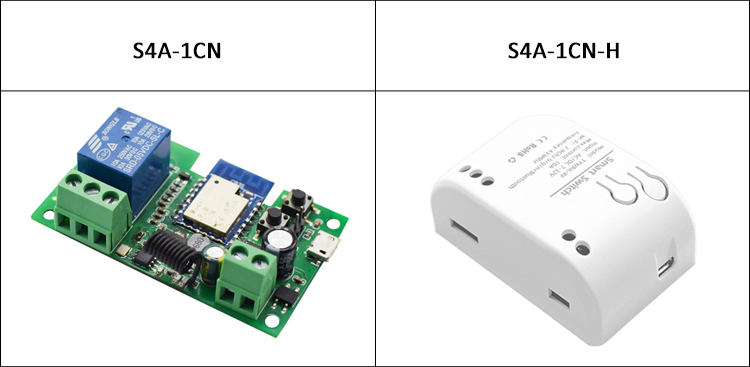

S4A-1CN1CH Tuya wifi switch button single relay module supports 7-32V
Model No.:S4A-1CN/S4A-1CN-H
What is a WiFi relay switch?
WiFi Relays are equipped with firmware built into the board that will allow you to control one relay at a time, a bank of relays, or all relays at once with a manual and automatic refreshing command set. WiFi Relay Controllers allow wireless computer-controlled switching from any computer connected to a network.
Input | 5v MicroUSb/ DC 7 - 32V |
Output | 10A Max,1 gang |
Item weight | 35g |
WIFI | IEEE 802.11 b/g/n 2.4GHz |
Frequency | 433.92Mhz(Without remote control) |
Information transmission | voice |
Network | 4G |
Frequency band | 2.4G |
Connection | WIFI |
S4A Datesheet_1CH Tuya Wifi Universal Wireless Remote Control Switch for Fixed Code and Rolling Code Remote Control Receiver
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
