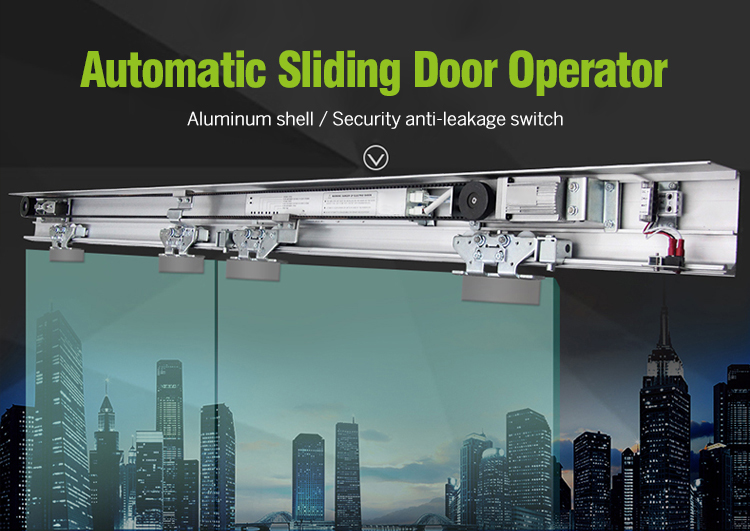

> Aluminum shell
> Security anti-leakage switch

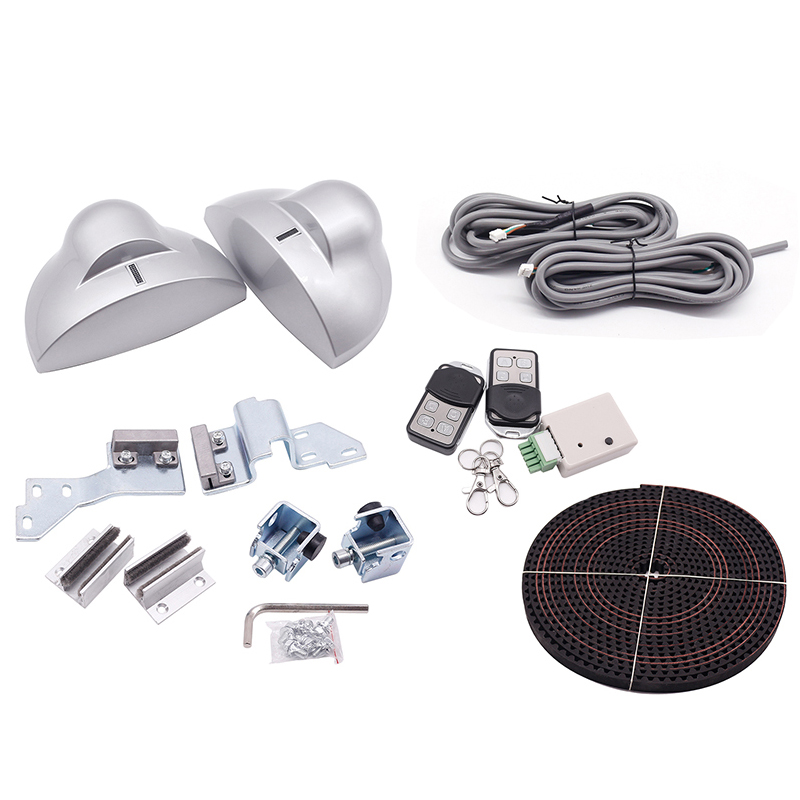

> Remote control x2
> Microwave Sensor
Brand:
S4AItem NO.:

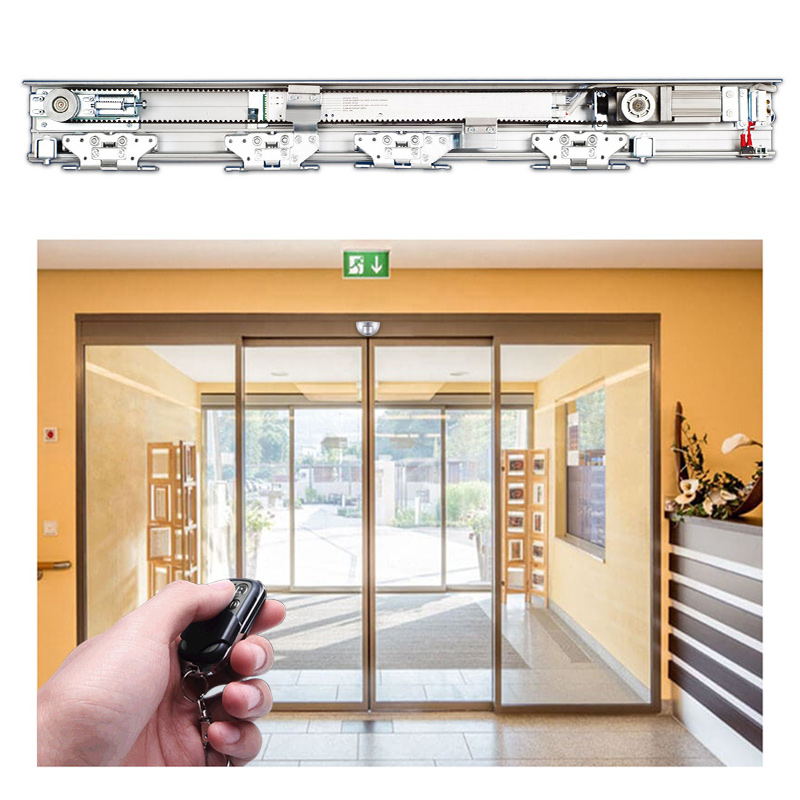

SM150Automatic Sliding Door Operator
Model No.: SM150
Feature:

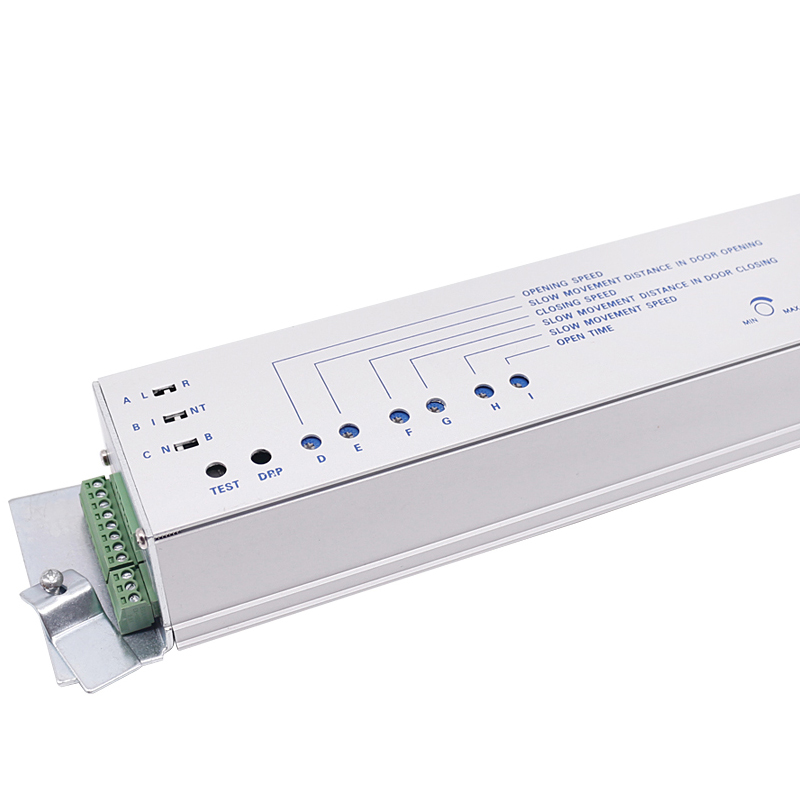

Microcomputer intelligent control, advanced machinery manufacturing.
Adjust door-leaf status automatically, can manually adjust it if necessary.
Low noise, sliding smoothly.
Brushless DC servo motor.long service life.
Interlock; Electric Lock; Compatible with the access control system.
Can hold Max. 300KG Door-leaf
Easy Installation.
Specification | Series | |
Door-leaf Type | Single-leaf | Double-leaf |
Door-leaf Weight | Max.150Kg | Max.150Kg*2 |
Door-leaf Width | DW=750-1600mm | DW=650-1250mm |
Total Width | W=1500-3200mm | W=2600-5000mm |
Mounting Type | Surface Mounting | |
Power | AC90~240V, 50HZ | |
Opening Speed | 15~46cm/s (adjustable) | |
Closing Speed | 13~46cm/s (adjustable) | |
Hold-Open Time | 0~8S (adjustable) | |
Manual Push Force | <40N | <50N |
Motor | DC24V Brushless Servo Motor | |
Ambient Temperature | -20℃~50℃ | |
Packing box | 62x33x13mm | |
Weight | 10.58kg | |
150KG Automatic Garage Sliding Door Electric Operator | |||||
Item Number | Description | Quantity | Cartons | N/W | CARTON SIZE |
pcs | (Total) | (kg/carton) | (CM) | ||

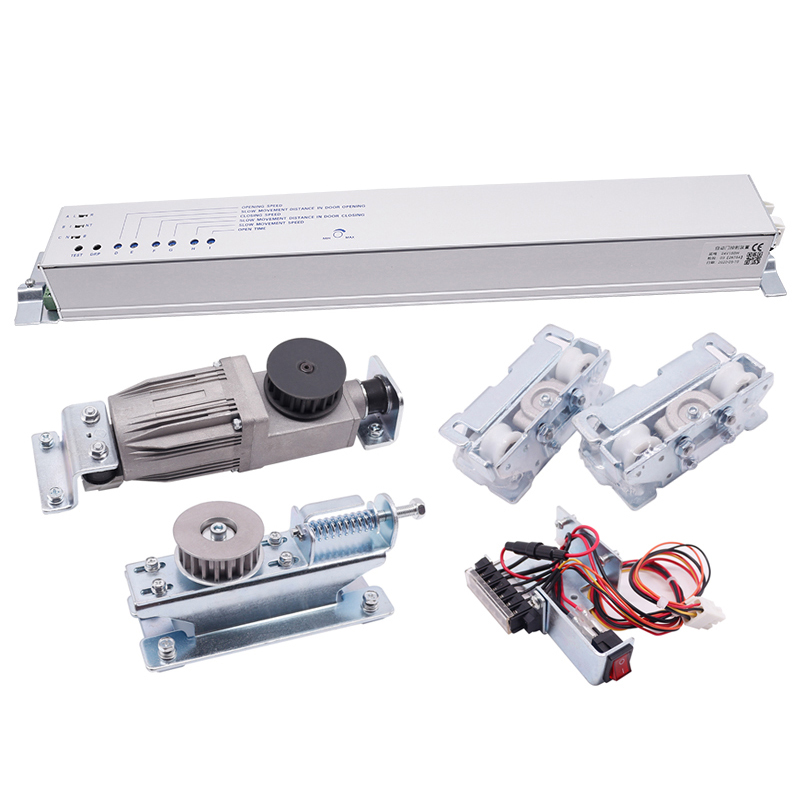

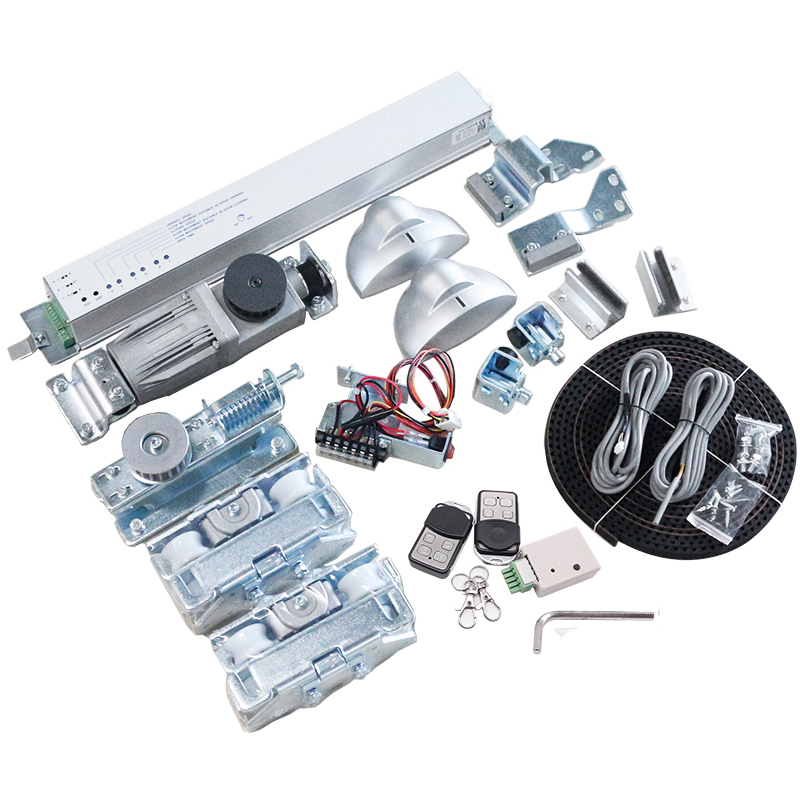

SM-150 | Automatic Sliding Door Operator-Major motor | 1 | 1 | 11 | 37x17x61cm |
With Sliding Door track | 1 | 1 | 9.2 | 14x41x213cm | |
Total Weight: | 20.2KG | ||||
S4A SM150 User Manual_150KG Automatic Garage Sliding Door Electric Operator
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
