12V Wired Doorbell for Fireproof ABS Material

> Operating Voltage: DC12V

> Operating temperature: -10℃~80℃

> Working humidity: < 80%

> Dimenion: 87x61x23mm

  • Brand:

    S4A

  • Item NO.:

    B12
Inquire Now
  • Specifications
  • Wiring Diagram
  • Package

12V Wired Doorbell for Fireproof ABS Material

Model No.: B12


Surface Material

Fireproof ABS Material

Operating temperature

-10℃ ~ 80℃

Working humidity

< 80%

Power supply

DC12V

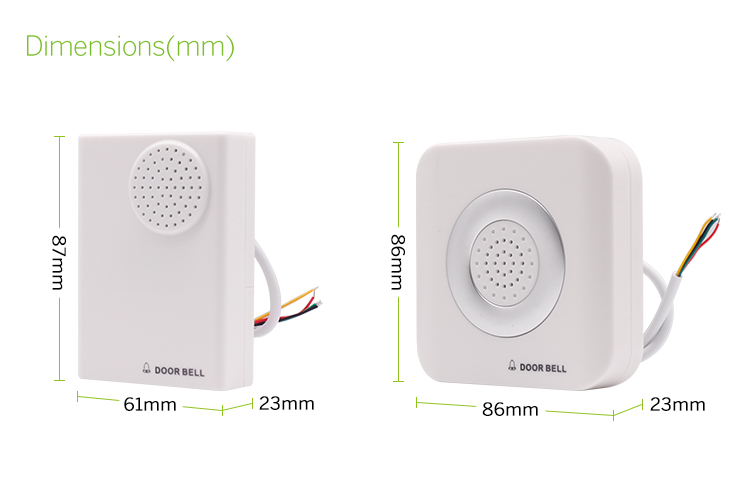

Dimenion

87 x 61 x 23mm

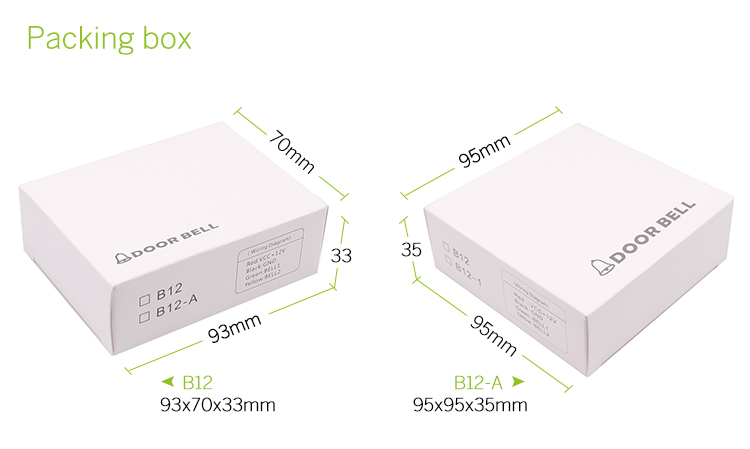

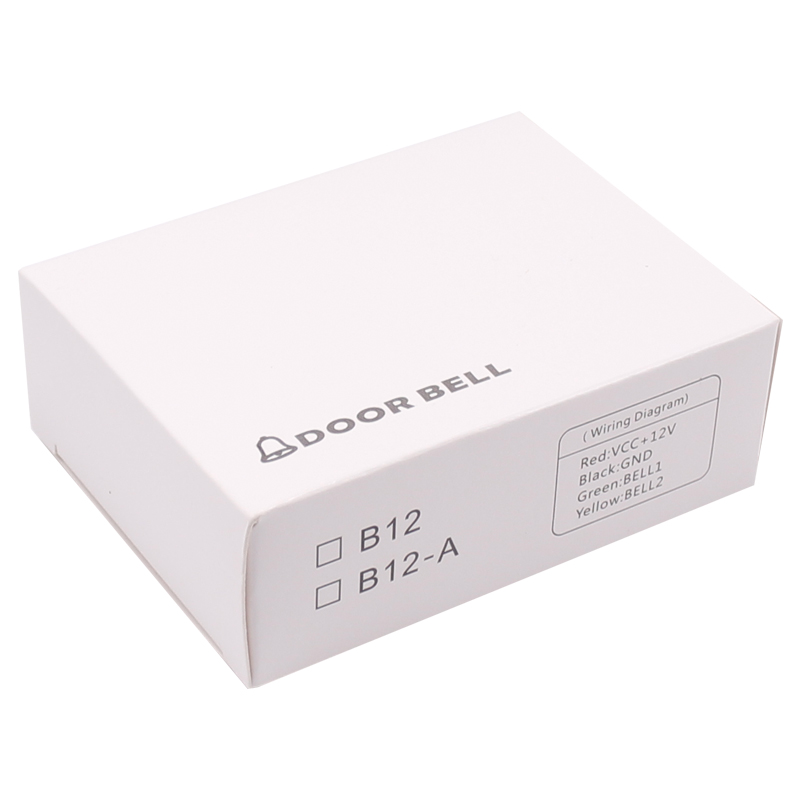

Packing box

93 x 70 x 33mm

Weight

0.02kg

Used Method

Work with door Bell exit button and access control

Application

Hotel, Office, apartment, private villa etc

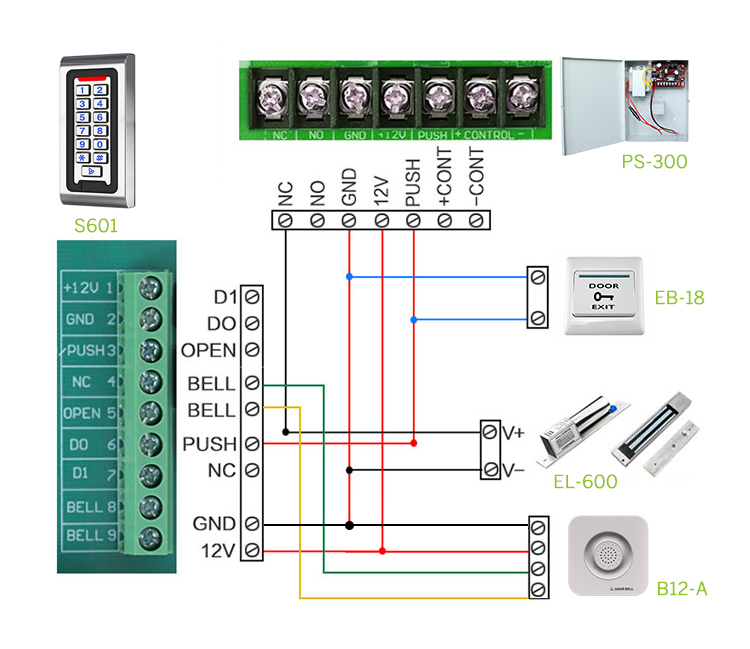

Red

VCC +12V

Black

GND

Green

BELL1

Yellow

BELL2

12V Wired Doorbell.jpg

Wired Doorbell

12V Wired Doorbell.jpg
