> With LED, door senor
> Holding force: 280KGx2(600lbsx2)
> Voltage: DC12V and DC24V (adjustable)
> Current Draw: 12V/500mAx2 24V/240mAx2
> Lock Size: 500Lx48.5Wx25H(mm)
> Armature plate: 180x38x11mm
Brand:
S4AItem NO.:

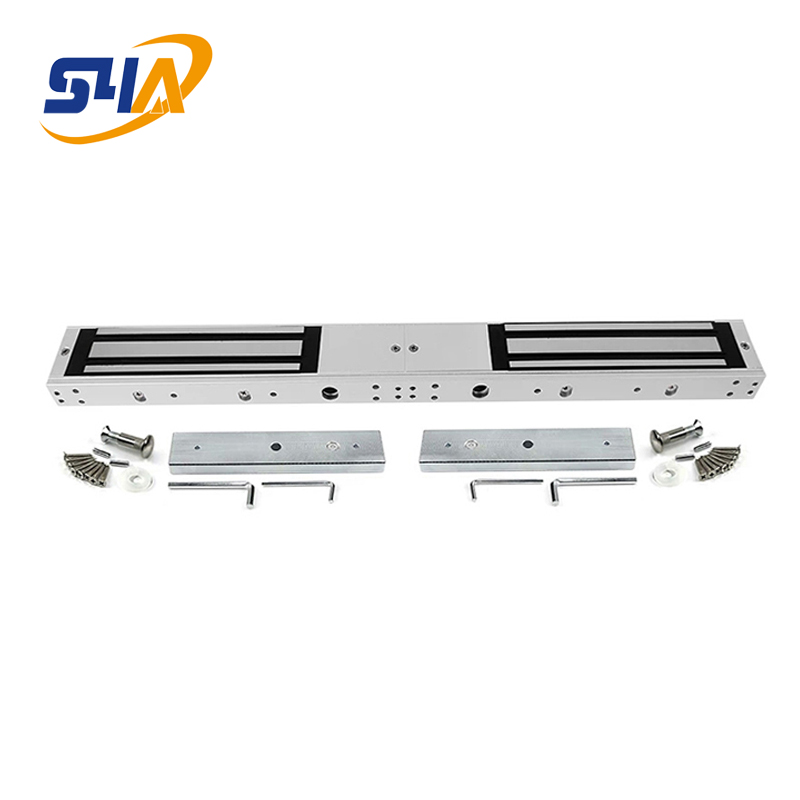

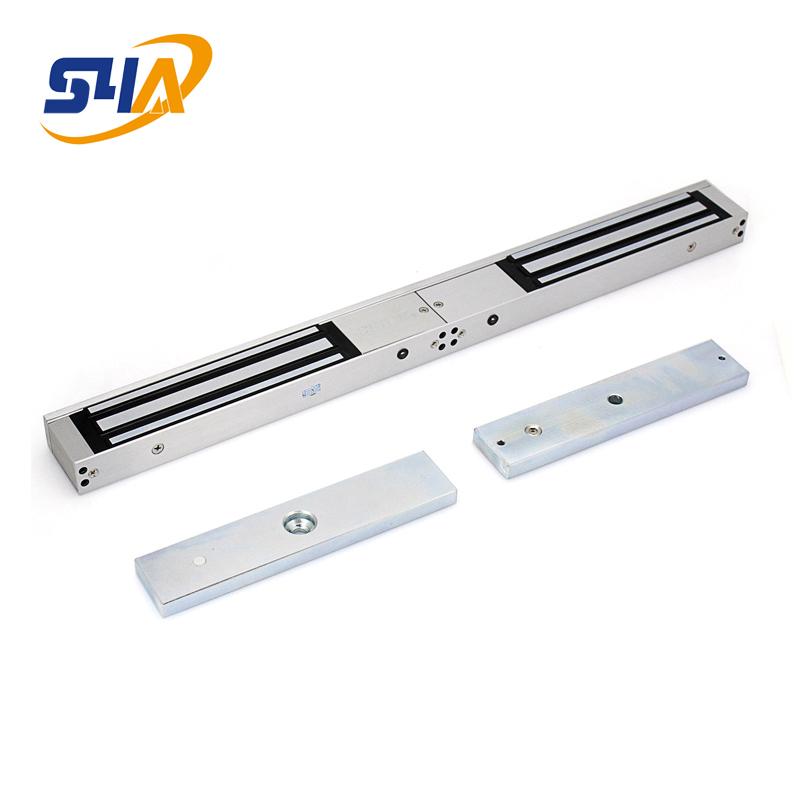

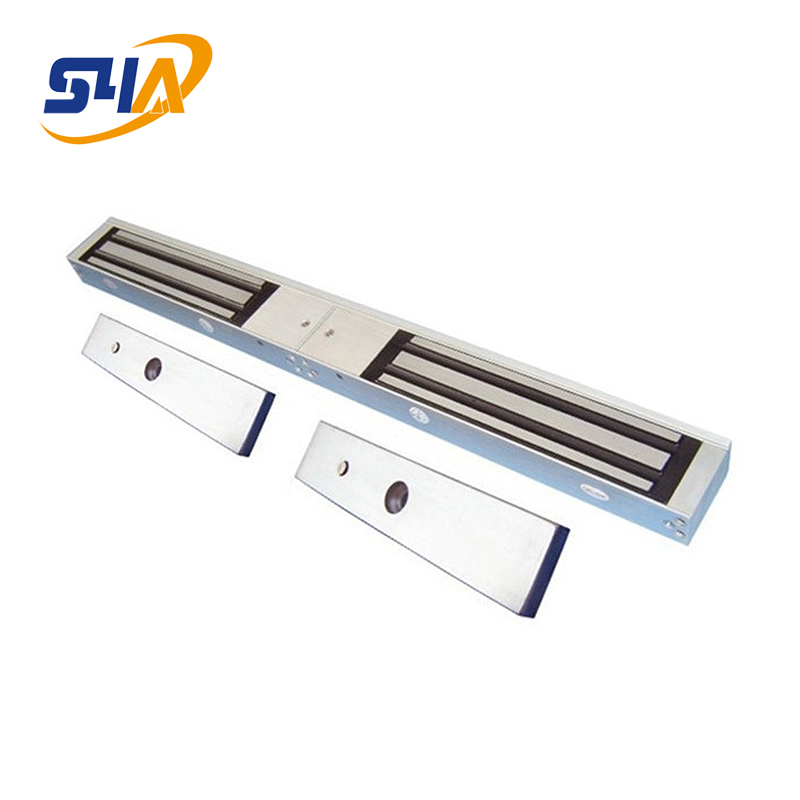

EL-600DSDDouble Door 280KG Magnetic Lock
Model No.: EL-600DSD
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
EL-600D | Without indicator lights |
EL-600DS | With LED (Red only) |
EL-600DSD | With LED, door senor |
EL-600DST | LED, door sensor, Time delay |

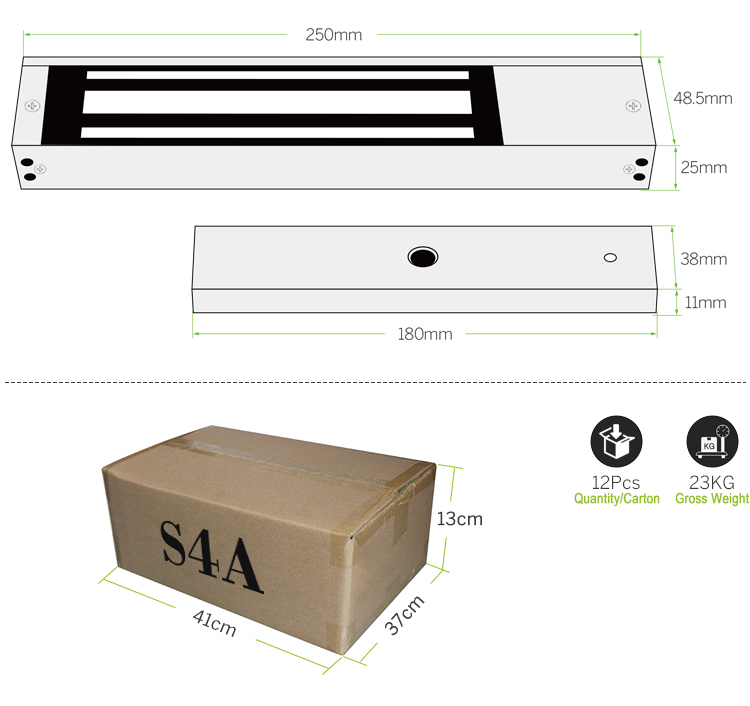

Lock Size | 500Lx48.5Wx25H(mm) |
Armature Plate | 180Lx38Wx11H(mm) |
Holding Force | 280kgx2 (350Lbsx2) |
Voltage | DC12V or DC24V (adjustable) |
Current Draw | 12V/500mAx2 24V/250mAx2 |
Signal Output | Dry Contact, Max Rating of Contact Current 3A |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55℃ (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 4kg |
Standard Packing | 4pcs |
Best Magnetic Door Lock 280KG for Double Door | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-600D | 500x48.5x25mm | 10pcs | 35.7KG | 52x31x15cm |
EL-600DS | 10pcs | 35.7KG | ||
EL-600DSD | 10pcs | 35.7KG | ||
EL-600DST | 10pcs | 35.7KG | ||
S4A Instruction_EL-600DSD_Best Magnetic Door Lock 280KG for Double Door
