/1 Relay Switch With Tuya For Smart Home Light And Door Control

New Products

1 Relay Switch With Tuya For Smart Home Light And Door Control

>Input:5v MicroUSb/ DC 7 - 32V

>Output:10A Max,1 gang


  • Brand:

    S4A
  • Item NO.:

    S4A-1CN-H
  • Specifications

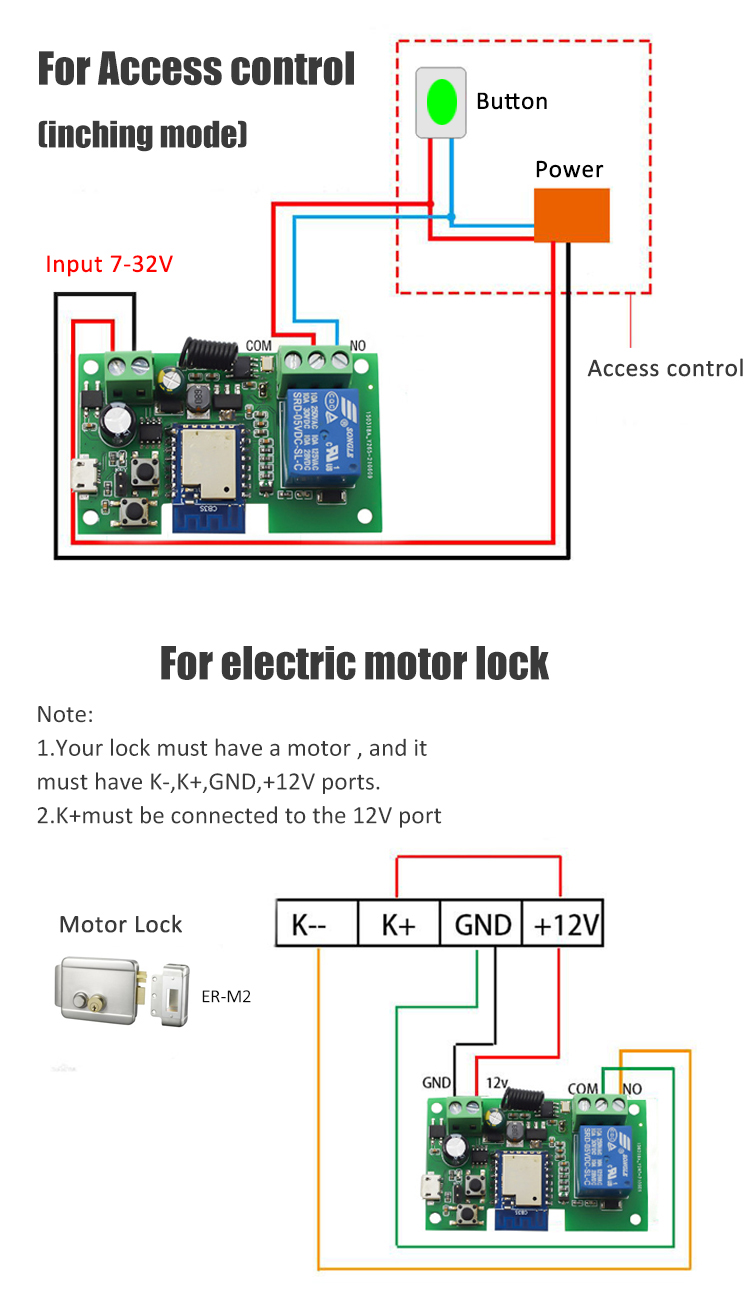

  • Wiring Diagram
  • Package
  • Download

1 Relay Switch With Tuya For Smart Home Light And Door Control

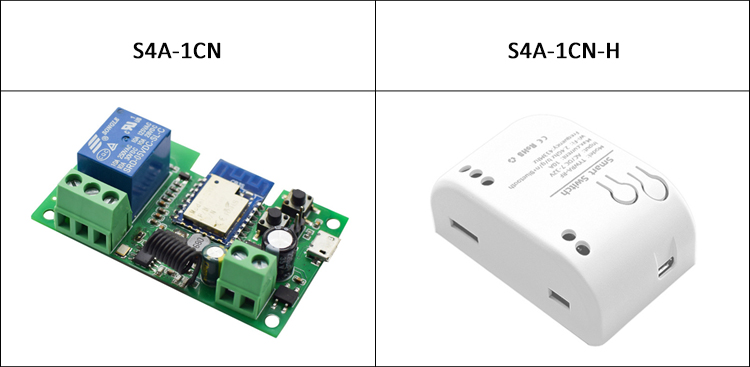

Model No.:S4A-1CN/S4A-1CN-H


Tuya Smart Switch


What does WiFi relay do?

WiFi Relay Controllers allow wireless computer controlled switching from any computer connected to a network. Connect the WiFi Module to the desired wireless Network. Once configured you can start controlling these relays from the networking protocol of your choice.


Input

5v MicroUSb/ DC 7 - 32V

Output

10A Max,1 gang

Item weight

35g

WIFI

IEEE 802.11 b/g/n 2.4GHz

Frequency

433.92Mhz(Without remote control)

Information transmission

voice

Network

4G

Frequency band

2.4G

Connection

WIFI


Tuya Smart Switch

Tuya Smart Switch

Tuya Smart Switch

S4A Datasheet_1 Relay Switch With Tuya For Smart Home Light And Door Control
