Access Control Exit Button

/

1.7mm Stainless steel Release button

/Waterproof IP67 Exit Button with LED

New Products

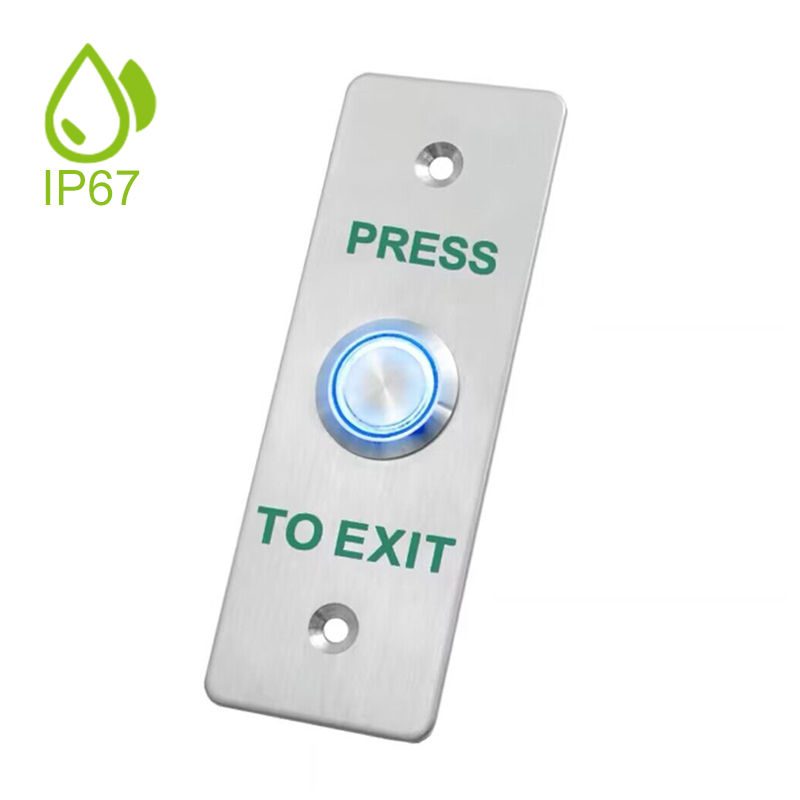

Waterproof IP67 Exit Button with LED

Dimension: 115x40mm

  • Brand:

    S4A
  • Item NO.:

    EB-SW40L
  • Specifications
  • Wiring Diagram
  • Package
  • Download

IP67 Waterproof Exit Button (304 Stainless Steel)

Model No: EB-SW40L


Access control switch knowledge small science

Normally open contact: It is usually in the off state, and it is connected after being pressed.

Normally closed contact: It is usually in the on state, and then it is disconnected after being pressed.

Self-reset: After pressing, the button will reset and bounce back as soon as the hand is released.

Self-locking type: The button is locked after being pressed, and the button can only bounce back after pressing it once.

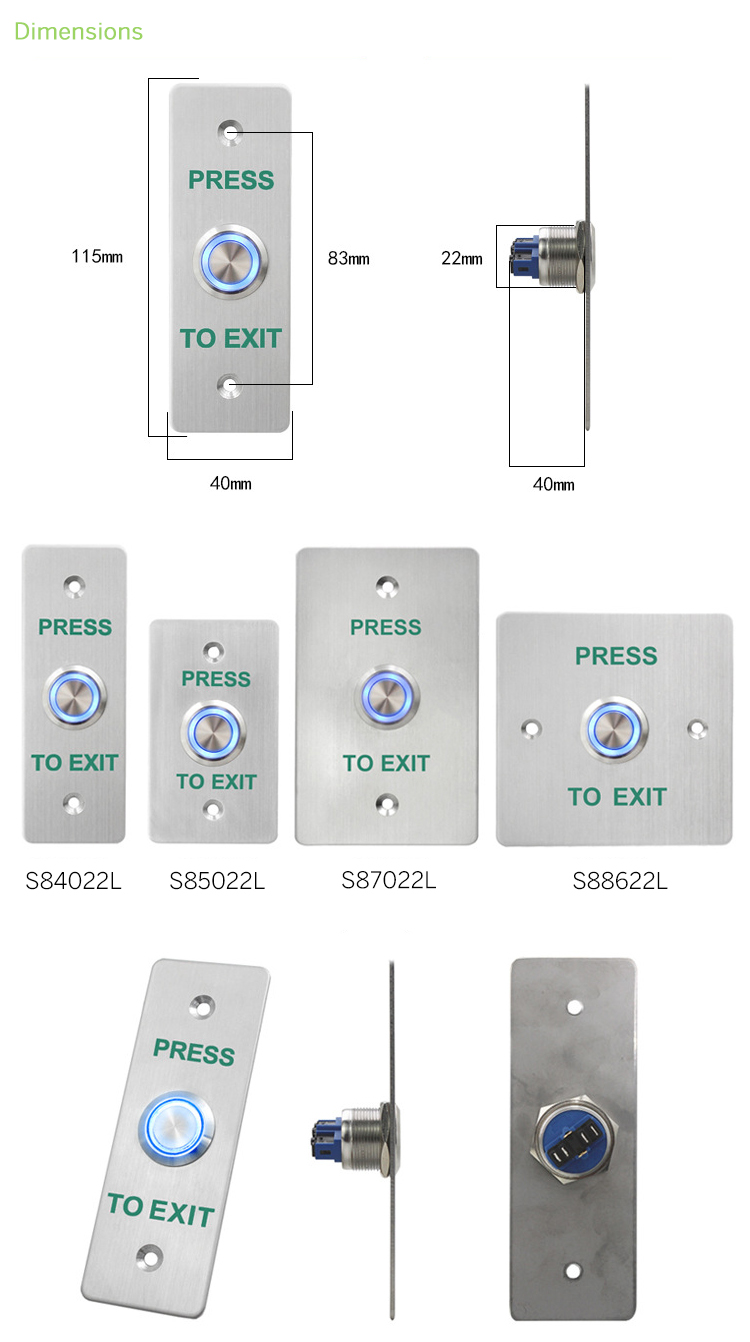

Dimensions

115x40mm

Panel material

1.7mm thick, 304 stainless steel brushed panel

Button material

304 stainless steel, silver cobalt

Waterproof

IP67

Current Rating

3A, 36VDC

Voltage

DC12

Output

6wires (NO/COM/NC/COM/+12V/GND)

Mechanical Life

1000000 tested

Weight

0.14KG


Waterproof Exit Button

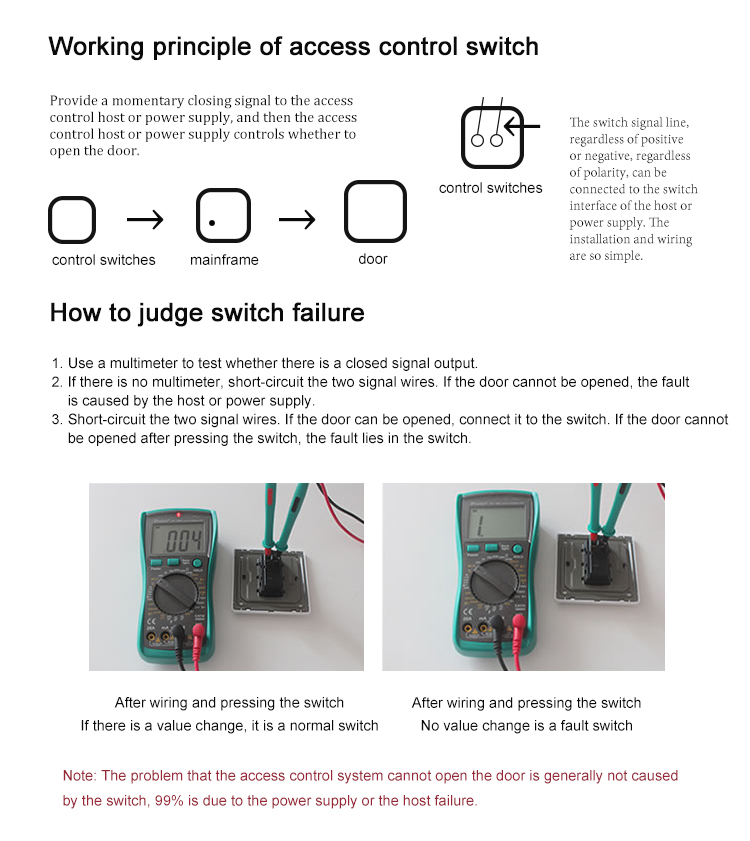

Waterproof Exit Button

Waterproof Exit Button

S4A_Datesheet_Waterproof IP67 Exit Button with LED
