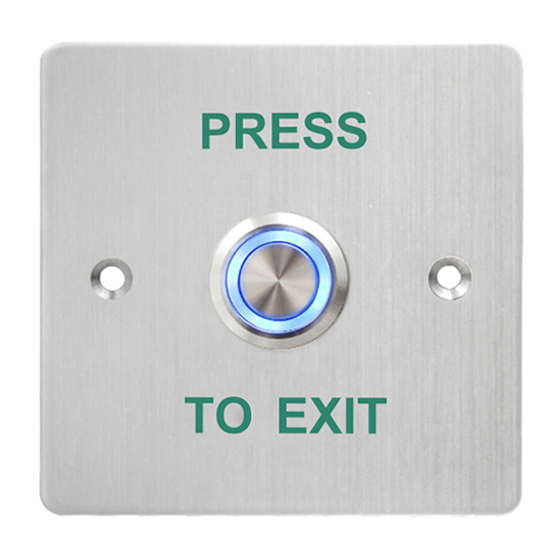

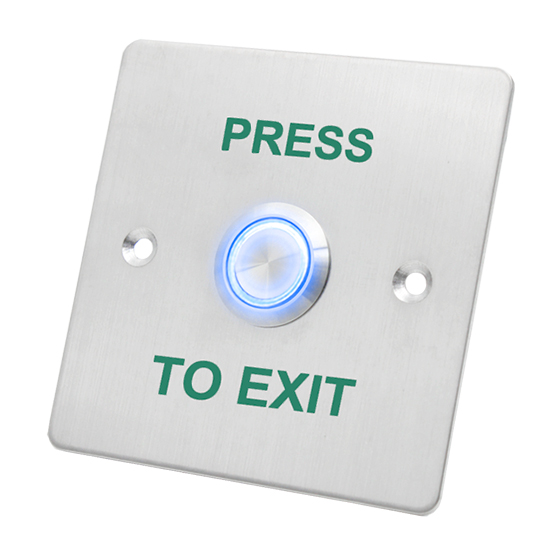

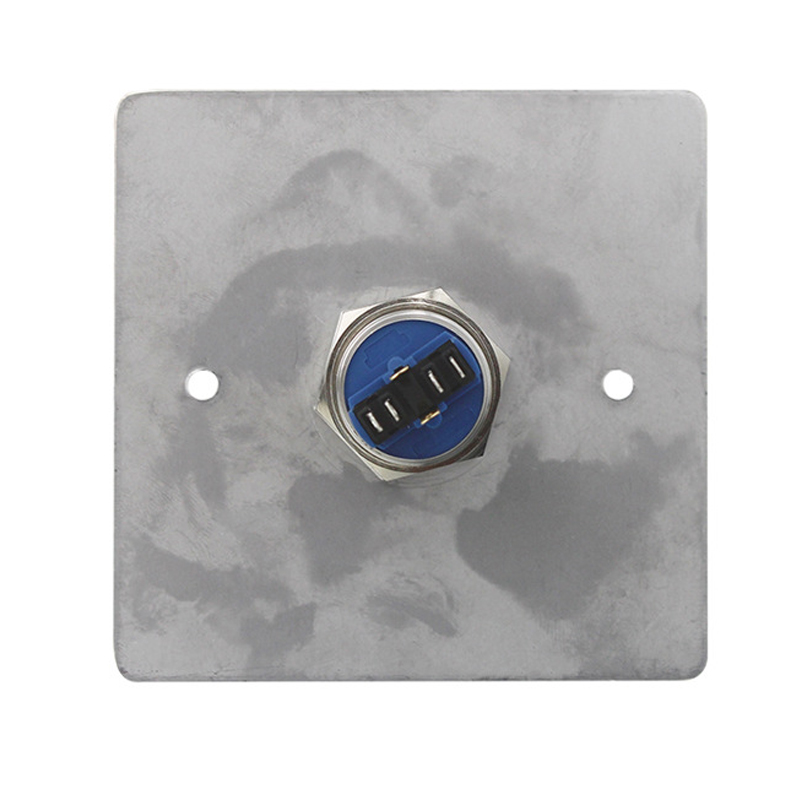

Stainless Steel Exit Button with 6wires

Dimension: 86x86mm

  • Brand:

    S4A
  • Item NO.:

    EB-SW86L
  • Specifications
  • Wiring Diagram
  • Package
  • Download

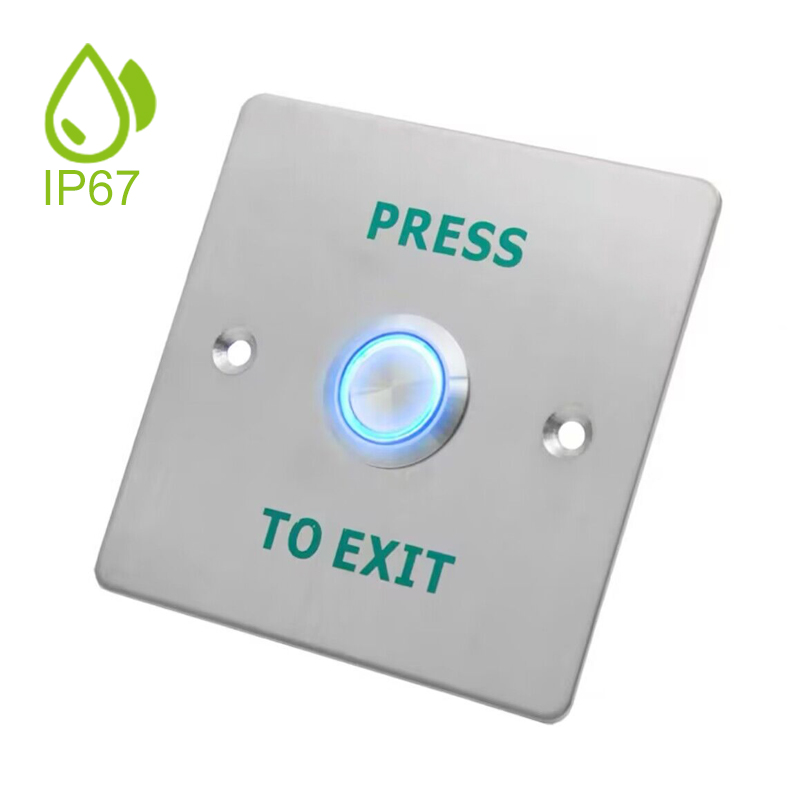

IP67 Waterproof Exit Button (304 Stainless Steel)

Model No: EB-SW86L

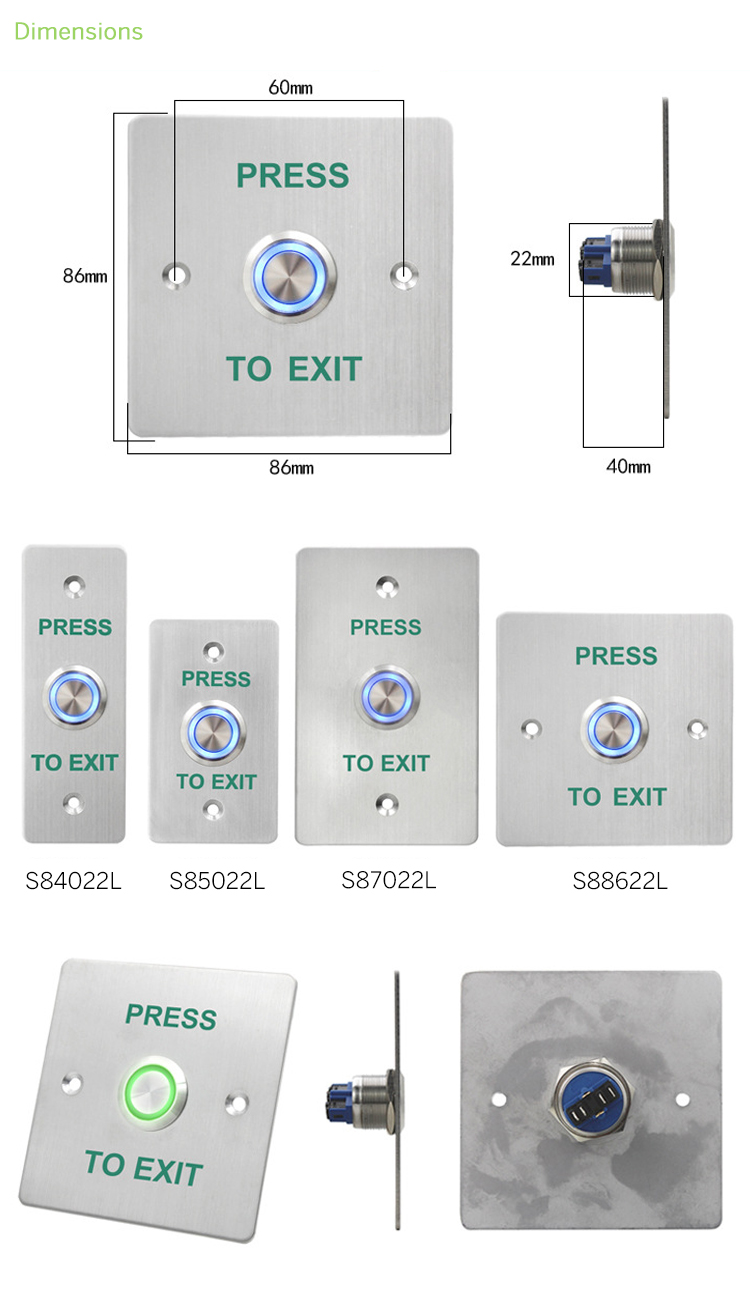

Dimensions

86x86mm

Panel material

1.7mm thick, 304 stainless steel brushed panel

Button material

304 stainless steel, silver cobalt

Waterproof

IP67

Current Rating

3A, 36VDC

Voltage

DC12

Output

6wires (NO/COM/NC/COM/+12V/GND)

Mechanical Life

1000000 tested

Weight

0.14KG


Stainless Steel Exit Button

Stainless Steel Exit Button

Stainless Steel Exit Button

S4A_Datesheet_Stainless Steel Exit Button with 6wires
