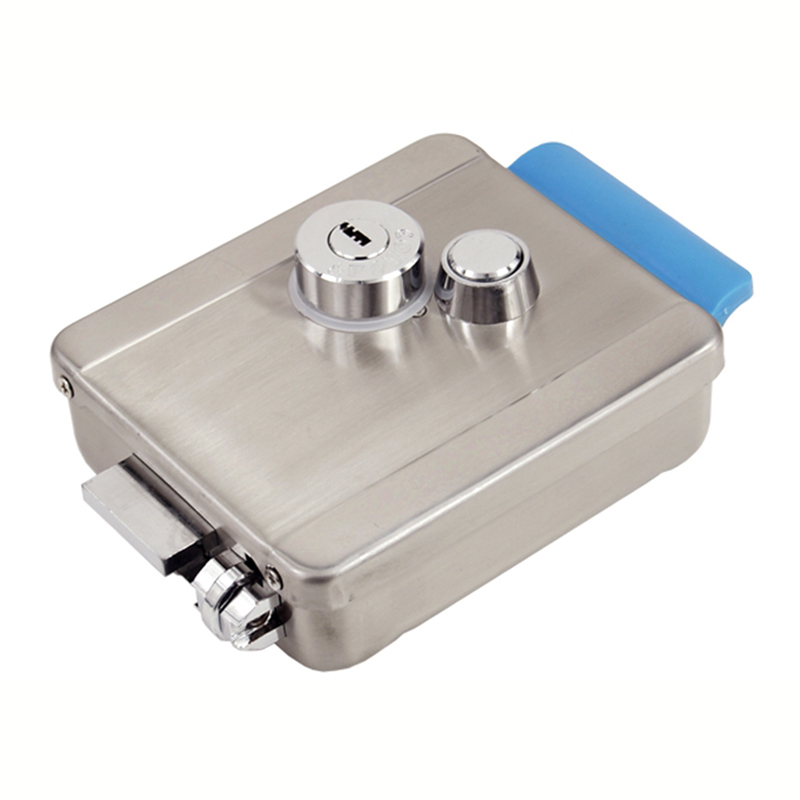

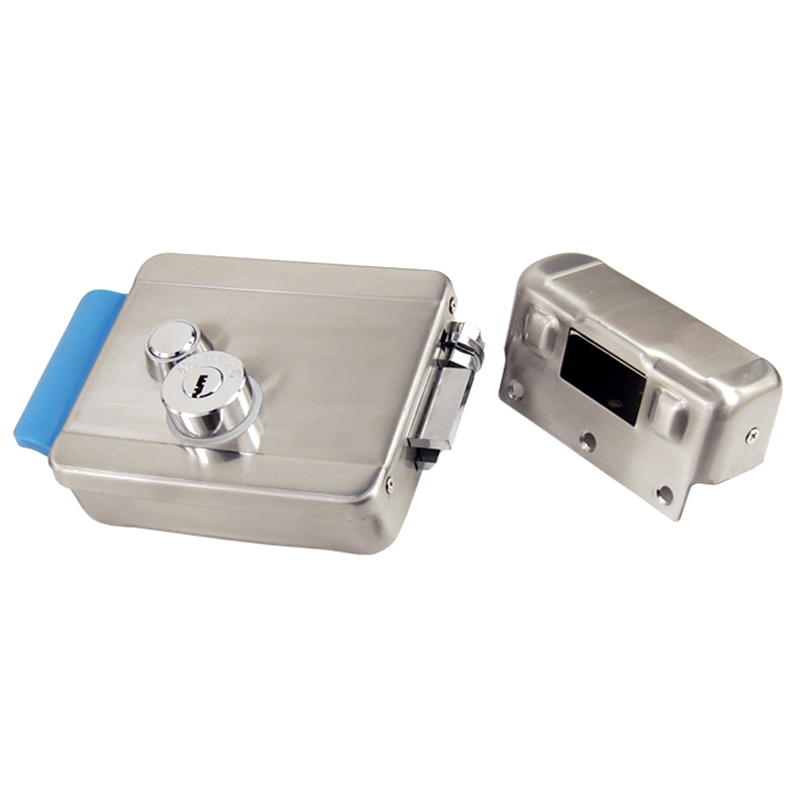

Stainless Steel Brushed Double Cylinder Electric Rim Lock

SS304 Stainless steel Electric RIM lock with double cylinder

  • Brand:

    S4A
  • Item NO.:

    ER-D2
  • Specifications

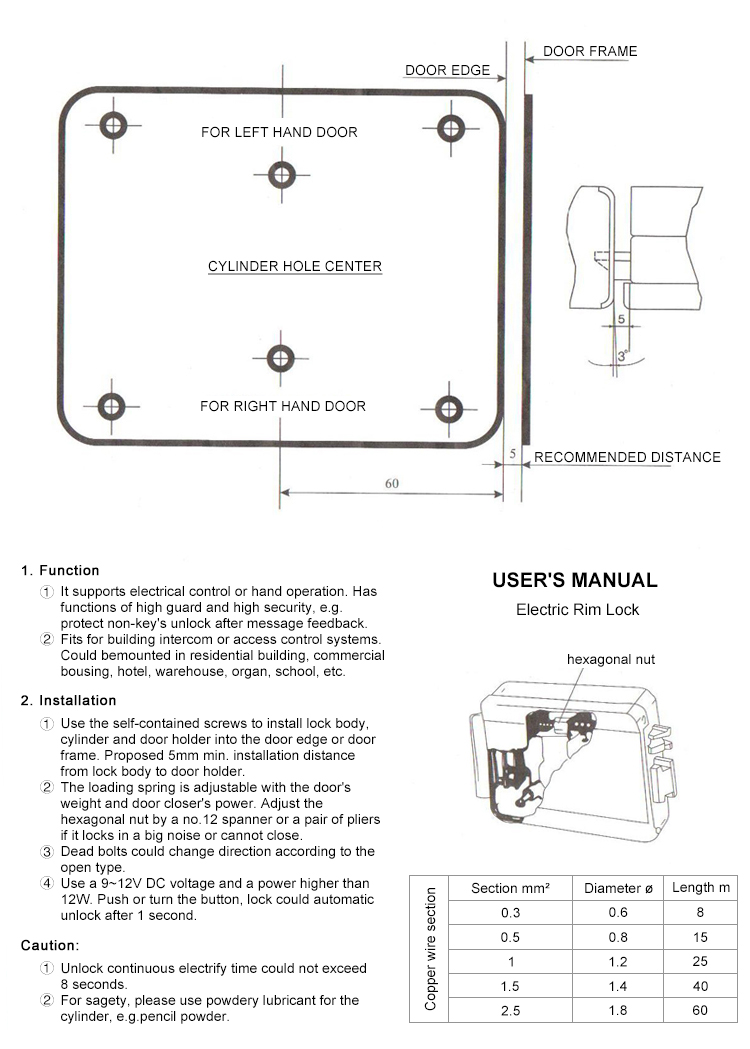

  • Wiring Diagram

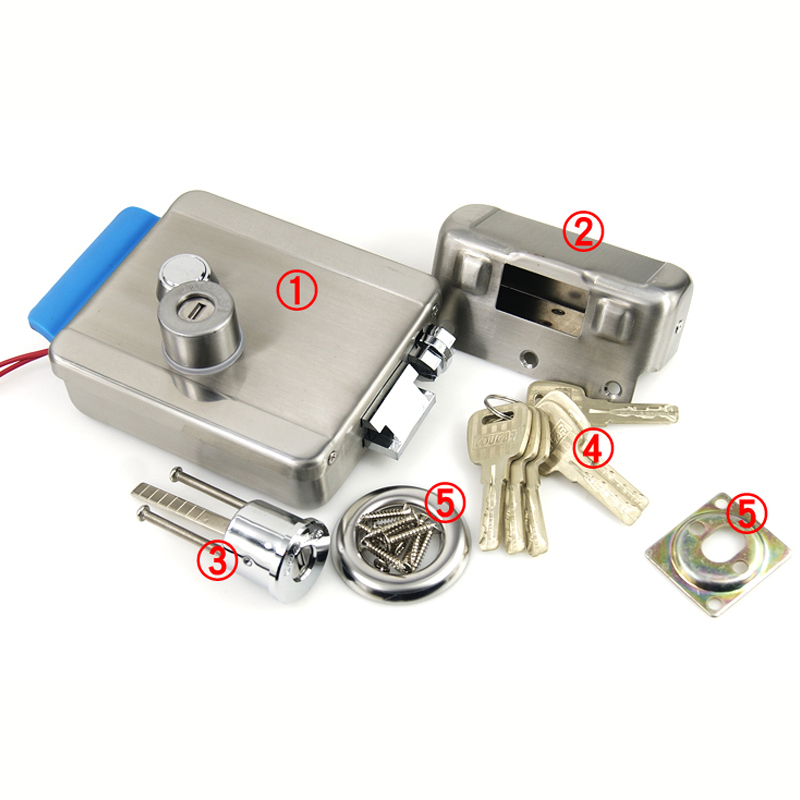

  • Package

Stainless Steel Brushed Double Cylinder Electric Rim Lock

Model No.: ER-D2


Feature:

High strength stainless steel lock housing

Elegant surface finish: stainless steel brushed

Single Cylinder or Double Cylinder are available

Solid brass ball latch

Solid brass cylinder and deadbolt

Reversible deadbolt

Fail secure, pulse to open

Reliable locking mechanism (Up to 1000000 operations)

High security, low noise


Parameter

Description

Model

ER-D2; ER-S1

Cylinder

Single or Double cylinder

Finish

stainless steel brushed

Lock Size

148 x 107 x 60mm

Backset

60mm

Keys

3pcs

The thickness of the lock body and strike

2.0mm

Voltage

12VDC(Plus)

Working current

3A

Consumption power

10W

Unlock time

Pulse to unlock, within 1s

Service life

1,000,000 times

Operating Temp

under 40+50

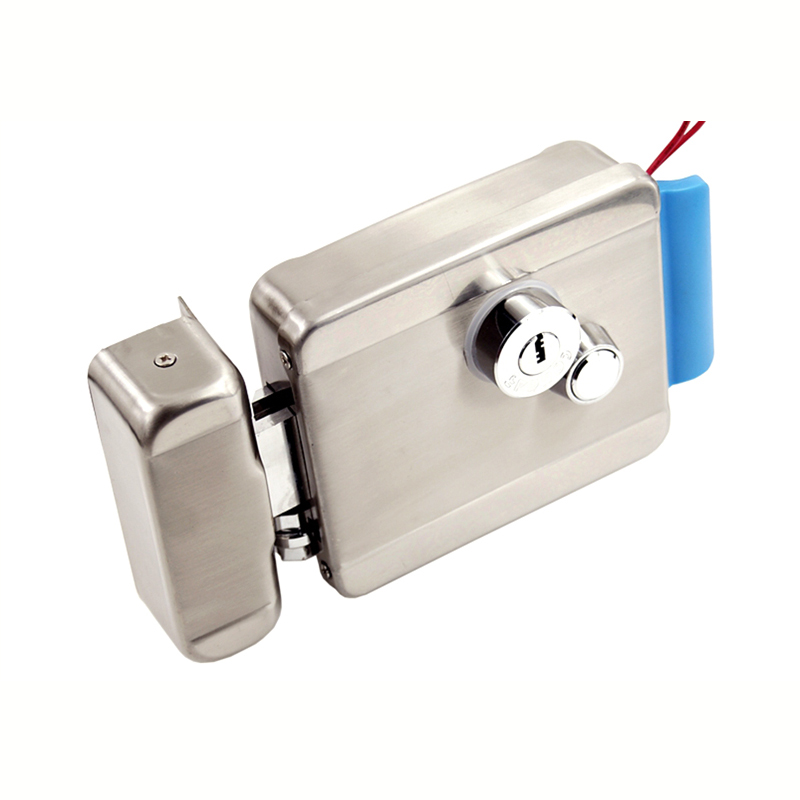

SS 304 Electric RIM lock

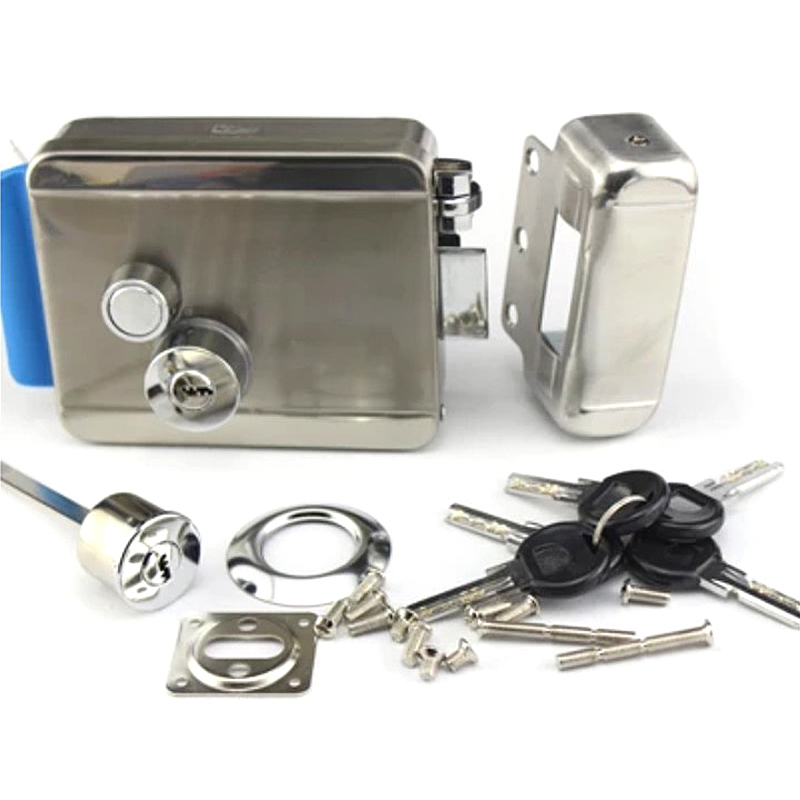

SS 304 Electric RIM lock

Packing and Weight

Carton Size:

36X28.5X24.5cm

Qty/Carton:

12pcs

Net Weight

22 KG

Gross Weight

23 KG
