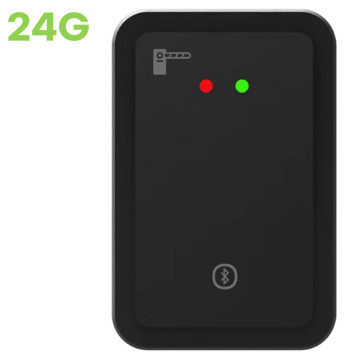

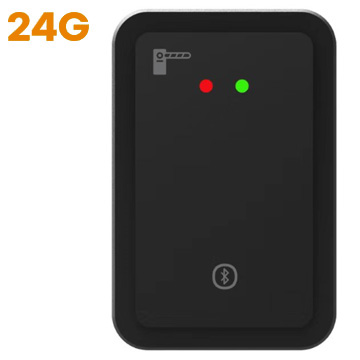

S4A BR2401A 24GHz Millimeter-Wave Anti-Smash Radar Sensor for Parking Barrier Gates
S4A BR2401A: Professional 24GHz Millimeter-Wave Anti-Smash Radar
For facility managers and parking integrators, preventing barrier gate accidents is a top priority to avoid vehicle damage and liability. The S4A BR2401A 24GHz Radar is engineered as a high-precision safety solution that replaces traditional, invasive ground loops. Drawing on our 16 years of production experience, we have developed this sensor to provide a reliable "safety curtain" that protects both assets and pedestrians with industrial-grade accuracy.
Key Advantages for Your Facility:
Precision Detection Technology: Utilizing advanced 24GHz millimeter-wave technology, the BR2401A accurately distinguishes between vehicles and pedestrians, effectively eliminating "crushing" incidents at the entrance.
Cost-Effective "No-Cut" Installation: This wireless sensor allows for a clean, surface-mounted installation, removing the need for pavement cutting and complex underground wiring, which significantly lowers labor costs.
Industrial-Grade Reliability: Built to withstand harsh environments, the radar features an IP67-rated housing that ensures consistent performance in rain, dust, and extreme temperatures.
Seamless System Integration: As part of S4A’s "one-stop-shop" factory solutions, this radar is fully compatible with our range of Automatic Parking Barrier Gates, ensuring a stable and synchronized security system.
| Product Parameter | Parameter Descr1ption |
| S4A Model | BR2401A |
| Product Name |
24 GHz Millimeter-Wave Anti-Crushing Radar for Straight Arm Barriers |
|
|
|
| transmission frequency | 24GHz |
| Azimuth field of view angle | -50°~50° |
| Vertical field of view angle | -10°~10° |
| Maximum detection distance | 6m |
| Operating Temperature | -40°C~+85°C |
| Working Voltage | DC12V |
| power consumption | ≤0.5W |
| Package dimensions | 129*95*46mm |
| Online debugging/upgrading | Bluetooth |
| waterproof rating | IP67 |
| FM mode | FMCW |
| Antenna MIMO | 1T2R |
| transmit power | 11dBm |
| EIRP | 24dBm |
| Overall dimensions | 118 * 78* 22mm |
| Net weight | 188g |
>Input voltage:DC12V 150mA >Working frequency:24-24.5GHz
Integrated Pedestrian & Vehicle Safety: This radar utilizes a dual-detection mode to distinguish between cars and people, triggering an immediate anti-smashing response to prevent accidents. Cost-Efficient "No-Cut" Installation: As a superior wireless alternative to traditional ground loops, this sensor eliminates the need for pavement cutting and complex wiring, significantly reducing labor and site restoration costs. Industrial-Grade All-Weather Reliability: Backed by 16 years of production expertise, the sensor features an IP67-rated waterproof and dustproof design, ensuring consistent, high-precision detection in rain, fog, and extreme temperatures
