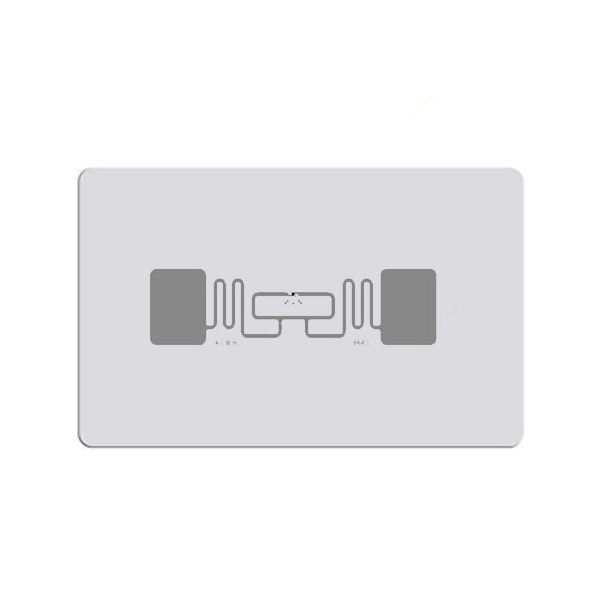

Passive Uhf Rfid Tag

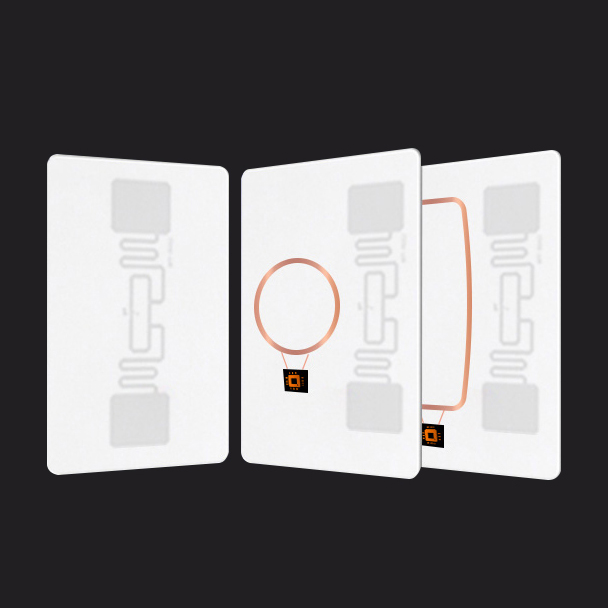

> 9662: 85x54mm

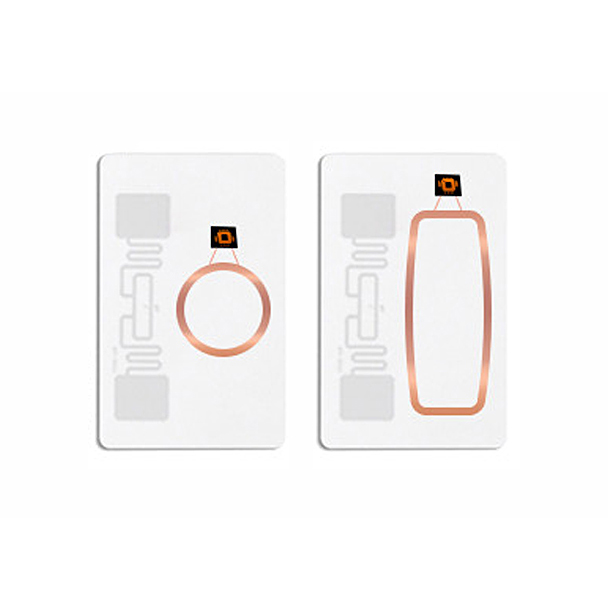

> 9662+IC: UHF+IC Mifare 13.56MHz

> 9662+ID: UHF+ID EM 125KHz

  • Brand:

    S4A
  • Item NO.:

    9962, 9962+IC, 9962+
  • Specifications

UHF Cards and Tags

Model No.: 9962, 9962+IC, 9962+ID


Model No.

9962

9962+IC, 9962+ID

Frequency

860~960MHz

Protocol

ISO/ICE18000-6C EPS Gen 2

ISO/18000-6C +14443A

Capacity

96-496 bit EPS encoding

96-128 bit EPS encoding

RAM

Maximum expansion to 512Bits

Recognition distance

1-35m (depending on the antenna gain)

Period of use

Read and write 100,000 times, data storage for 10 years

Antenna material

PVC+Etched aluminum foil

Size

85.5x54mm

Package

200 pcs/box


Passive Uhf Rfid Tag labels
