> CB-95A: DC6V 1.4A
> CB-95B: DC12V 0.8A
> CB-95C: DC24V 0.8A
> CB-95D: DC12V 2.2A
> Total Tongue Length: 10mm
> Power On: <5S (Don't recommend to power on all the time)
Brand:
S4AItem NO.:

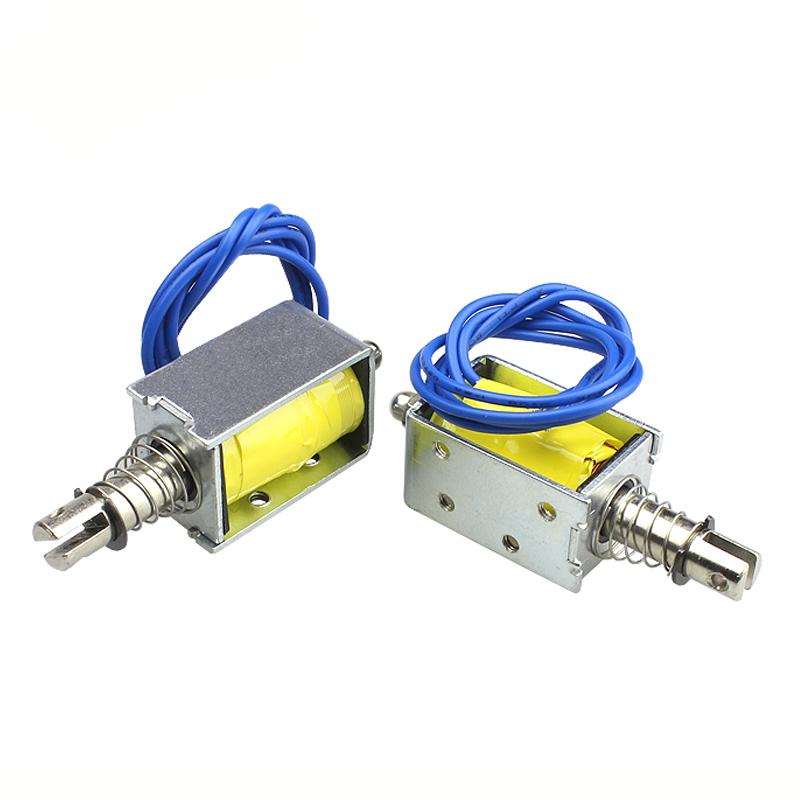

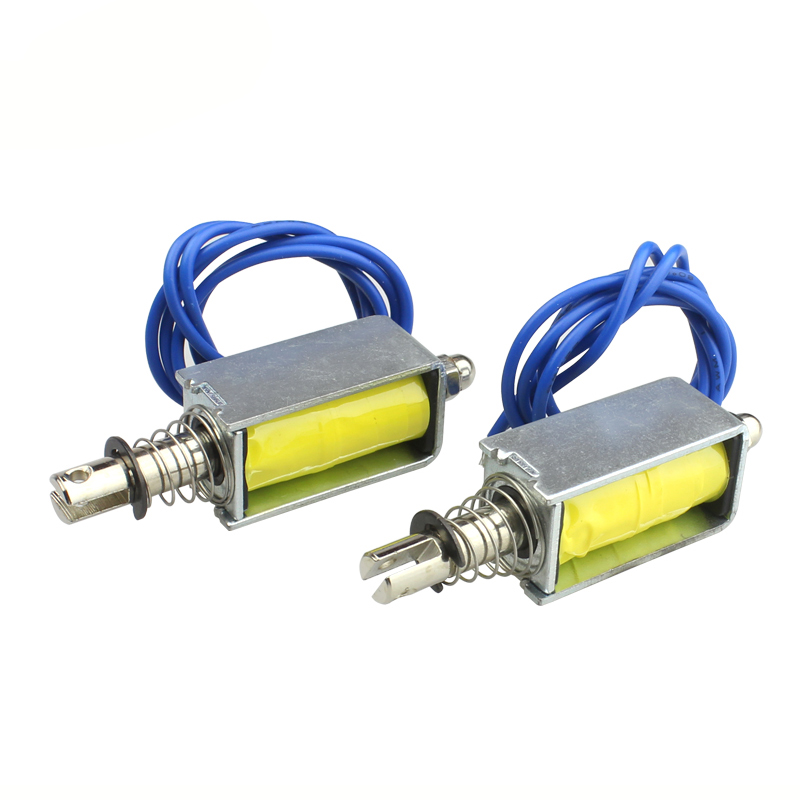

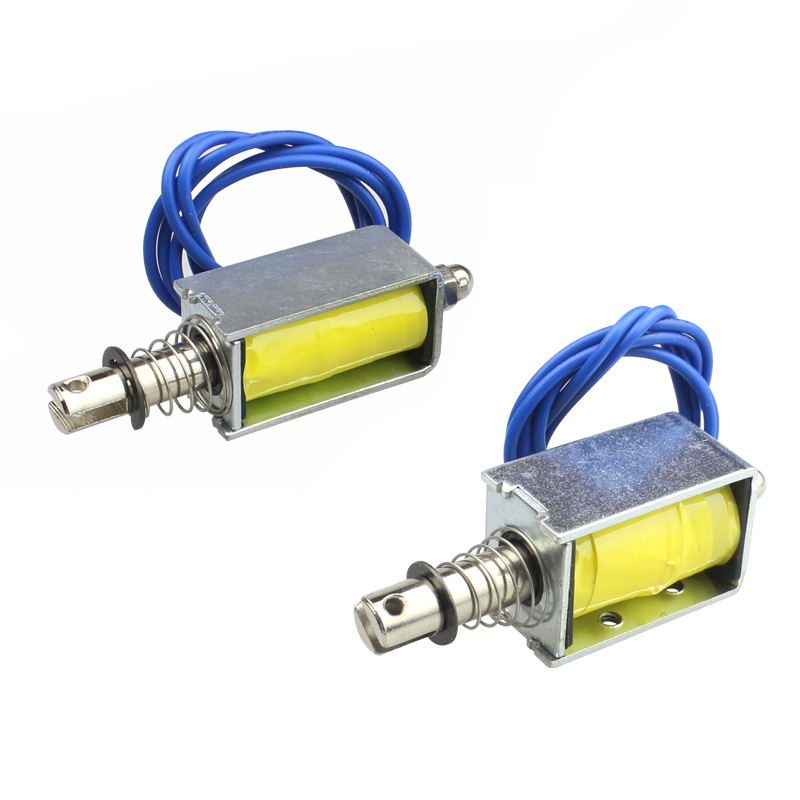

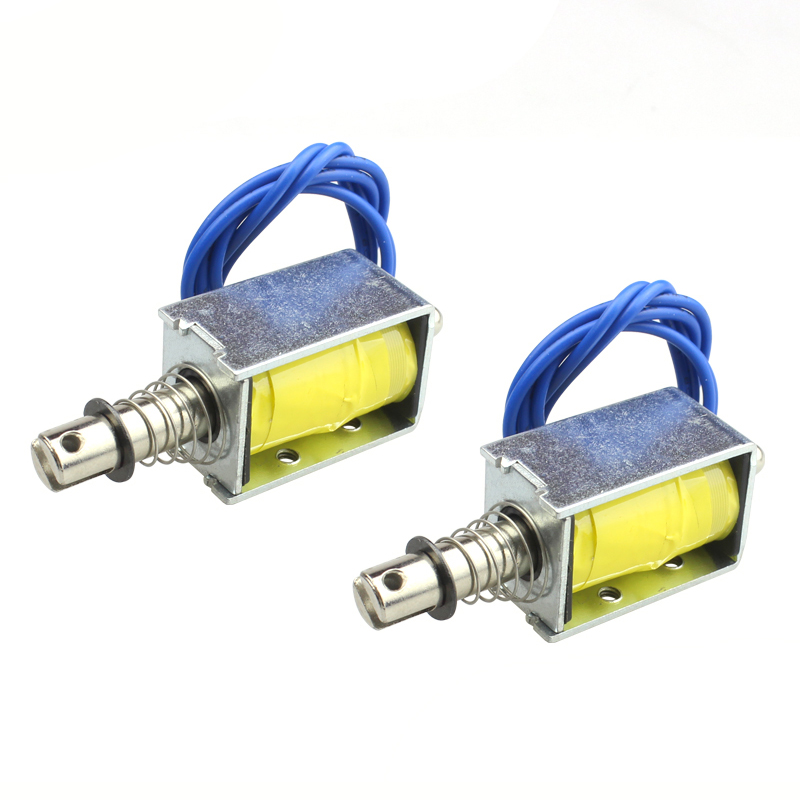

CB-95Mini Electromagnetic Solenoid Lock Assembly for Electric Door Lock

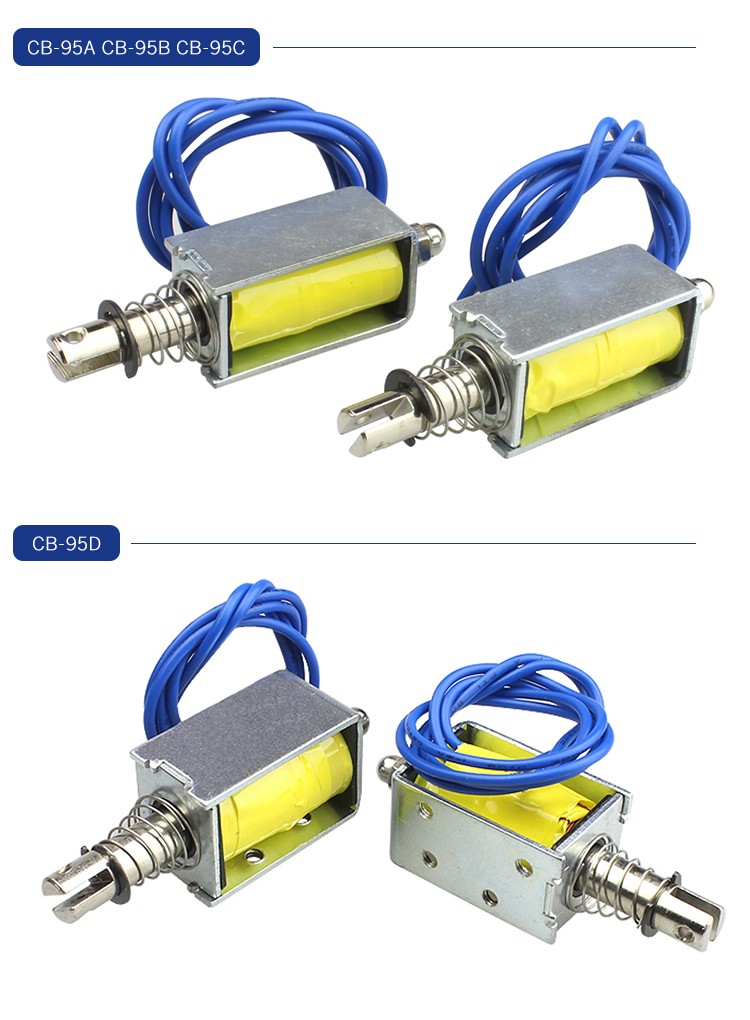

Model No: CB-95A, CB-95B, CB-95C, CB-95D
Model No. | CB-95A | CB-95B | CB-95C | CB-95D |
Voltage | DC6V | DC12V | DC24V | DC12V |
Current | 1.4A | 0.8A | 0.8A | 2.2A |
Total Tongue Length | 10mm | 10mm | ||
Lock Tongue Diameter | 6mm | 7mm | ||
Tongue Holding Force | ≤1N(100G) | ≤1.5N(150G) | ||

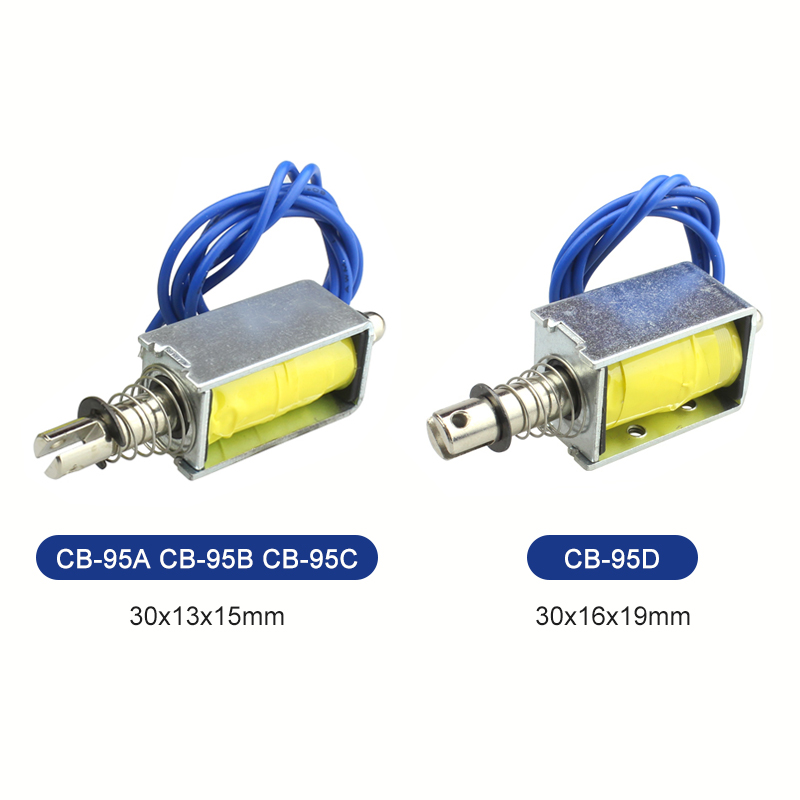

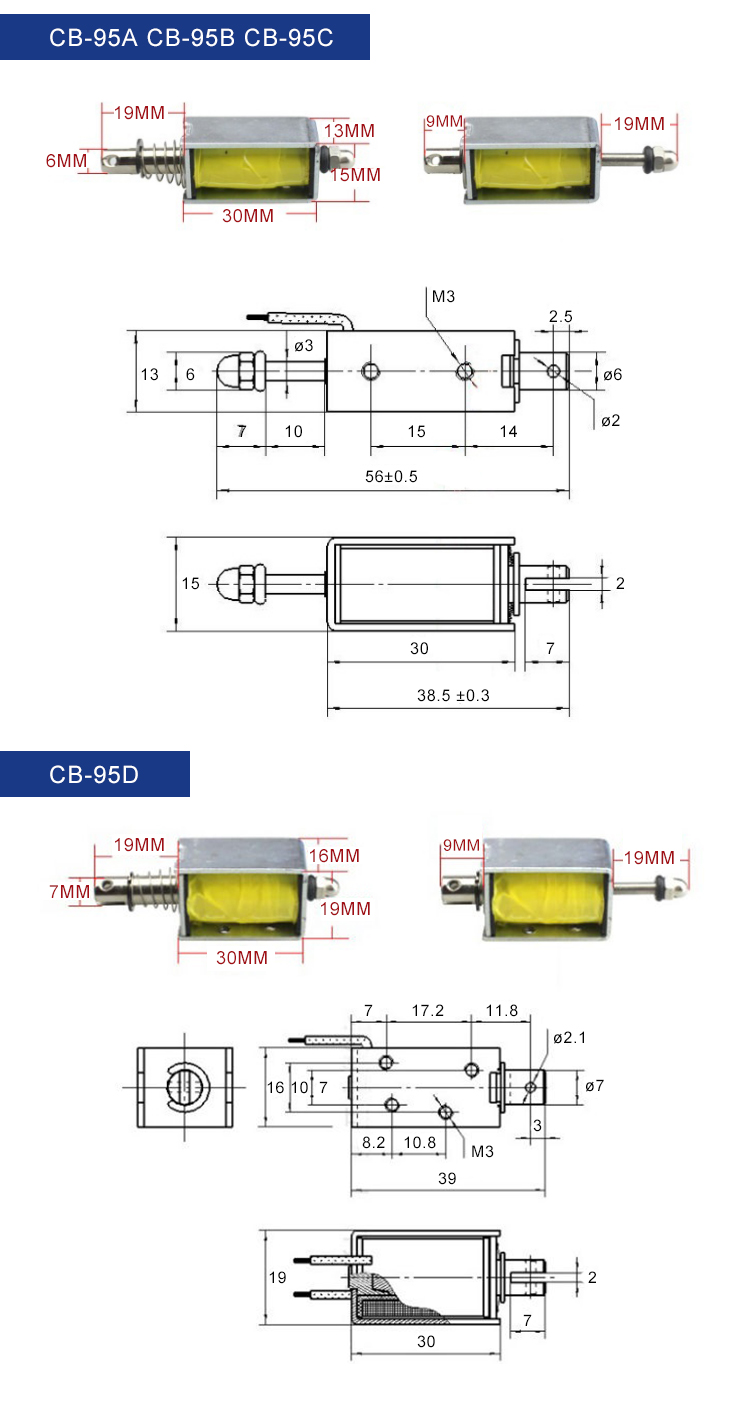

Dimension | 30x13x15mm | 30x16x19mm | ||
Power On | <5S (Don't recommend to power on all the time) | |||
S4A Datesheet_Solenoid Lock
> Voltage: DC12V 1.8A> Lock size: 73 x 58 x 13.3mm> Signal output: No
> Voltage: DC12V 1.8A> Lock size: 73 x 58 x 13.3mm> Signal output with 4 wires
> Voltage: DC12V 1.8A> Lock size: 73 x 58 x 13.3mm> Signal output: No
> Voltage: DC12V 1.8A DC24V 1.5A> Lock size: 73 x 58 x 13.3mm> With Signal Output
> Voltage: DC12V 1.8A> Lock size: 72 x 65 x 13mm> With Signal Output
> Voltage: DC12V 2A> Lock size: 61 x 48 x 13mm> With Signal Output
Work with 4pcs 7 alkaline batteries> Static current ≤5uA> Transient current (Turn on lock) ≤250mA> Work current for operating keypad: ≤20mA> Use time: More than 100 thousand
> Voltage: DC12V 0.8A DC24V 1.2A> Lock size: 55 x 23 x 28mm> Working Mode: Power on- Open Power off- Lock
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
