How to install the L,Z,U bracket of the magnetic lock?

September 17, 2022

How to install the L,Z,U bracket of the magnetic lock?


Many customers are not sure if their own doors need brackets, or what brackets to choose.

After ordering, can they install it themselves?


According to the usual communication with customers, we have sorted out the relevant questions of customers, and hope that this article has the answers you want.If you need more detailed information, you can email or call us directly.

Email: sales@s4a-access.com  or Call: +86 755 29450011


       a. First put the L1 bracket in the Z&L bracket on the position where the lock is installed, and fix it on the door frame or wall with self-tapping screws.

       b. Use a hexagonal wrench to lock the lock body on the L1 bracket.

       c. Fix the Z2 bracket on the door corresponding to the position of the L1 bracket.

       d. Insert the follower iron plate into the three holes of Z1 for false fixation, and then close the door to make the magnet and the follower iron plate fit tightly, and determine the connection position of Z1 and Z2 for the single door magnetic lock(The relative position of Z1 and Z2 can be adjusted according to the thickness of the door)

      e. Tighten Z1 and Z2, and then fix the follower iron plate on Z1 with M8*25 hexagon socket head screws (insert the screw, iron plate, washer and rubber washer in sequence).

       f. If it is a double door magnetic lock system, two Z&L brackets can be used. Buried (built-in) installation method The buried installation method of the inner door and the outer door are the same. The slot, the lock can be embedded and then the screw can be locked, and the general construction personnel will install the lock when they see the lock.


The frame of the aluminum alloy door is generally hollow. For this feature, we have designed two installation methods.

      A. Wood lining method: Put a suitable size of wood in the door frame for lining, and then lock the screws. This method is convenient to obtain materials and simple to install. This method is mostly used in actual installations.

      B. Using the installation accessories method: This method is to use the accessories (four-hole iron plate + U-shaped iron) provided by us to make the installation easier. Installation Precautions When doing flush installation, make sure that the size of the door stop is slightly larger than the size of the selected lock.


  Glass door installation method 1. Installation method of glass door with aluminum alloy (or other materials) framed glass door for embedded installation generally can use FG-600 or UB-600 series magnetic door lock, which is unique to our S4A company and most suitable for installation in glass door The lock on the door, whether your door is inward-opening or outward-opening, double-opening free door can be installed. The installation method is the same as the embedded installation of ordinary doors.



      Precautions for magnetic lock installation: The glass door needs to be equipped with an aluminum alloy frame. Because the lock suction and distance are less than 6 mm, the distance from the door edge to the door frame is required to be less than 6 mm. The floor spring must be of stable quality, otherwise it will affect the lock. positioning.

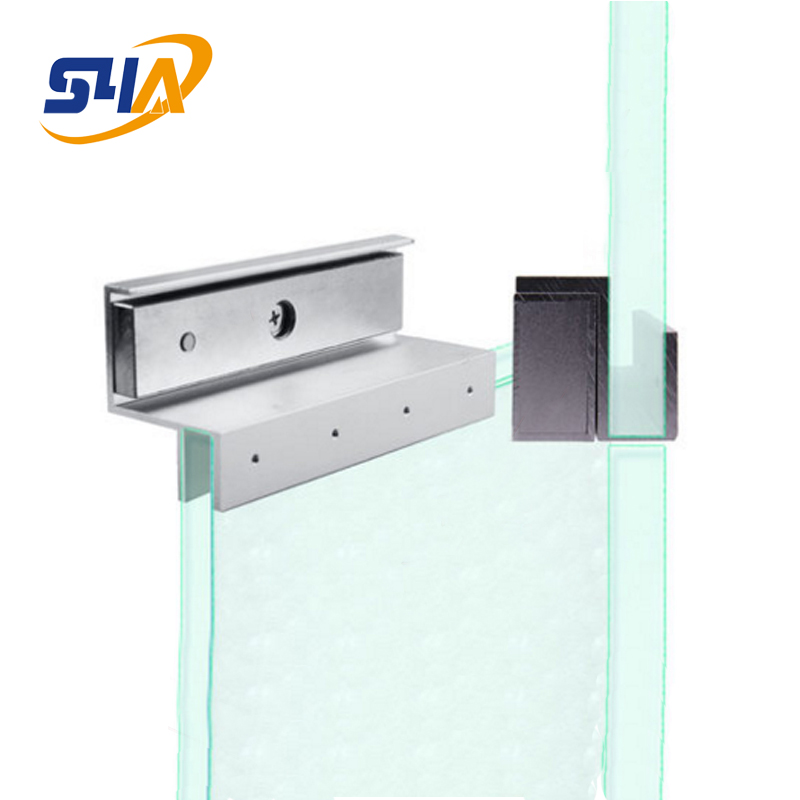

 magnetic lock brackets

      Precautions for installation and maintenance of magnetic locks: Compared with other locks, the maintenance of magnetic door locks is relatively simple, as long as the surface of the iron plate and the main body of the lock is kept free of impurities, so please regularly wipe the surface with a non-corrosive cleaner.

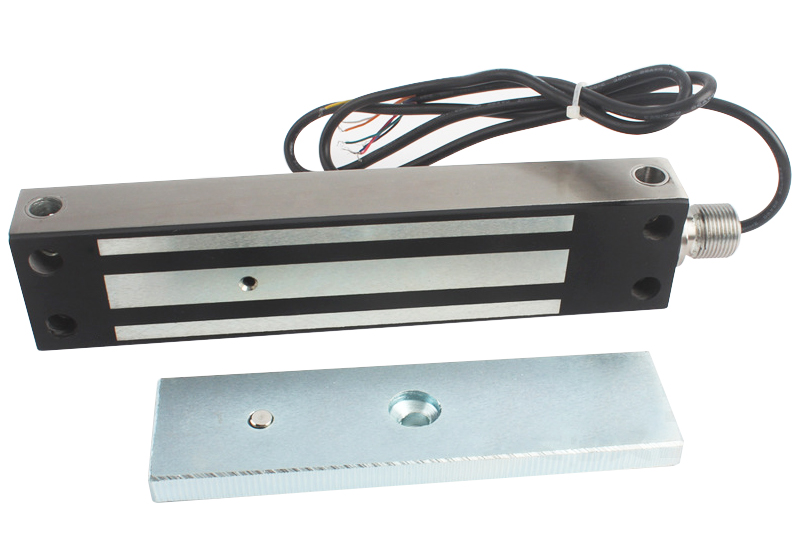

Similarly, in addition to indoor magnetic locks, we also have magnetic locks suitable for outdoor installation,that's waterproof magnetic lock IP65, Stainless steel material.

waterproof magnetic lock

Author: Written by Ms.Anna Zhang from S4A INDUSTRIAL CO., LIMITED
