Hidden RFID Electronic Cabinet Lock DIY for Wooden Cabinet Locker Drawer

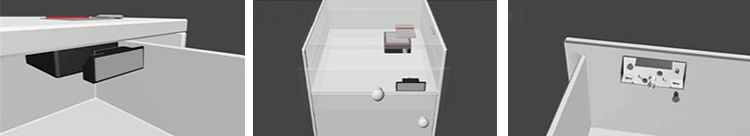

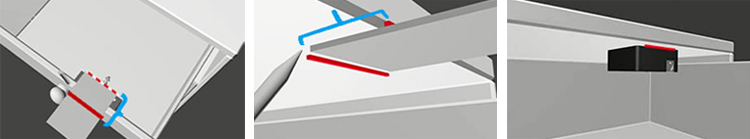

As shown, move the lock buckle to the back of the drawer door just to measure the distance (shown as blue line), and use a card to mark the distance (shown as red line). The buckle does not need to be screwed at this point.

Use the marked card and draw a line to the position shown on the picture inside the cabinet. This is for positioning the lock case. (The distance within the blue line should be the same as step 1)

Position the lock case to the cabinet as shown. We recommend you to use a tape to position it temporarily first just in case of any mistakes, you can install it to the drawer with screws later on.

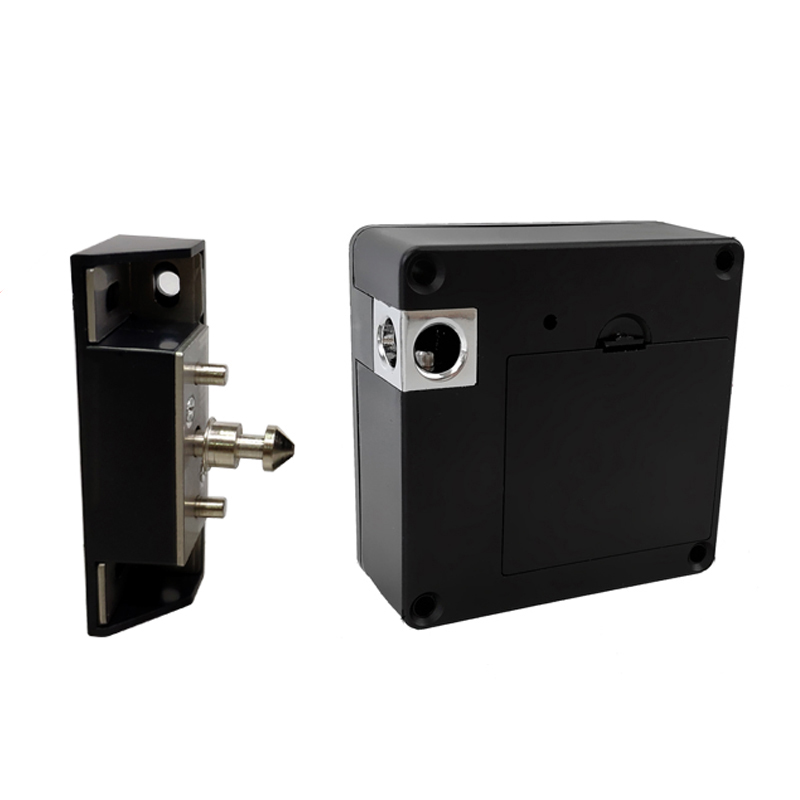

Put the lock buckle with the lock case together as shown, and stick a tape to the back of the buckle.

Close the drawer and let the buckle stick to the back of drawer door, and then unlock it and reopen the drawer. Make sure that the buckle is already stuck to the drawer door at this point.

Positioning is done at this point, you can install the lock buckle and lock case to the drawer with screws.

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

CB-99

50PCS

6.86KG

10.36KG

43x38x21cm

100PCS

15.5KG

22.1KG

55x39x35cm
