New Products

Fingerprint Padlock with USB

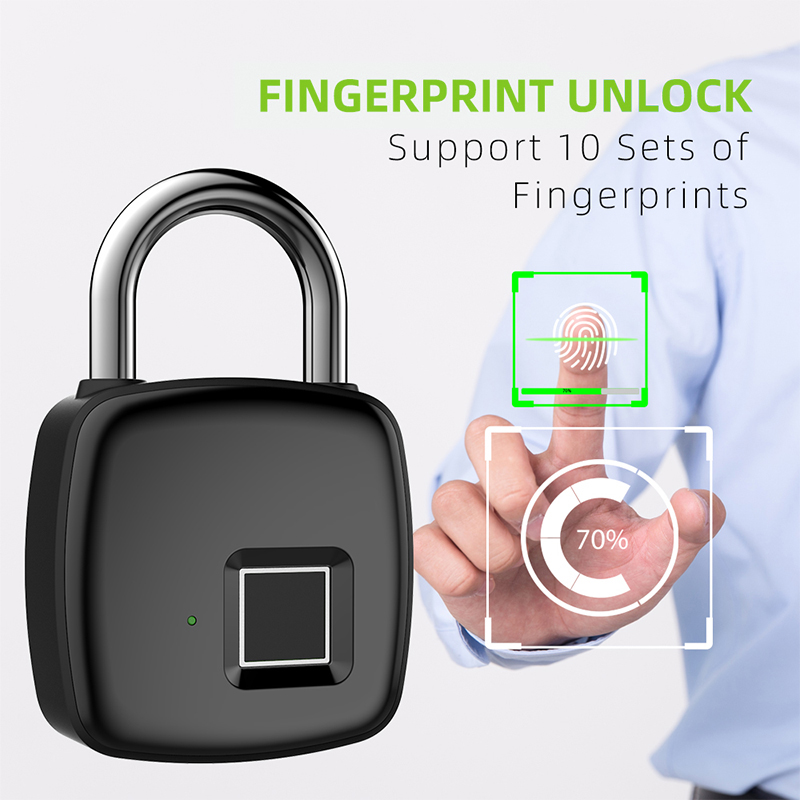

> Support: 360-degree angel fingerprint recognize

> Waterproof: IP65

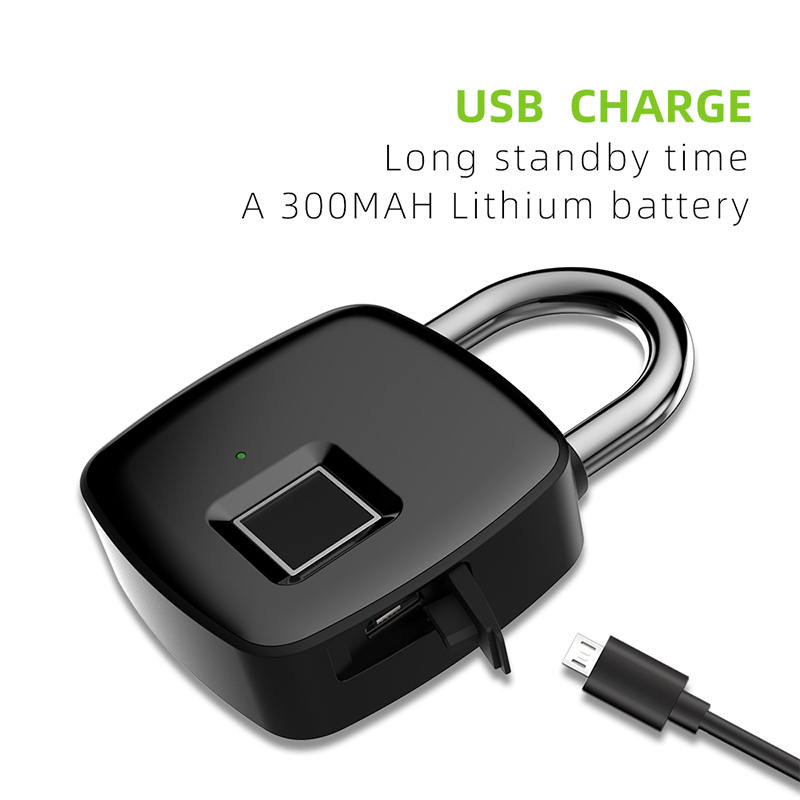

> Battery: 3.7V 300mAh

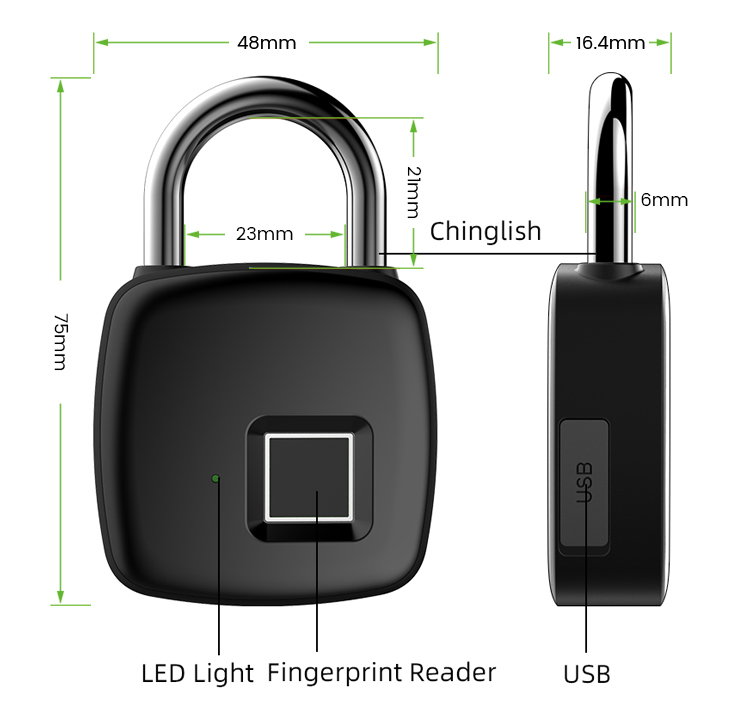

> Dimension: 75*48*16mm

  • Brand:

    S4A
  • Item NO.:

    iLock-M
  • Specifications
  • Wiring Diagram

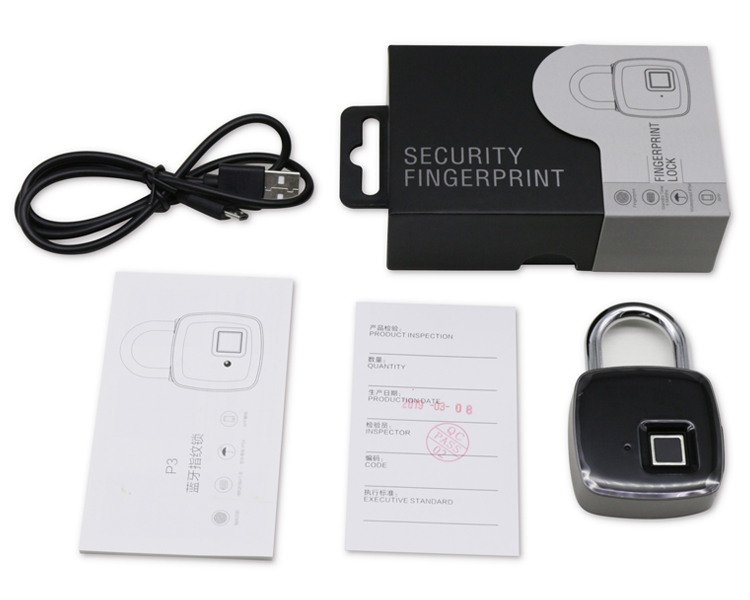

  • Package

Fingerprint lock with USB

Model No.: iLock-M


Resolution

508DPI

ESD

+/-12kV air, +/-8kV contact

FRR

<1%

FAR

<0.002%

Recognize time

<300mS

Battery

3.7V 300mAh

Charger

5V 1A

Unlocking operating current

180MA

Motorless operating current

3MA

stand-by current

16uA

Waterproof

IP65

Support

360 degree angel fingerptint recognize


Fingerprint lock with USB

Fingerprint lock with USB

Fingerprint lock with USB
