> Material: ABS+PC
> Workable tags: 125kHz EM rfid tags
> Capacity: 80,000 logs
> Impact capacity: 32,000 logs
> Fingerprint capacity: 225 pcs
> Size: 132x57x25mm
Brand:
S4AItem NO.:
Z-6500FGuard Clocking System with LCD display
Model No.: Z-6500F

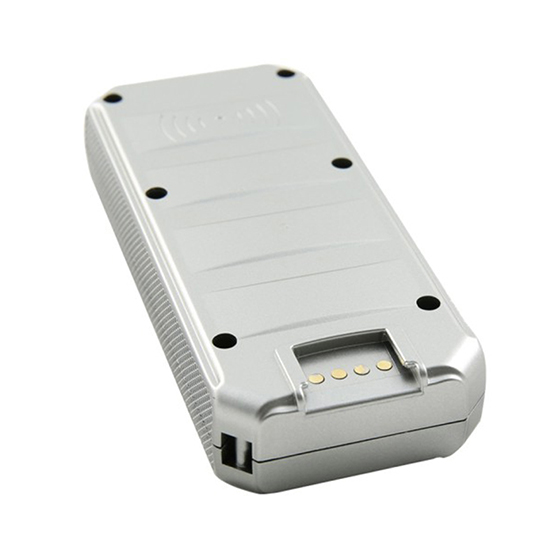

USB cable (Pogo Pin Contacts)

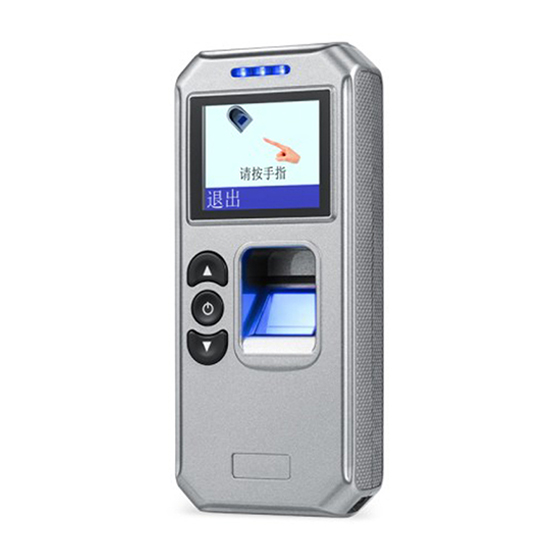

Z-6500F Fingerprint LED Lighting Guard Tour System
An absolute surprise product is a combination of fingerprint, custom event definition, LED lighting and built-in rechargeable battery Simple fingerprint function to avoid fake time and attendance; 50 custom event can be defined to record more detailed and accurate patrolling data.
Features:
> 500 pcs exception event can be defined to record more detailed and accurate patrolling data ;
> 2 types of incident mode is optional. Single check spot incident and 3 check spot incident type
> 2 in 1 USB cable make battery charging and data downloading more easy and convenient ;

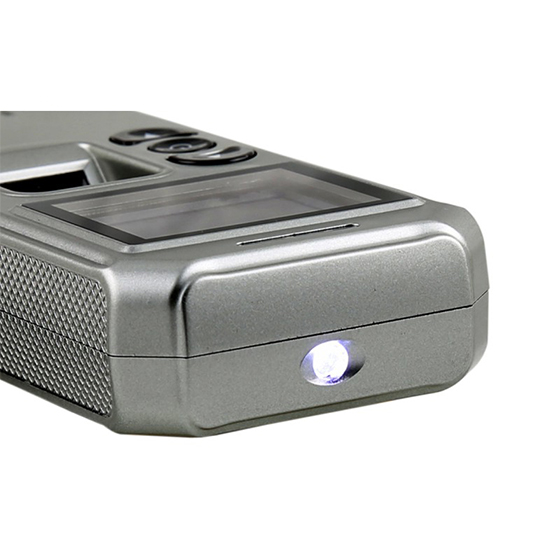

> LED lighting is good for night and dark place patrol activities.
> Language ( Simplified Chinese and Traditional Chinese, English)switch freely
|
Reading Method |
125KhZ RFID EM tags |
|
Display |
TFT 1.8 ' 128*160 High-definition image display |
|
Event |
500 Pieces |
|
Storage capacity |
80,000pcs |
|
Impact record capacity |
32,000pcs |
|
Communication |
USB pogo pin contacts |
|
Direction |
LED+Vibration+LCD |
|
Baud rate |
115200Bps |
|
Dimension |
132mm x 57mm x 25mm |
|

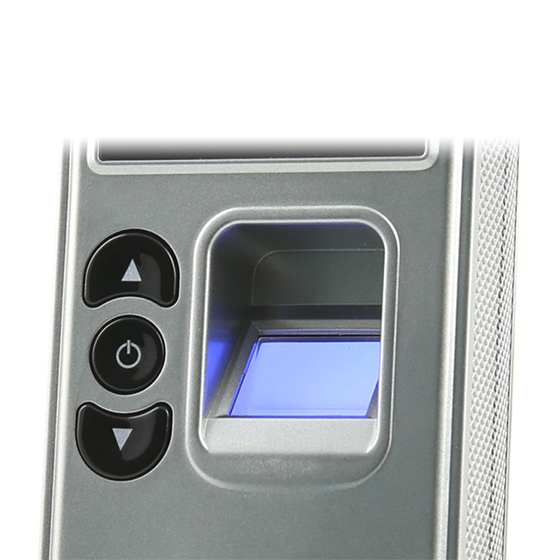

Fingerprint Reader |
Optic |
|
Fingerprint capacity |
225 pcs |
|
Working temperature |
40℃ to 70℃ |
|
Working humidity |
0 to 95% |
|
IP rating |
IP 65 |
|
Power consumption |
10,000 times scan tag operation available |
|
Battery |
1,000mAh built-in rechargeable lithium battery |
|
Battery level |
5 levels display |
|
Net weight |
144g |
S4A_Datesheet_Fingerprint LED Lighting Guard Tour Probe
> Reading: 125kHz EM card> Data transmission: 3G network/Magnetic USB cable> Fingerprint: Semiconductor fingerprint reader> Camera: 2.0 mega pixel back camera> GPS: ≤10 meters positioning precision> Storage capacity: 10,000 logs> Item for each spot: 30 pcs(Expandable to level 4 menu.)> Battery: 2700mAh built-in rechargeable lithium batter
> GPS tracking, locating patrol site> GPRS real time data transmission> Flashlight+2.0 mega pixels camera> Electronic railing, intrusion alarm> 5 modes LED lighting> Display: TFT 1.8 ' High-definition color display
> Reading Method: Auto-induction> Sensor Frequency: 125kHz EM ID tag> Material: ABS plastic+rubber handle> Direction: LED+Vibration> Storage capacity: 80,000pcs> Impact record capacity: 32,000pcs> Battery: 1200 mAh built-in li-ion(rechargeable) battery
> Structure: IMD, super wear resistant> Instruction push: Real time message> Data trsnsmission: TCP/IP> Reading: Fingerprint/Staff card> Fingerprint: Optical. 255cs> Screen: 2.4' TFT screen
> Material: Metal> Storage capacity: 800,000 logs> Impact(drop) storage capacity: 32,000 logs> Size: 130x40x25mm
> Material: Metal> Storage capacity: 80,000 pcs> Impact storage capacity: 32,000 logs> Size: 130x40x25mm
> Material: Metal> Storage capacity: 80,000 pcs> Impact storage capacity: 32,000 logs> Size: 130x40x25mm
> Material: ABS+PC+rubber coating> Storage capacity: 80,000 logs> Impact Records Capacity: 32,000 logs> Size: 131x56x20mm> Workable tags: 125kHz EM rfid tags
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
