>Material:cast iron + stainless steel
>Scope of application:framed door, wooden door, etc.
Brand:
S4AItem NO.:

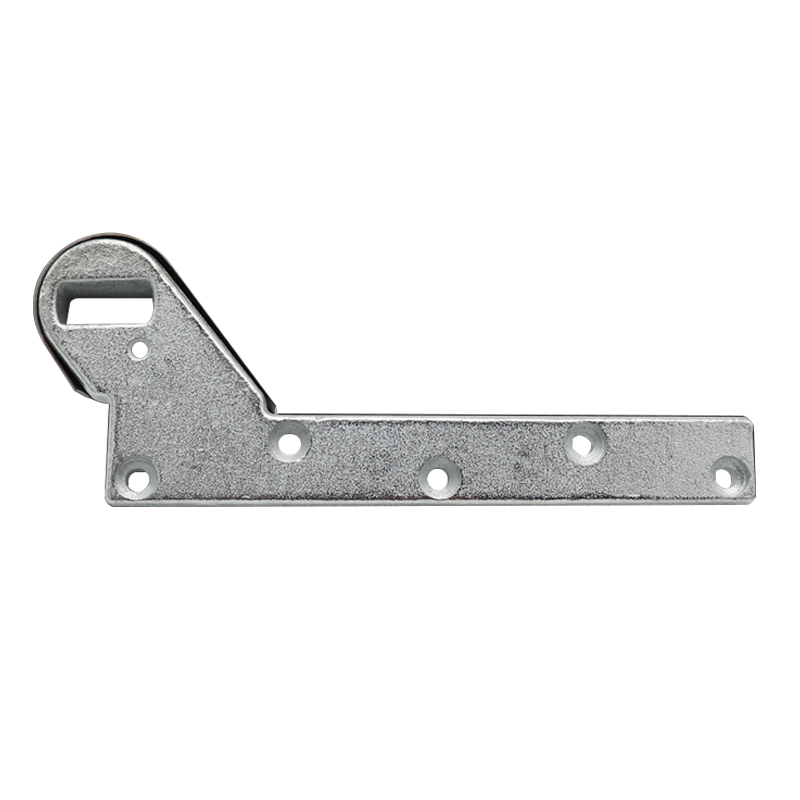

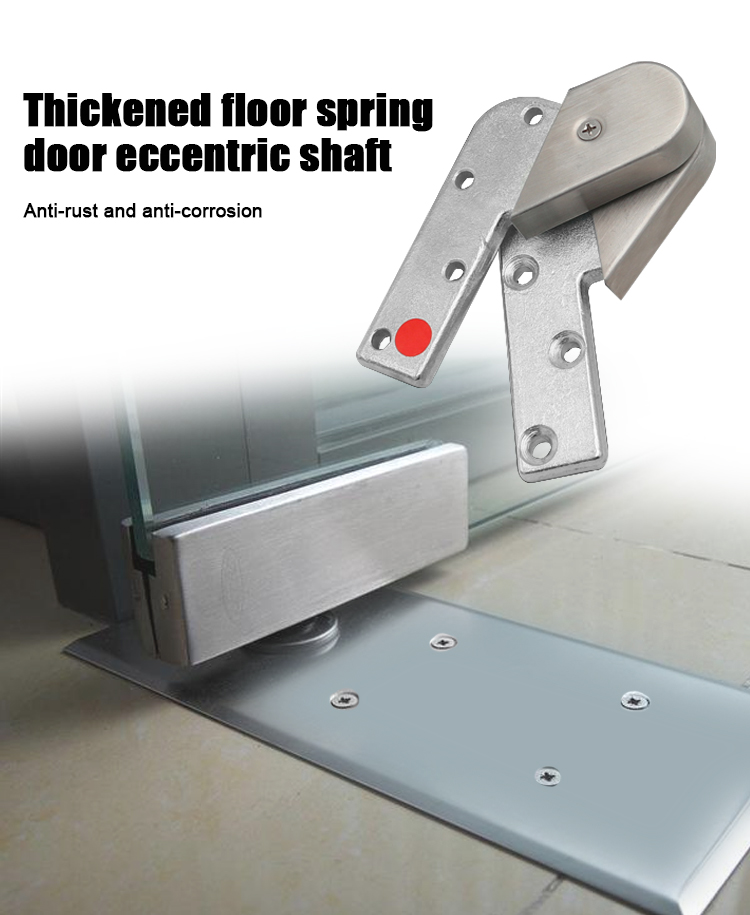

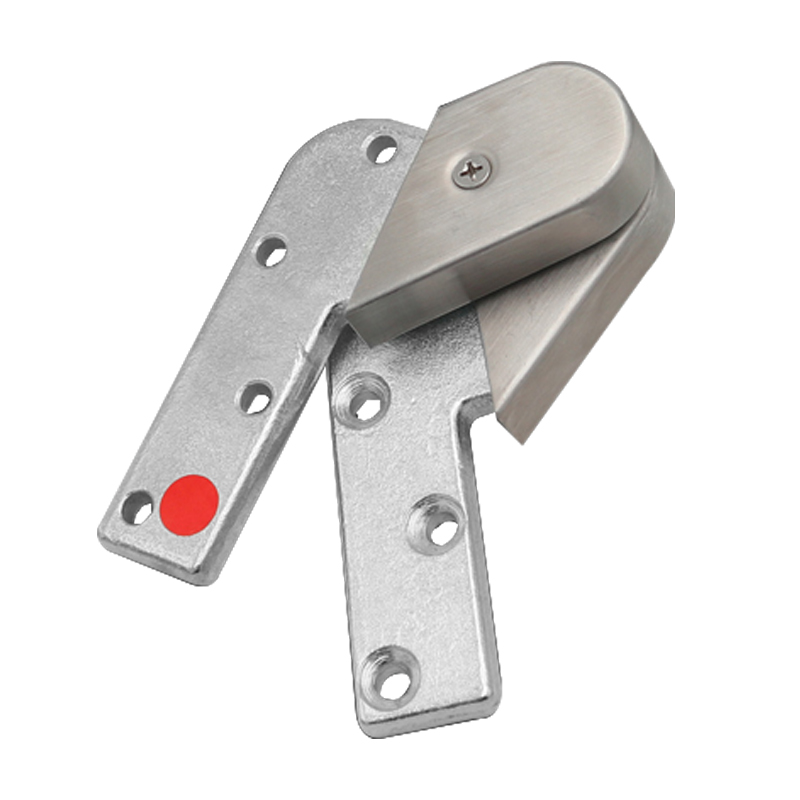

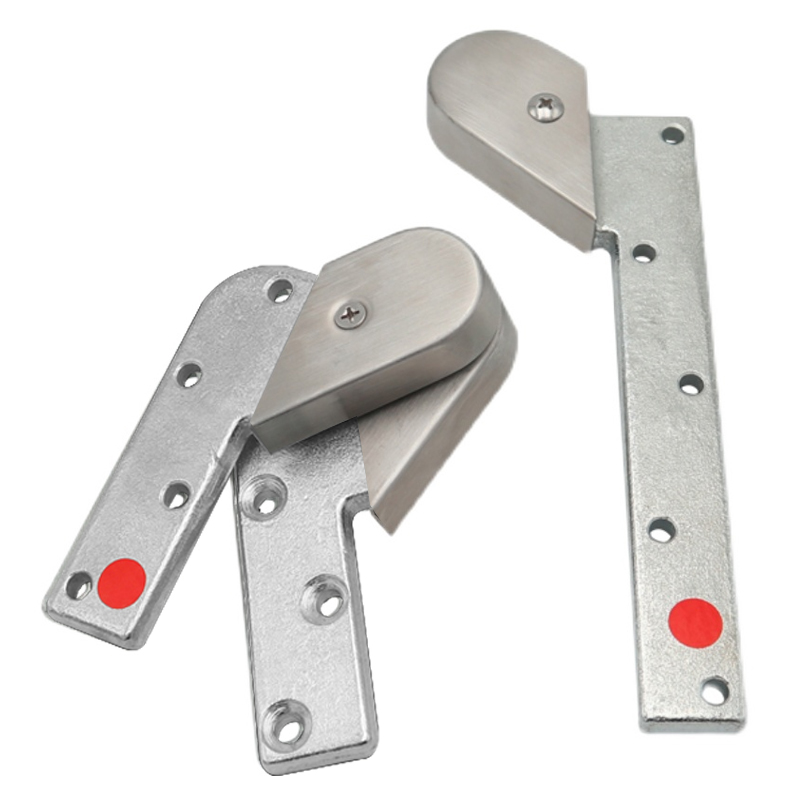

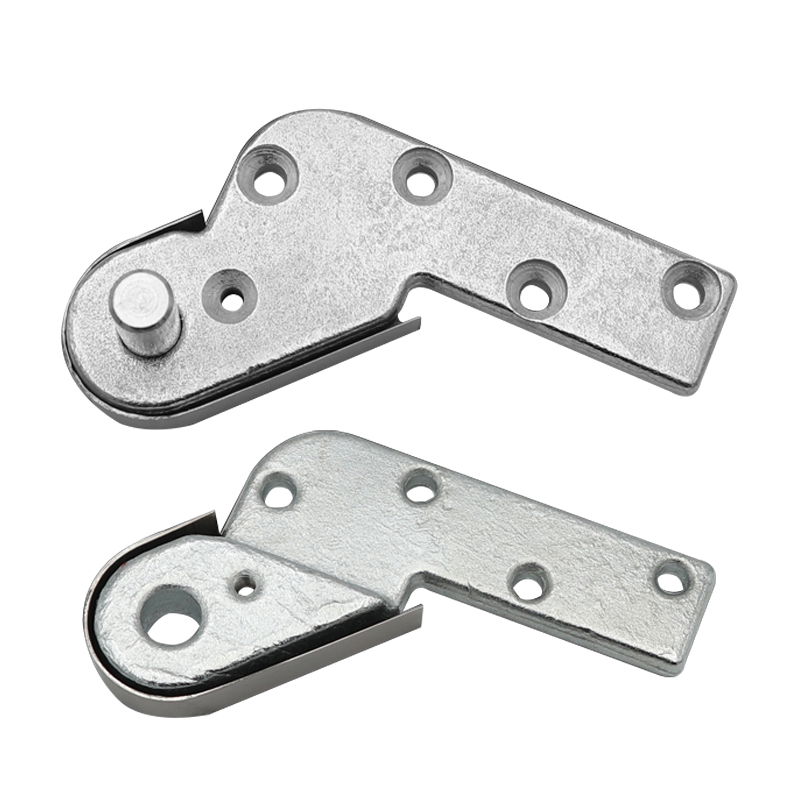

D180-ESEccentric Shaft Floor Spring Fittings Frame Door Shaft
Model No.: D180-ES
What is a floor spring ？
A floor spring is actually a hydraulic door closer, except that the device that compresses the spring is a worm gear instead of a rack and pinion. Because the worm gear can rotate forward and backward, the floor spring can be used for doors that open in both directions, while the door closer can only be used for doors that open in one direction. The technical key to the floor spring is the load-bearing seat on the lower part of the spindle, which determines the load-bearing level of the floor spring. Because the ground spring for two-way opening is not like the door closer, the ground spring needs to carry the weight of the door body, so that the weight of the door body plays a decisive role in the selection of the ground spring, but of course, the door width and wind pressure are also very important for the selection of the ground spring model.
Type | 180°Hinge |
Material | cast iron + stainless steel |
Surface | Galvanized arm, brushed decorative cover |
Scope of application | framed door, wooden door, etc. |

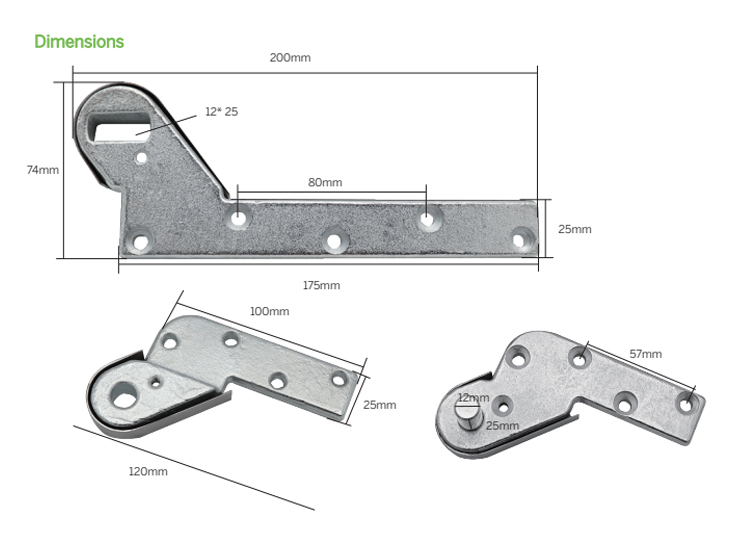

S4A Datesheet_Eccentric Shaft Floor Spring Fittings Frame Door Shaft

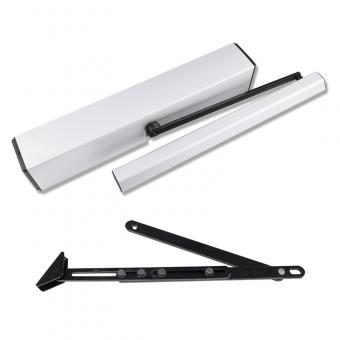

> Maximum door weight: 180kg > Maximum door width: 1200mm > Opening and closing time: 6~12S > Power supply: AC110-220V±10% 50/60HZ > Rated power: 55W
> Maximum door weight: 180kg > Maximum door width: 1200mm > Opening and closing time: 6~12S > Power supply: AC110-220V±10% 50/60HZ > Rated power: 55W
Stainless Steel 304 Electric RIM lock
>Unlock Ways: Fingerprint + IC Cards + Mechanical Key>Support Lock Body: Dual Bolt Lock Body>Handle Material: Zinc Alloy ( including decoration circle )
Dual Voltage Operation: Compatible with both 12V and 24V power sources for easy integration into fire safety and access control installations. Emergency Door Release: Securely holds doors open under normal conditions and automatically releases them during emergencies or power interruptions. Compact Armature & Magnet Design: Precise magnetic parts measuring 61×50 mm paired with a 61×52 mm mounting plate for stable door holding. Durable Metallic Housing: Constructed from high-quality metals to withstand long-term commercial and industrial use. Fire Safety Compliance: Ideal for installation on fire doors, emergency exits, and safety barriers in commercial buildings.
>: Dimension: 115x40mm>Current Rating: 3A,36VDC Max> Output: NO, NC, COM

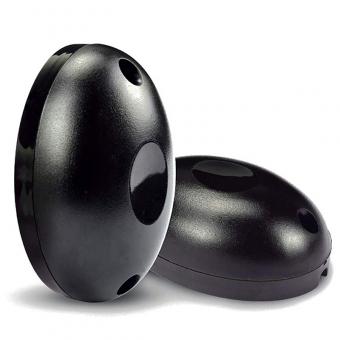

> Wave length: 940nm> Operating Voltage: 12-24V DC> Detection distance: ≤20M> Frequency: 1.92KHz> Waterproof IP65
>Size:79x125x19mm>Material: Aluminum alloy frame>Power supply:12V> Support system:Android 4.3/I0S7.0 above> Stand-by current: ≈15mA
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
