Brand:
S4AItem NO.:

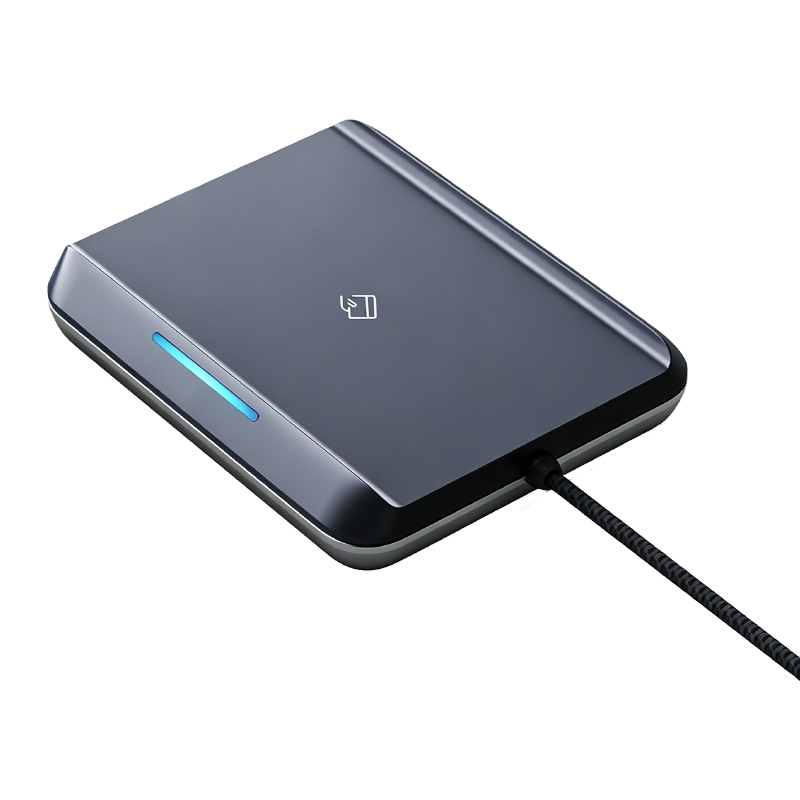

E5E5 TTHotel TTLock Card Encoder & Gateway
The E5 is a desktop smart lock encoder and management gateway designed for TTHotel systems and TTLock APP environments. Operating on a 5V 500mA power supply via USB connection, it supports IEEE 802.11 b/g/n wireless standards for reliable network integration. Constructed from durable ABS plastic with compact dimensions of 110 x 90 x 21.3 mm, the E5 streamlines IC card issuance for TTHotel lock systems without requiring an extra G2 Wi-Fi gateway for card locks, offering an efficient management solution for hotels and apartments.
Parameter
Specification
Model Number
E5
Product Type
Card Encoder / Gateway
Compatible Systems
TTHotel, TTLock APP
IEEE Standard
802.11 b/g/n
Communication Interface
USB Interface
Power Voltage
5V 500mA
Housing Material
ABS Plastic
Dimensions

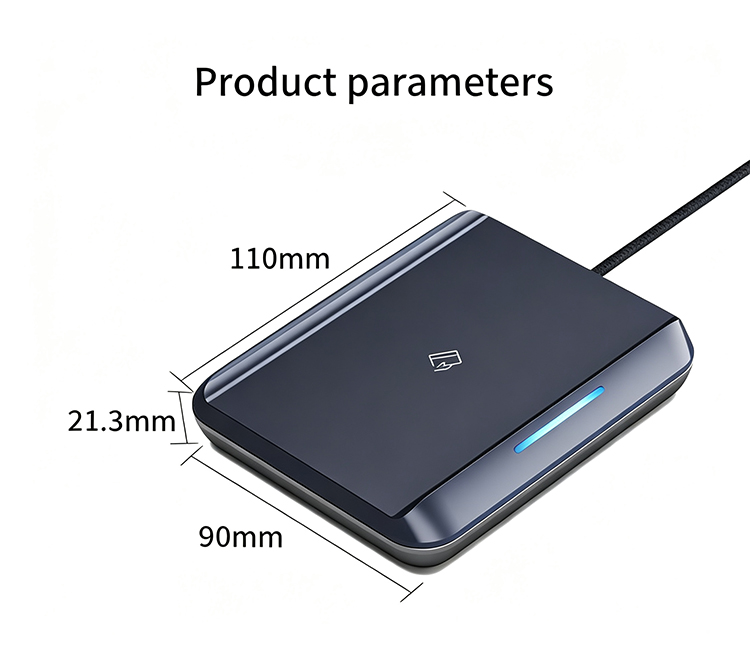

110 x 90 x 21.3 mm
TTHotel Requirement
Card locks do not require G2 Wi-Fi gateway; passcode locks require G2
TTLock Requirement
Requires pairing with G2 Wi-Fi gateway
Type: Smartphone Storage: Cloud Function 01: TTlock app wifi gateway Function 02: Bluetooth to wifi gateway
>Material:ABS plastic >Battery model:CR2032 button battery >Sensing distance:Maximum 22mm
>Size: 110x110x35mm >Network: 4G (TD-LTE) >Power input: 5V/500mA
> Network: WiFi 2.4G > IEEE standard: 802.11 b/g/n > Power interface: Type-C > USB Power input: DC 5V/500mA
>Compliant with Bluetooth 4.0 BLE standard >Support smart door lock App to open the door >Built-in RTC clock chip
>Power Input:5V/500mA >RF Frequency:13.56Mhz >Size:70x70x26mm
>Network port interface:RJ45 >Network port rate:10M/100M >IEEE standard:802.3
Application: TTLOCK App locks Material: ABS Plastic Battery: CR2032 Voltage:3V
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
