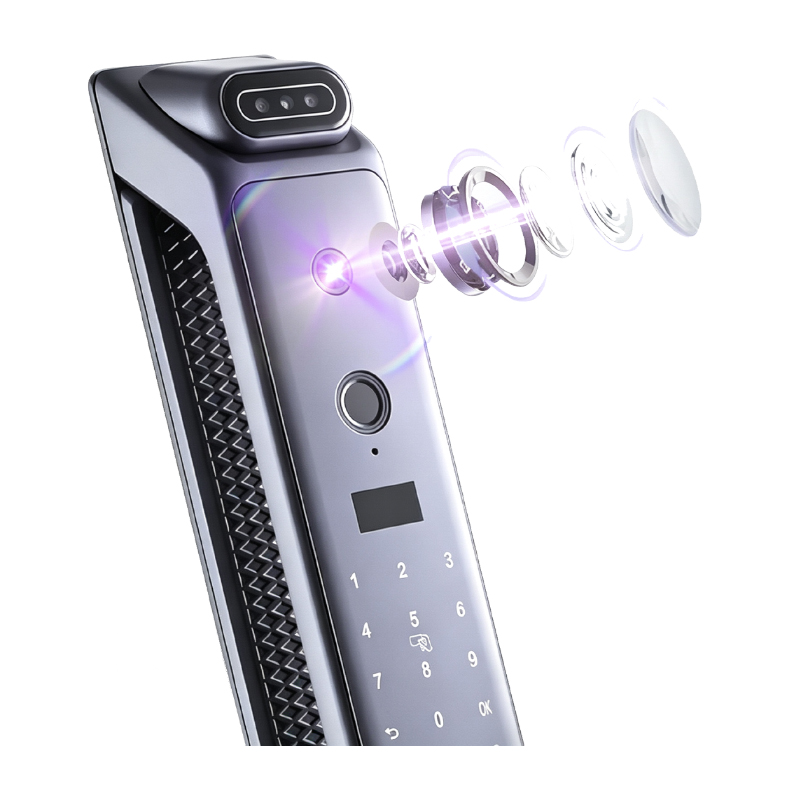

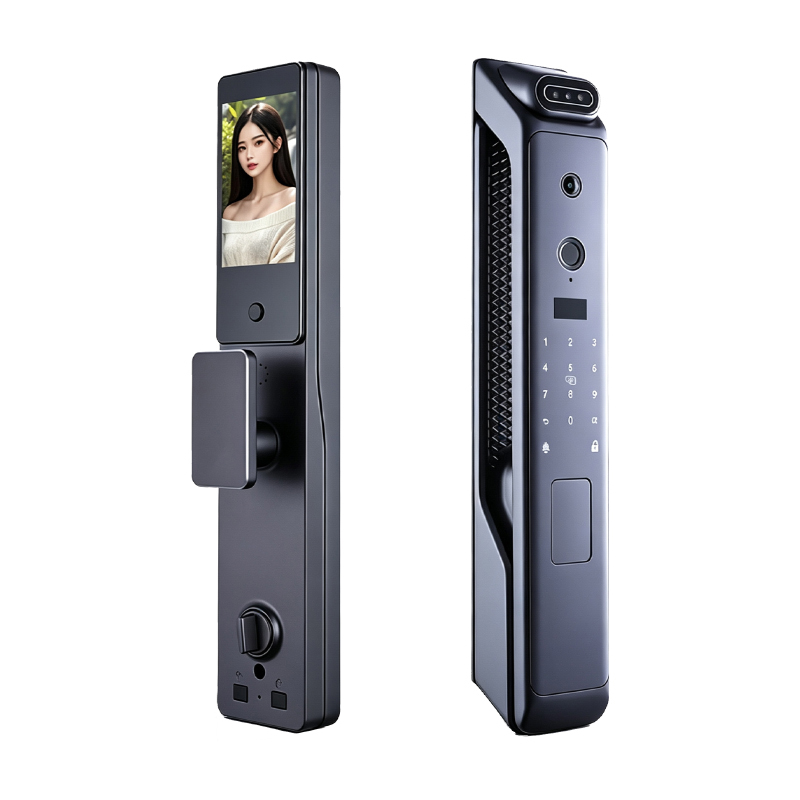

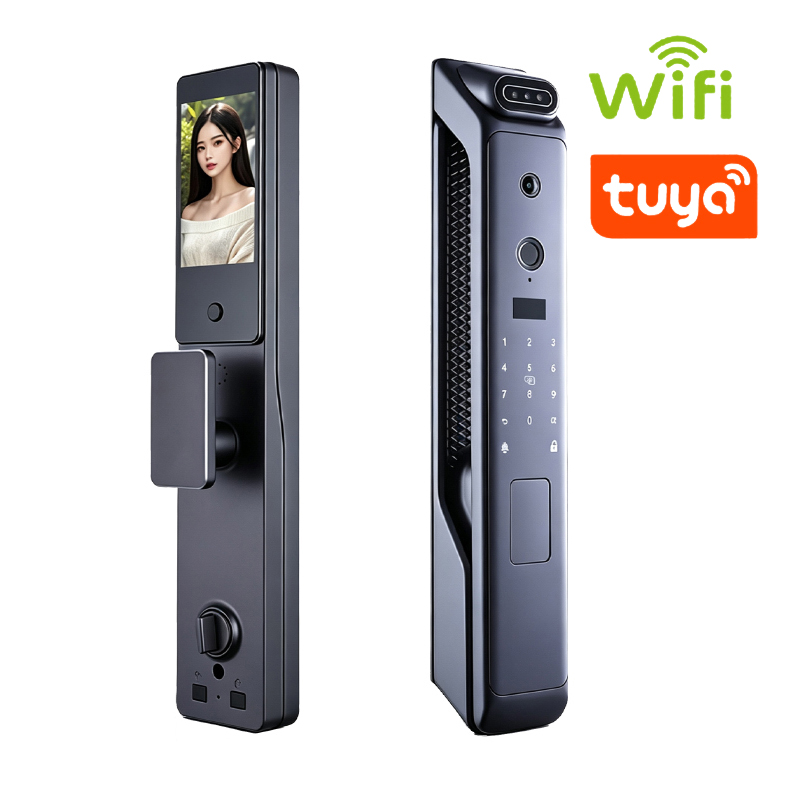

D80D80 Fully Automatic 3D Facial Recognition & Palm Vein Smart Lock
The D80 is a high-security fully automatic smart door lock integrating 3D facial recognition, palm vein verification, and Tuya remote video intercom capabilities. Crafted with an all-aluminum alloy body and a Class C lock cylinder, it offers fast identification under 0.5 seconds with exceptional accuracy. Powered by a high-torque motor and a long-lasting 5000mAh rechargeable lithium battery with emergency Type-C support, the D80 provides comprehensive access security and effortless entry for modern homes.

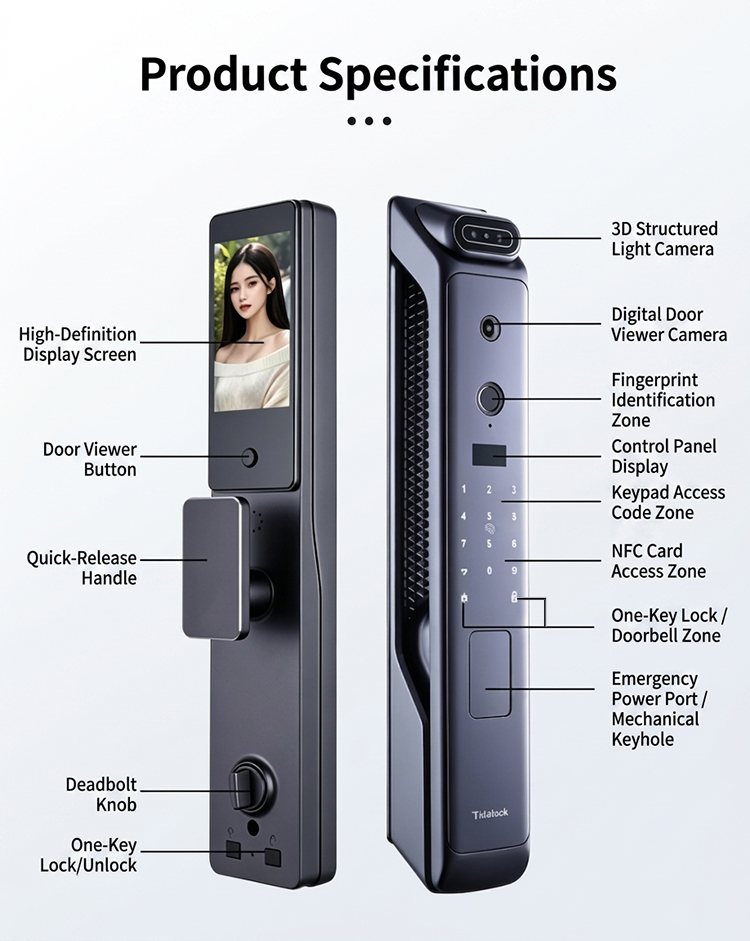

Parameter
Specification
Model
D80
Unlocking Methods
3D Face, Palm Vein, Fingerprint, Password, IC Card, Mechanical Key, Tuya Remote Video Intercom APP
Cylinder Grade
Class C
Main Material
Aluminum Alloy
Power Supply / Battery
5000mAh Rechargeable Lithium Battery (8.4V Operating Voltage)
Emergency Power
Type-C Interface
Recognition Speed
≤ 0.5 sec.
False Acceptance Rate (FAR)
< 0.0001%
False Rejection Rate (FRR)
< 0.01%
Keypad Type
14-Digit Touch Keypad
Door Thickness Range
45mm – 120mm
Product Dimensions
Front Lock: 420*78*60mm | Rear Lock: 400*76*28mm
Operating Environment
Temperature: -25°C to +70°C | Humidity: 15% - 90% RH
>Material:Aluminum Alloy+PC+Arcylic>Unlock Way:Fingerprint/Passcode/IC Card/APP/key>Product Dimension:76x234x24mm
>5 in 1 unlocking methods: Fingerprint + Pin code + key + card + APP
>Material:aluminum>Quiescent Current:50 microphones>Working current:300mAh (capacity)>Open face ability:<= 100>External dimensions:408x80x31mm
>Material:aluminum>Quiescent Current:50 microphones>Working current:300mAh (capacity)>Open face ability:<= 100>External dimensions:408x80x31mm
>Fingerprint storage capacity:110 pieces>Scanning time:<0.5 s>Unlocking method:fingerprint/password/card/app
Product Material:aluminum alloy/rust iron Types of languages :13 Password Type : Time limited/temporary password /Dynamic password Emergency power supply : Type-C Card password capacity : 150 Fingerprint capacity:100pcs
Palm Vein & Advanced Facial Recognition: Features financial-grade live palm vein unlocking and precision facial identification powered by an advanced algorithm. IPS High-Definition Display & Camera: Ultra-wide viewing angle IPS screen with radar-triggered loitering capture and automatic mobile app notifications. High-Torque Motor & ST Chip: Powered by a high-performance STMicroelectronics chip and high-torque motor for reliable, fast lock engagement. Durable Aluminum Body & CNC Craftsmanship: Robust full aluminum alloy construction with corrosion-resistant coating (120+ hours salt spray tested) and CNC-carved handle. 5000mAh Rechargeable Power Supply: Long-lasting lithium battery with emergency Type-C backup power support.
7-in-1 Versatile Unlocking: Supports palm vein recognition, 3D facial recognition, fingerprint, password, IC card, mechanical key, and Tuya remote video intercom integration. 4.5-Inch HD Widescreen Display: Features a high-definition clear large screen for effortless real-time monitoring and intuitive operation. Anodized Precision-Carved Aluminum Shell: Built with a high-grade carved aluminum alloy body with an anodized finish for exceptional wear resistance and a premium metal texture. Heavy-Duty High-Torque Motor: Equipped with a powerful motor mechanism for smooth, reliable, and swift locking engagement. 5000mAh Rechargeable Lithium Battery: Delivers long-lasting power for extended daily operation, supported by a Type-C emergency power port.
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
