>Operating Voltage:AC 220V±10%
>Power:50~60Hz
>Door opening speed:300-550mm/second (adjustable)
>Closing speed:200-500mm/second (adjustable)
>Opening hours:1-10 seconds (adjustable)
Brand:
S4AItem NO.:

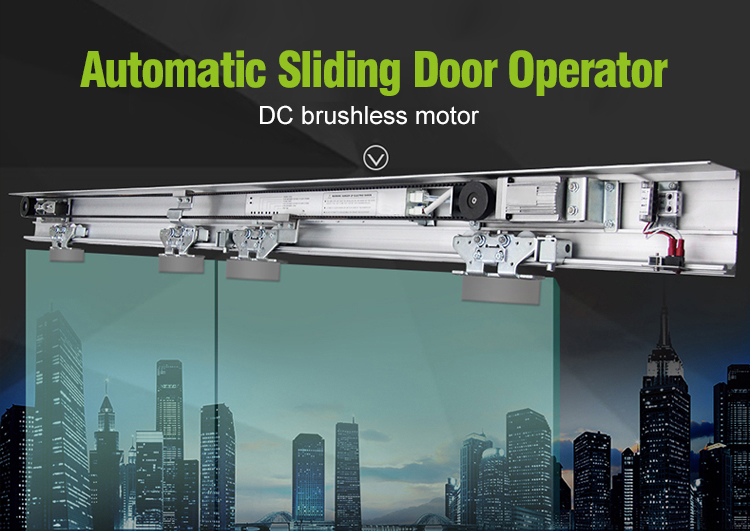

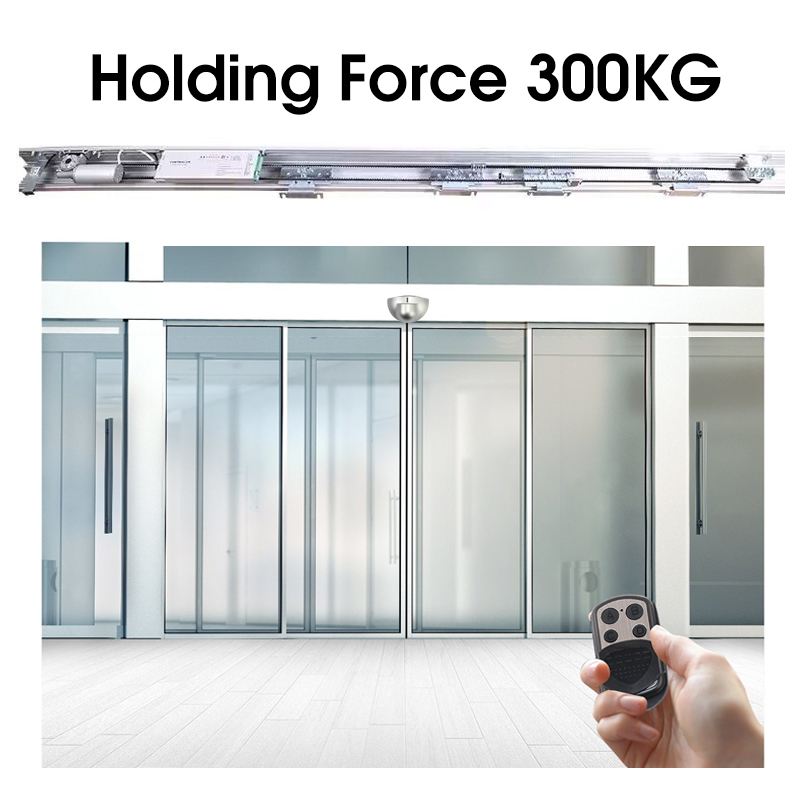

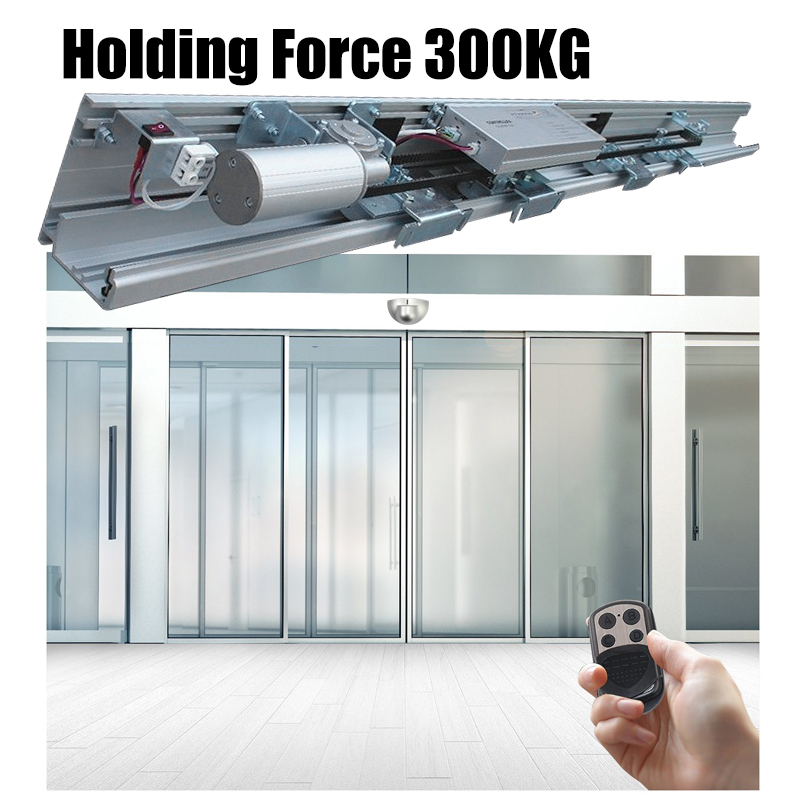

SM170Automatic Sensor Sliding Door Opener Glass/Wooden Door Operator Manufacturer with Holding force 300KG
Model No.: SM170
Portal form | Single opening | Double opening |
Support door weight | 300KG | 2*250KG |
Net opening width | 1-2.8 meters | |
Closing force | > 100 newtons | |
Operating Voltage | AC 220V±10% | |
Power | 50~60Hz | |
Door opening speed | 300-550mm/second (adjustable) | |
Closing speed | 200-500mm/second (adjustable) | |
Opening hours | 1-10 seconds (adjustable) | |
Positive power consumption | < 100 watts | |
Operating temperature | -20°C ~ +55°C | |
Operating noise | ≤55dB | |
> Aluminum shell > Security anti-leakage switch > Remote control x2 > Microwave Sensor
> Door's Weight: 120kg> Material: Aluminum alloy
> Material: Aluminum alloy> Dimensions: 200x43x28mm
>Luxury 10-12mm thick tempered clear glass>Advanced fully frameless heavy glass design>Reversible for left or right door opening installation>All the hardware is made of high grade stainless steel 304,or 201.>customized length track is avaiable
>Product specifications:150x60x35mm>External materials:Galvanized cast iron>Internal materials:High quality polyester, aluminum alloy bearings
>External materials:Galvanized iron castings>Internal materials:High quality nylon, alloy bearings>Usage type:Automatic doors, sliding doors, framed doors, wooden doors, metal doors
Drive belt type: toothed beltTooth spacing: 8mmBandwidth: 12 mm
Belt width:25Shaft bore diameter:53Material:Stainless Steel
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
