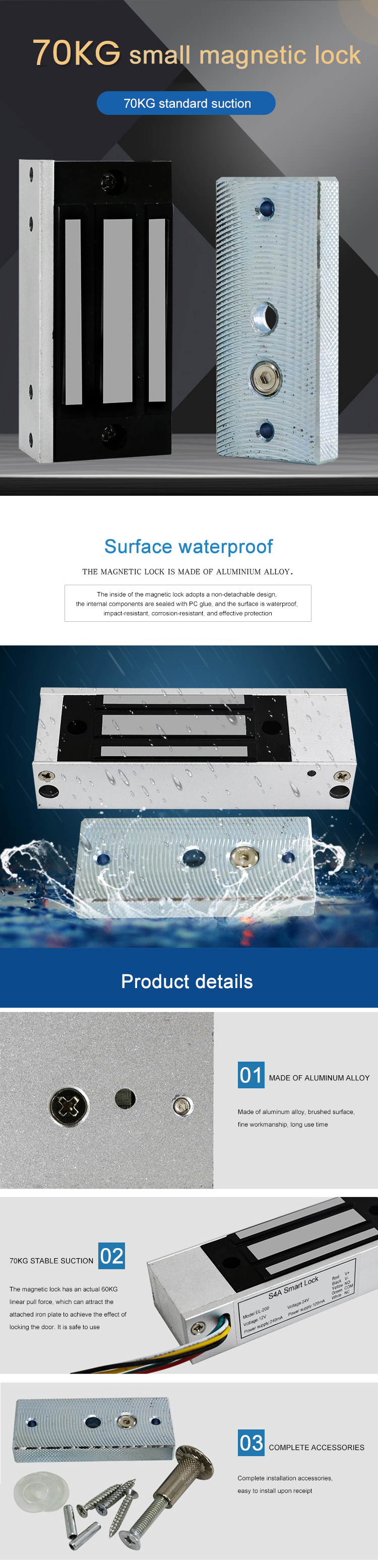

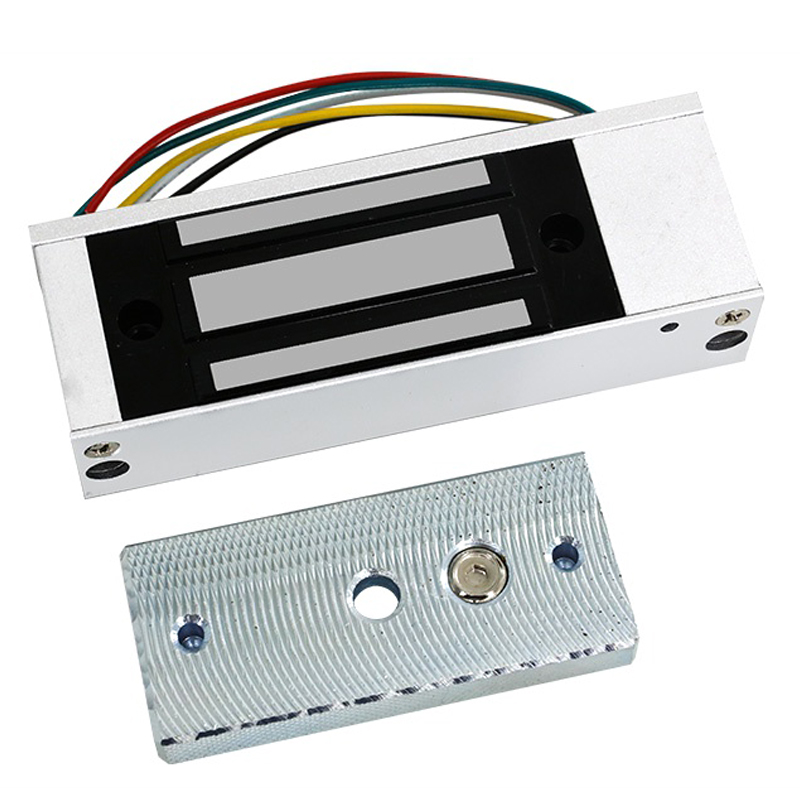

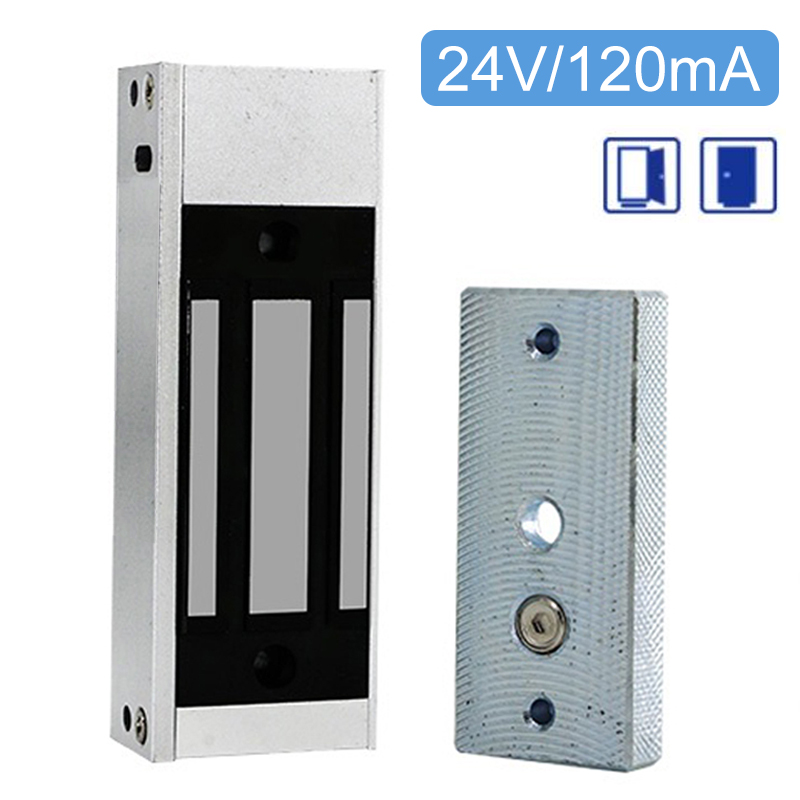

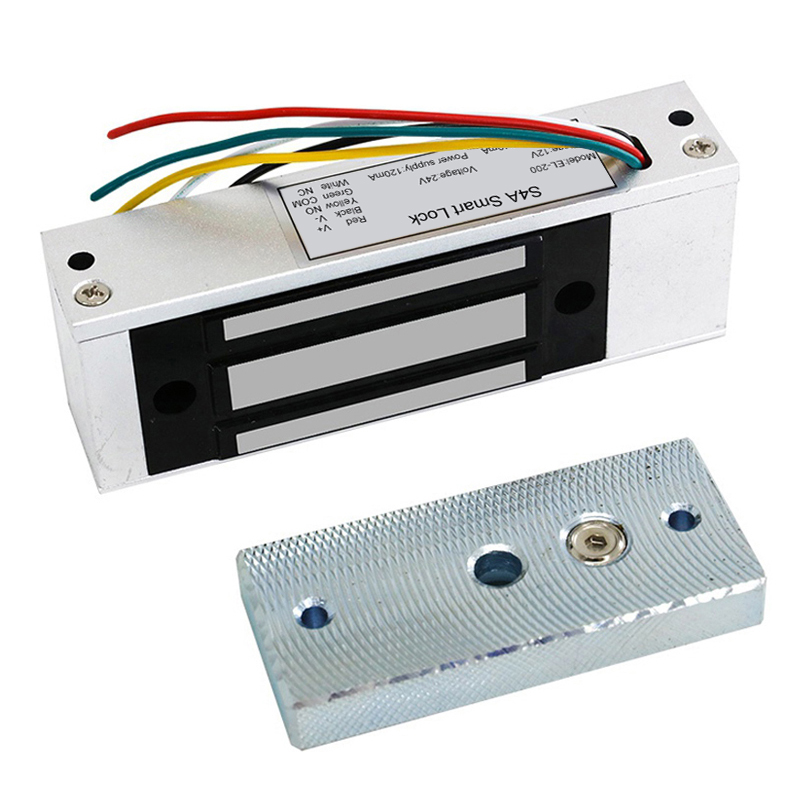

70KG holding force magnetic locks

>Working current: 120mA/240mA
>Safety type: power on to close the door and power off to open the door
>Maximum pull: 70kg linear pull

Brand:
S4A
Item NO.:
EL-200S

Inquire Now

Specifications

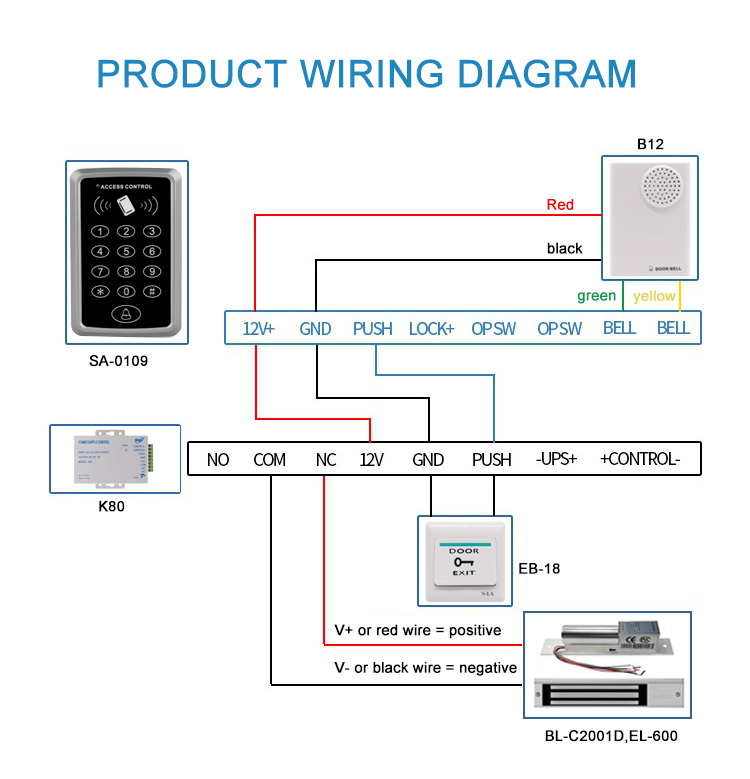

Wiring Diagram
Package
Download

Model No.: EL-200S

What is Electromagnetic Lock?

Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.

S4A Model	EL-200S
Input voltage	DC24/12V
Working current	120mA/240mA
Safety type	power on to close the door and power off to open the door
Maximum pull	70kg linear pull
Lock body treatment	electroplating treatment
Shell material	aluminum alloy shell
Applicable door types	drawers, sliding doors, cabinet doors, etc.
Protection performance	built-in reverse breakthrough protection function

Magnetic Locks

S4A Datesheet_70KG holding force magnetic locks

Download
