How should we choose the door closer? What should be paid attention to when installing the door closer?

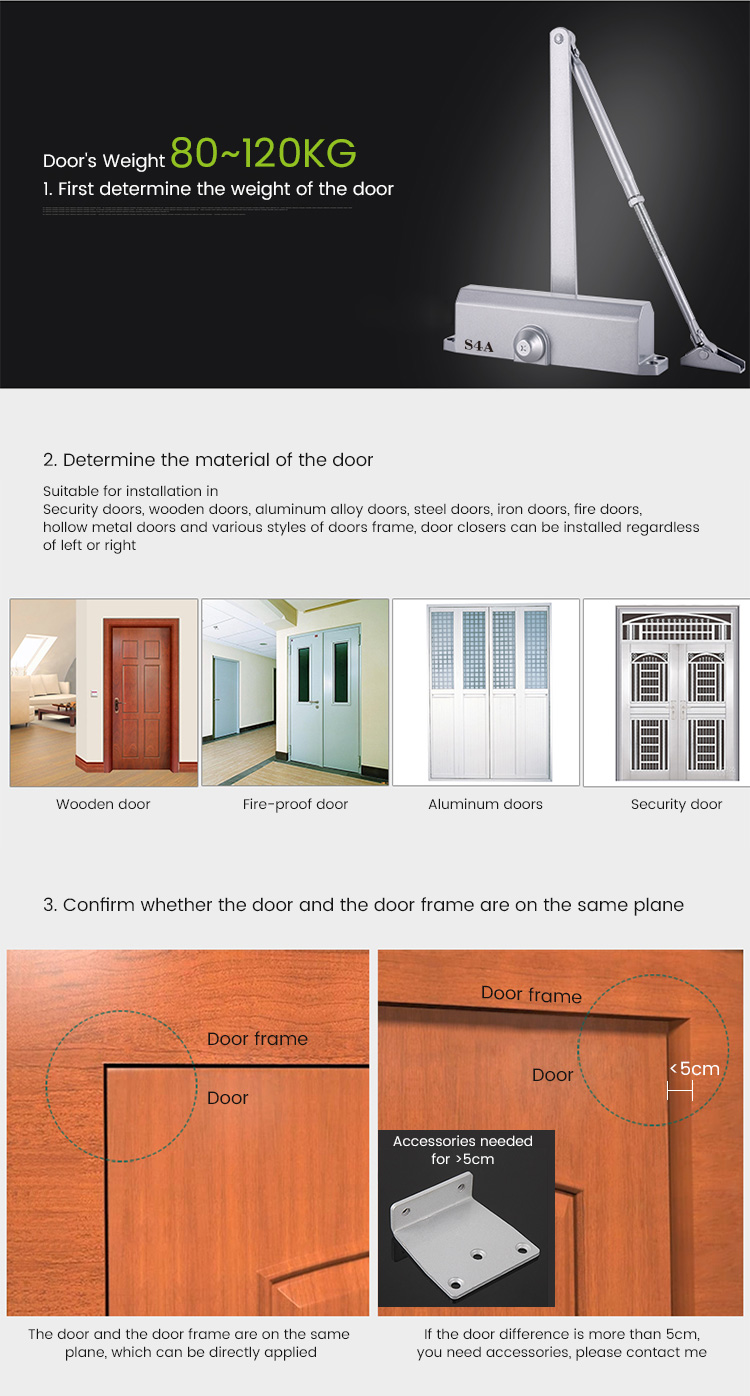

1. Selection of door closers

a. The factors that should be considered when choosing a door closer are the weight of the door, the width of the door, the frequency of opening the door, the application requirements, and the application environment, etc. The weight of the door and the width of the door are the main factors to choose the type of door closer. Common doors include fire doors, wooden doors, aluminum alloy doors, glass doors, steel doors, and so on.

b. Usually, if the weight of the door is small, choose the type with less strength, and vice versa. The frequency of door opening is a factor closely related to product quality. For occasions that are used frequently, it should be required that the product has better sealing performance and long service life.

2. Requirements for the use of door closers

The factors that should be considered when choosing a door closer are the width of the door, the frequency of opening the door, the user requirements and the use environment, etc. The width of the door is the most important factor in choosing the model of the door closer. Usually, the weight of the door is small, and the model with less strength is selected, and vice versa. The frequency of door opening is a factor closely related to product quality. For occasions with frequent use, the product should be required to have better sealing performance and long service life.

a. Is there an automatic door-stop function after opening the door?

b. Damping and buffering function - after the door is quickly opened to a certain position, a damping buffer will be generated, and the damping buffer force and range can be adjusted according to the use requirements; this function is used to prevent the door or lock from colliding with the wall when the door is forced to open quickly, or emergency escape It prevents people from leaning forward and falling to the ground when they lose weight when opening the door quickly.

c. Delayed slow door closing - the door starts to close slowly at a uniform speed from the maximum opening position, and can be adjusted steplessly according to requirements. It is suitable for use in places with frequent access and many people, especially hospitals, where there are doors and passages for the elderly, children, and disabled people to enter and exit.

3. The installation method of the door closer

a. The most commonly used door closer is the exterior door closer, and its installation method is that the door closer is installed on the hinge side and the door opening side. When so mounted, the arms of the closer project outwardly, at approximately 90° to the door frame.

b. The door closer is installed on the door closing side opposite the hinge side. Usually, an extra bracket supplied with the door closer mounts to the arms parallel to the door frame. This usage is usually on exterior doors that open outwards where it is not desirable to install the door closer outside the building. The door's closer body is reverse mounted to the door frame instead of the door, with the door closed on the opposite side of the door from the hinge. This usage can also be used on exterior doors that open outwards, especially those doors that have a very narrow top edge and are not wide enough to accommodate the body of the door closer.

4. Installation steps of the door closer

a. The instruction manual provided with the door closer has an installation sample, so read the instruction first, and determine the installation position according to the door opening direction, the force of closing the door, and the installation dimensions between the body of the door closer, the connecting seat and the door hinge.

b. According to the requirements of the door closing force, the closing force can be changed by reversing the connecting seat 180° or changing the connecting position between the connecting rod and the connecting seat. The greater the distance between the adjustment connecting rod and the center line of the door hinge, the smaller the closing force of the door is closed, and vice versa.

c. According to the position indicated on the installation template, determine the position of the installation screw, and then drill and tap.

5. Problems that may arise during the installation of the door closer

Problem 1: The door leaf cannot be positioned

Solution:

1. Check whether the power supply has a 24v voltage input

2. Check whether the polarity of the power supply is reversed and whether the Exit button is turned on

Problem 2: The door leaf cannot be opened

Solution:

1. Check whether the connecting rod screw of the linkage door closer blocks the door leaf.

2. Check whether the door closer is installed backward.

Problem 3: The door does not open or close properly

Solution:

1. Check whether the installation of the door closer is in place and whether it is tilted

2. Check whether the installation angle of the connecting rod is correct

3. Check whether the lock tongue in the chute is too tight, and add lubricant to adjust.

Author: Written by Anna Zhang from S4A INDUSTRIAL CO., LIMITED
