Classification and working principle of electric mortise locks?

April 27 , 2023

First. What is an electric mortise lock?


1. The electric mortise lock is an electronically controlled lock. Under the premise of the cooperation of the "magnet", the extension or retraction of the "bolt" is driven by current to achieve the function of locking or opening the door.


2. The general electric mortise lock consists of two main parts: the lock body and the lock hole.


3. The key part of the lock body is the "bolt", which cooperates with the "lock hole" to realize the two states of "closed" and "opened".


4. That is, the lock tongue is inserted into the lock hole to close the door, and the lock tongue is out of the lock hole to open the door. Because of the retractable function of the lock tongue, it was dubbed the title of "electric mortise lock".

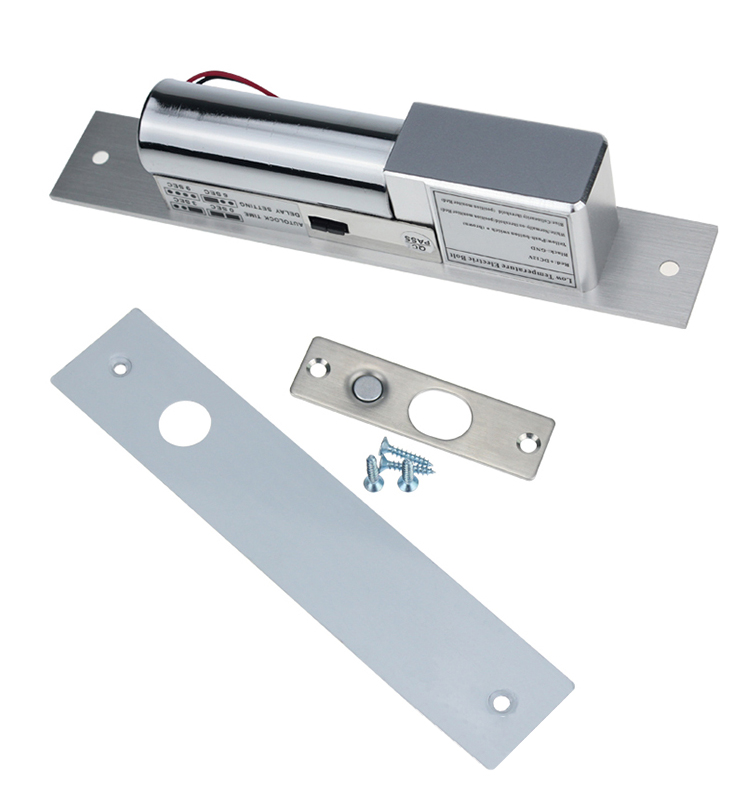

Electric Dropbolt Lock

Second. What are the classifications of electric mortise locks?


1. There are two types of electric mortise locks, unlocking when the power is on and unlocking when the power is off. The former opens the door when the power is on, and the latter is the opposite.


2. The current locks are divided into two cores, five cores and eight cores.


3. Electric mortise locks are actually also called "Electric Strike locks", which are electric locks that open the door when the power is turned off. From the wire, it is divided into two-wire electric mortise locks, four-wire electric mortise locks, five-wire electric mortise locks, and eight-wire electric mortise locks.


Third. Working principle of electric mortise lock


1. The principle of two-wire electric mortise lock: the design of two-wire electric lock is relatively simple. There are two wires, red and black. The red is connected to the power supply +12VDC and the black is connected to GND. Disconnect any wire, the lock will automatically stretch back, there is no microcontroller control circuit.


2. The principle of four-wire electric mortise lock: There are two wires, red and black, the red is connected to the power supply +12VDC and the black is connected to GND. There are also two white lines, which are door magnetic signal lines, reflecting the opening and closing status of the door.


3. The principle of the five-wire electric mortise lock: the principle of the four-wire electric mortise lock is the same, only a pair of opposite signals of the door sensor is added.


4. Eight-wire electric mortise lock principle: same as 5-wire electric mortise lock. Only in addition to the output of the door sensor status, the output of the lock status is also added.

Author:Written by Ms.Vivian He from S4A INDUSTRIAL CO.,LIMITED
