Access control electric mortise lock installation tutorial

February 06 , 2023

Access control management system, as the most common system in weak electricity, is used in daily life. The application of access control system is extremely extensive. There will be access control systems in various residential areas, office buildings, shopping malls and other places. Access control has many functions such as door access control, real-time monitoring, security and anti-theft alarm, etc. It mainly facilitates the entry and exit of internal employees and prevents random entry and exit of outsiders. A cost-effective work environment.

The role of the electric lock in the access control system is mainly to control the opening and closing of the door. At present, the electric locks commonly used in the access control system mainly include magnetic locks, electric mortise locks, and spiritual locks.


1. Basic common sense

2. Installation steps

3. Several installation situations of electric mortise locks for glass doors


1. Basic common sense

The difficulty of access control installation lies in the installation of electric locks. What kind of electric locks to install is mainly determined by the door

So, the basic question is, "what are you?"

Simple points, doors can be divided into glass doors, wooden doors/metal doors (anti-theft doors)

As long as conditions permit, glass doors are recommended to be installed with "electric mortise locks"


2. Installation steps

electric mortise lock

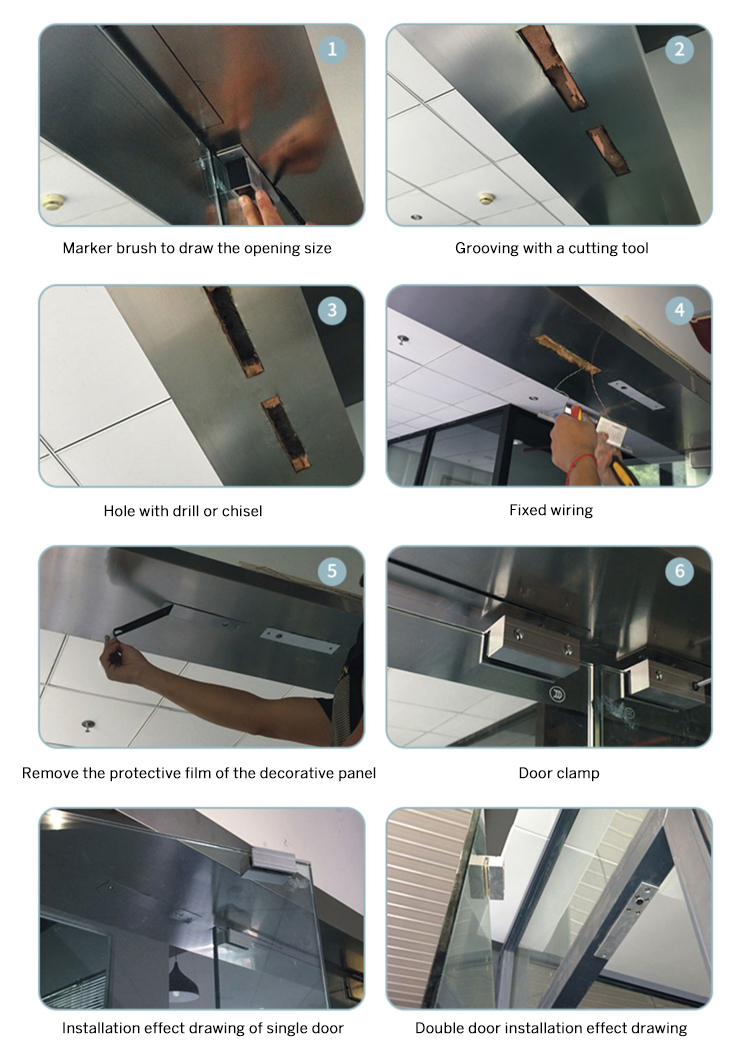

Step 1: Close the door first, determine the center line of the door and the door frame, and then align the sticker inside the electric lock box with the center point and stick it on.

Step 2: Drill holes on the door frame according to the holes shown on the sticker.

Step 3: Install the lock body on the door frame, install the baffle, and fix it with screws.

Step 4: Install the latch on the door.


Note: When installing, the lock body (including the bolt part) needs to be installed in the spine, and then the lock plate (including the lock hole part) should be installed on the upper part of the movable fan. During installation, attention should be paid to adjusting the corresponding positions of the deadbolt and the lock hole, as well as the corresponding positions of the floor spring and the floor lock. For framed glass doors, lock pieces can be used; but for frameless glass doors, the small door clip "lower bracket" must be used to act as the lock hole.


3. Several installation situations of electric mortise locks for glass doors

(1). Both upper and lower sides have edged glass doors

The most common installation method of electric mortise lock

Does not require any additional accessories

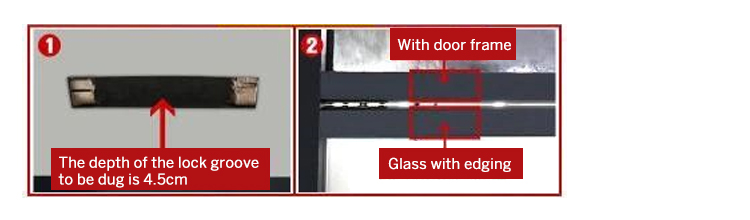

The so-called condition refers to the vertical thickness of the upper door frame greater than 4.5cm


electric mortise lock

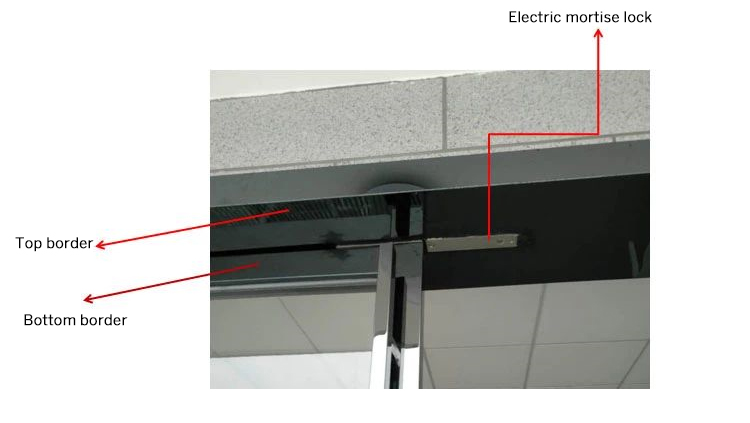

Figure 1: The electric mortise lock is concealed, and the lock body must be buried in the door frame. The above picture is the most common installation method of the electric mortise lock. Both the upper and lower sides of the glass door are bounded.


access control system

(2). Glass door with upper frame and no lower frame

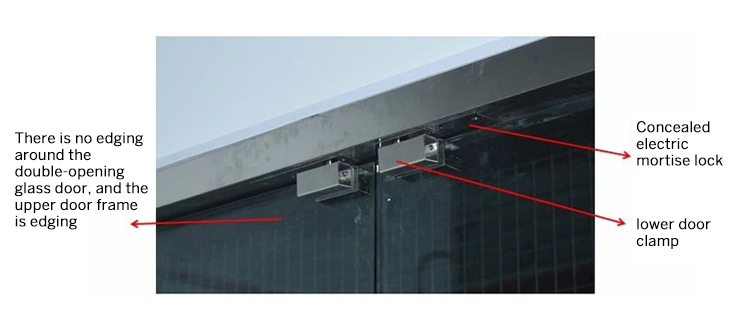

There is no binding on the bottom, so use the "bottom door clip" to fix the lock hole


electric mortise lock


(3). Glass doors without borders up and down

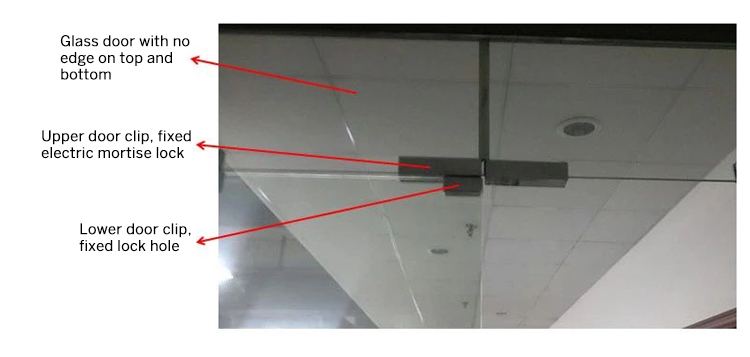

The electric mortise lock needs to be fixed by the "upper door clip", and the lock hole is fixed by the "lower door clip"


electric mortise lock

Notes:

The advantages of electric mortise locks: the concealed installation looks beautiful, and the door can be opened 180 degrees inside and outside.

Disadvantages: It is not as strong and durable as the magnetic lock, and it is more difficult to install and open holes for individual doors.


Author:Written by Ms.Rebecca Fu from S4A INDUSTRIAL CO.,LIMITED
