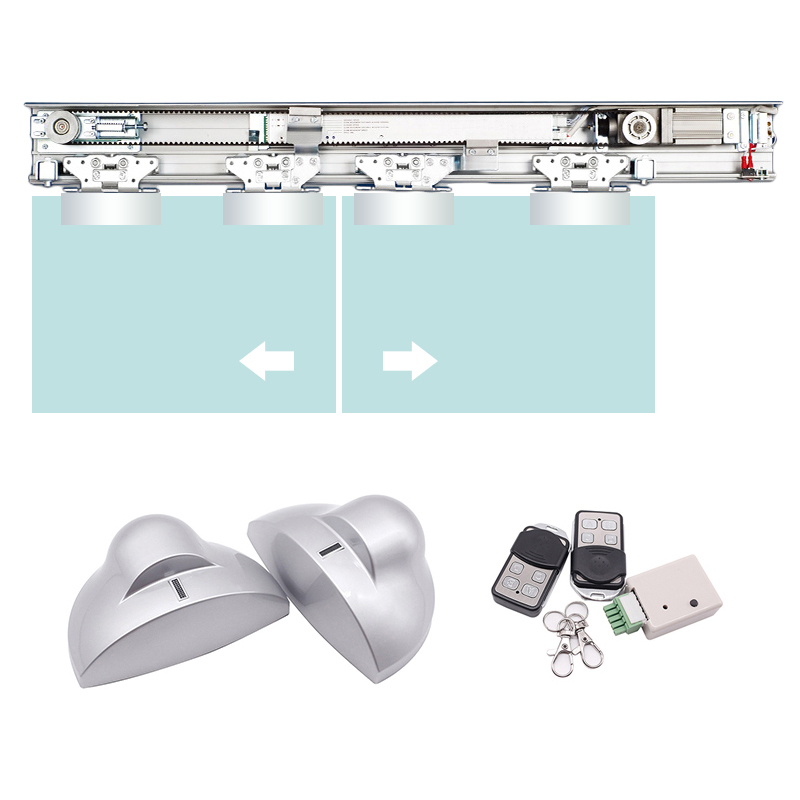

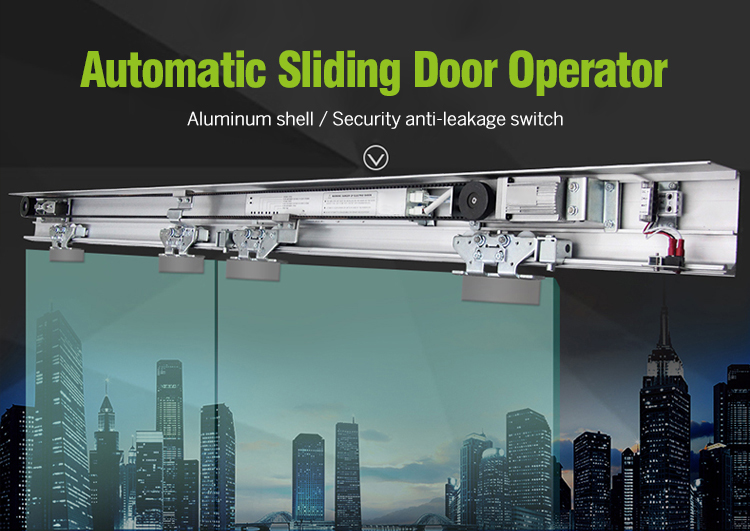

> Aluminum shell
> Security anti-leakage switch

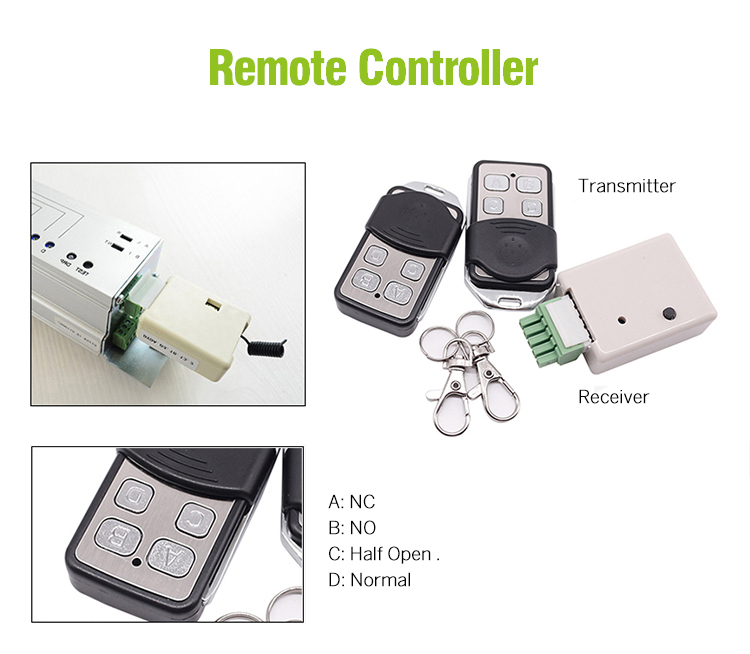

> Remote control x2

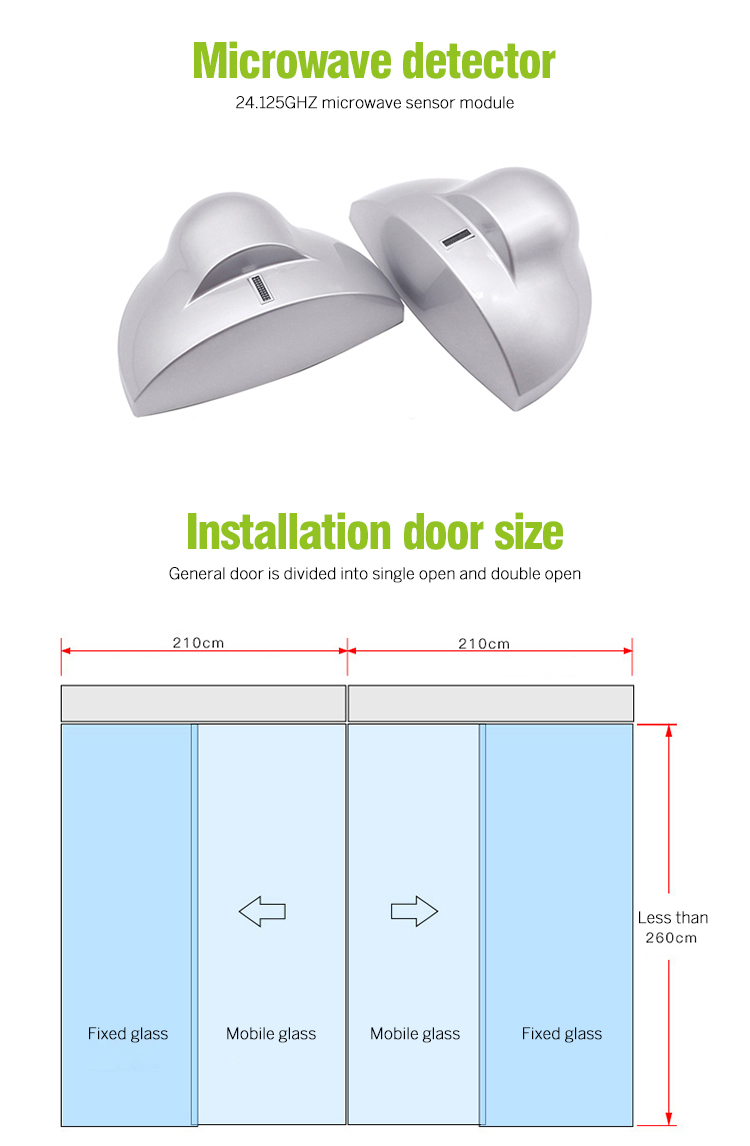

> Microwave Sensor
Brand:
S4AItem NO.:

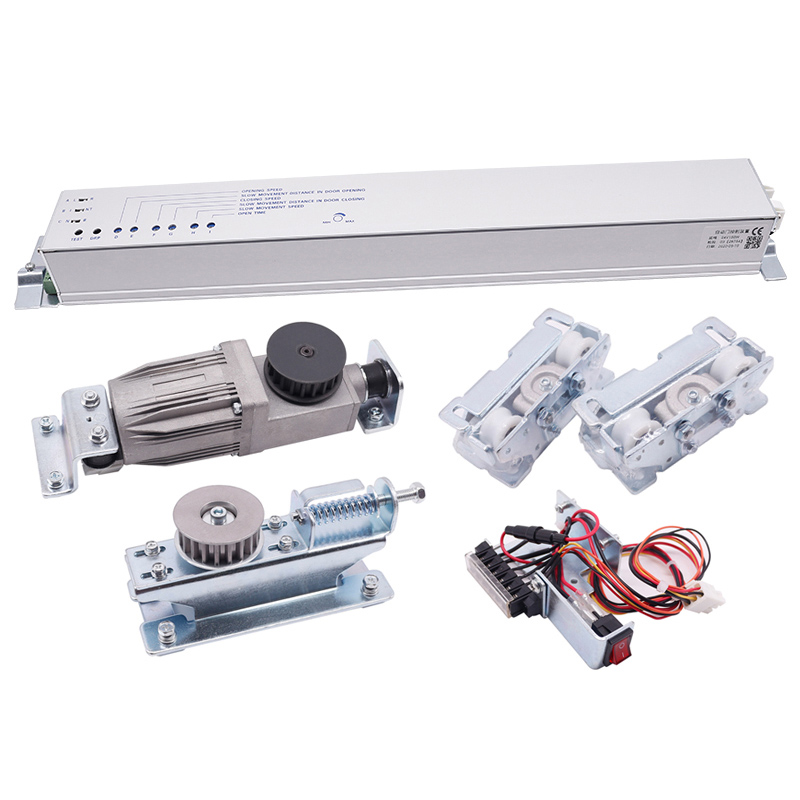

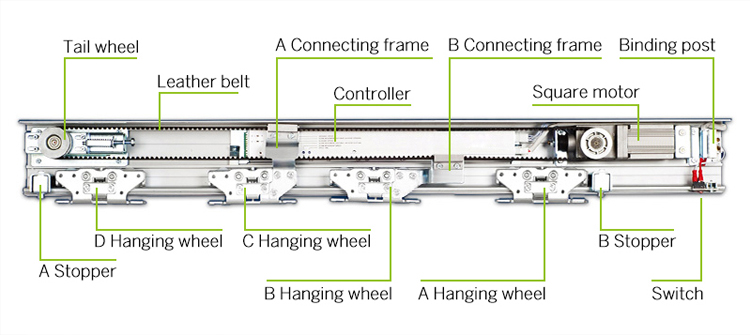

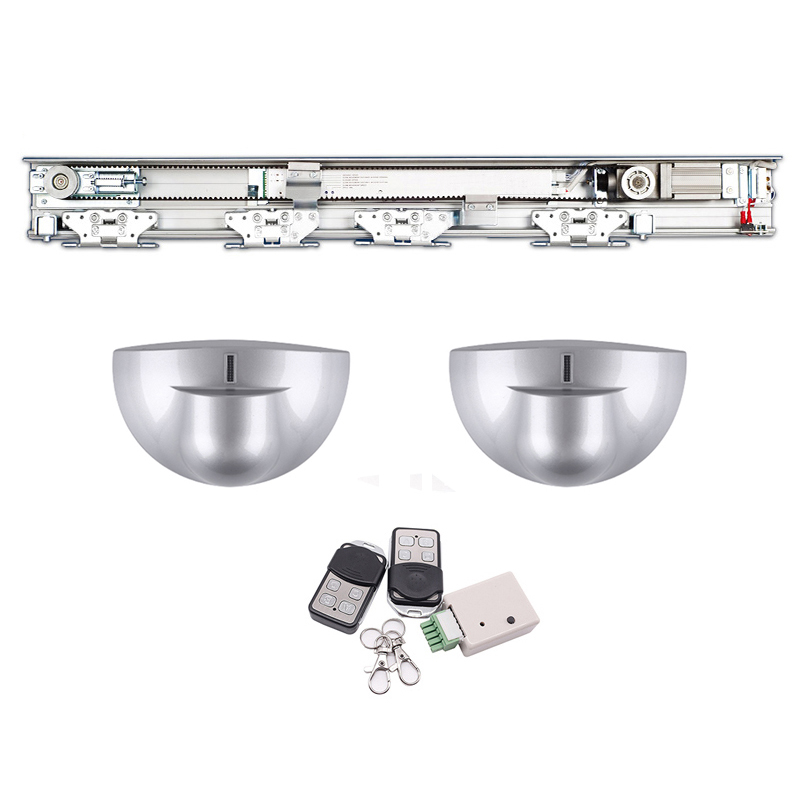

SM150Automatic Sliding Door Operator
Model No.: SM150
Feature:

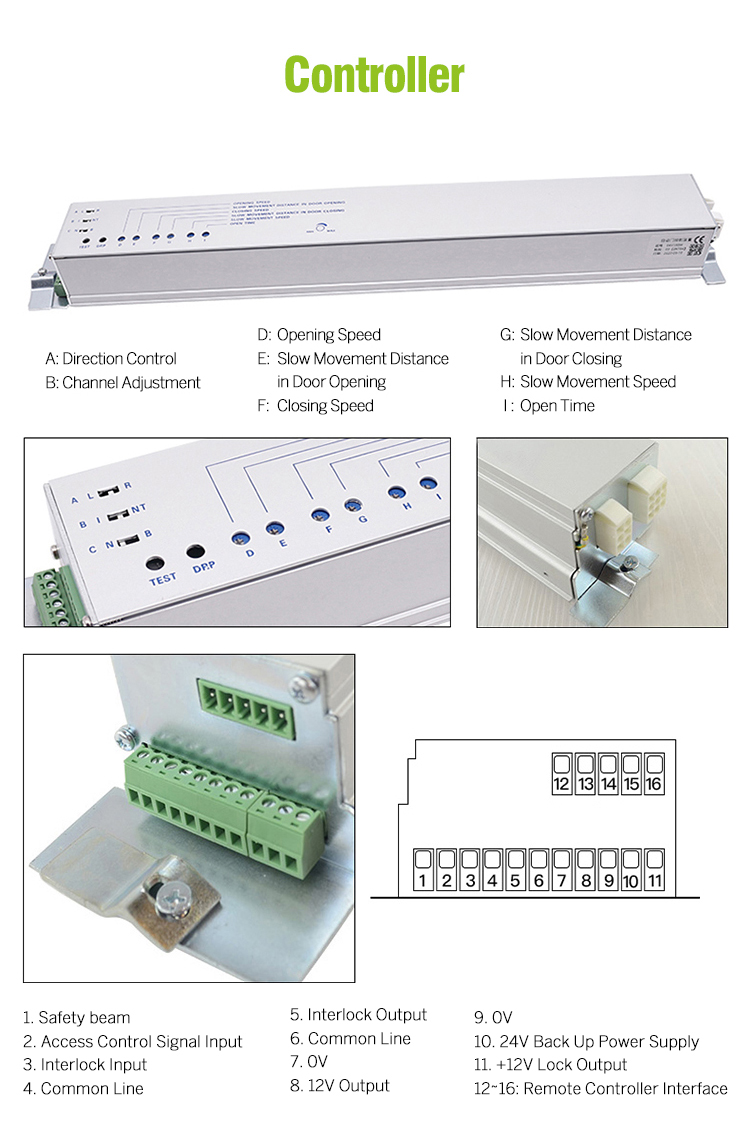

Micro computer intelligent control, advance machinery manufacturing.
Adjust door-leaf status automatically, can manual adjust it if necessary. .
Low noise, sliding smoothly.
Brushless DC servo motor.long service life.

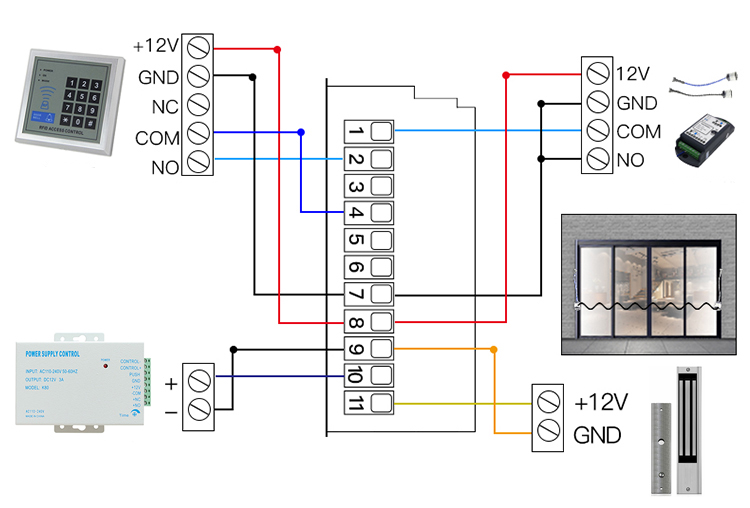

Interlock; Electric Lock; Compatible with access control system.

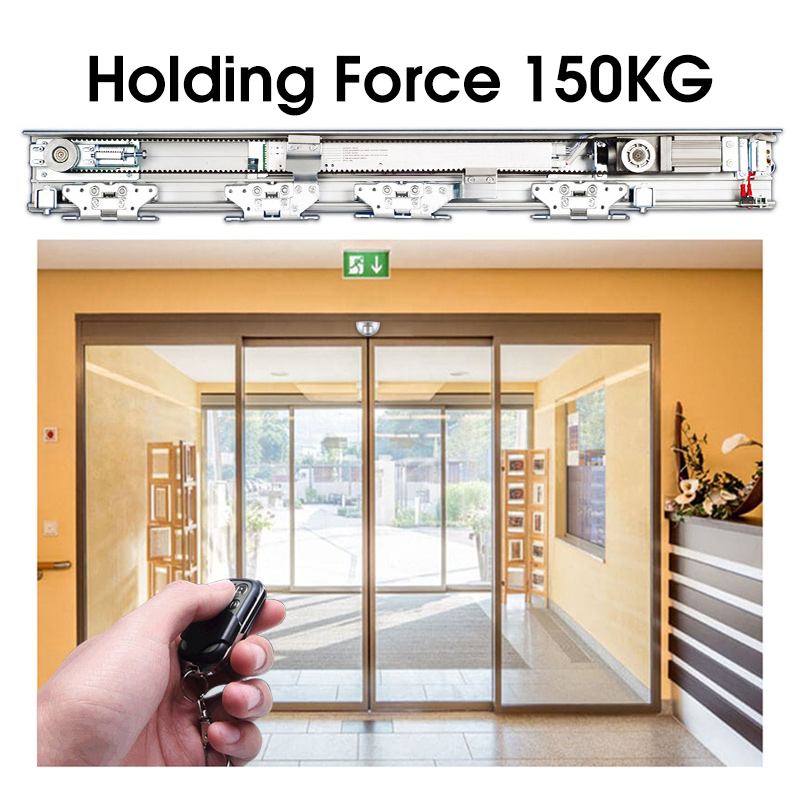

Can hold Max. 300KG Door-leaf

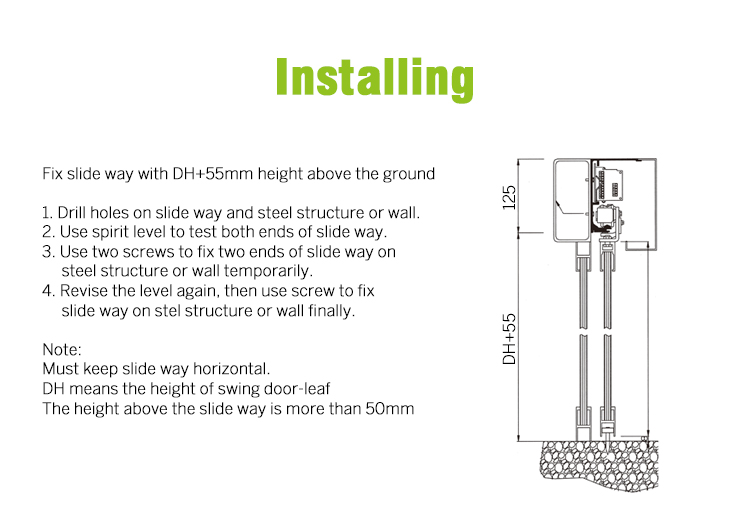

Easy Installation.
Specification | Series | |
Door-leaf Type | Single-leaf | Double-leaf |
Door-leaf Weight | Max.150Kg | Max.150Kg*2 |
Door-leaf Width | DW=750-1600mm | DW=650-1250mm |
Total Width | W=1500-3200mm | W=2600-5000mm |
Mounting Type | Surface Mounting | |
Power | AC90~240V, 50HZ | |
Opening Speed | 15~46cm/s (adjustable) | |
Closing Speed | 13~46cm/s (adjustable) | |
Hold-Open Time | 0~8S (adjustable) | |
Manual Push Force | <40N | <50N |

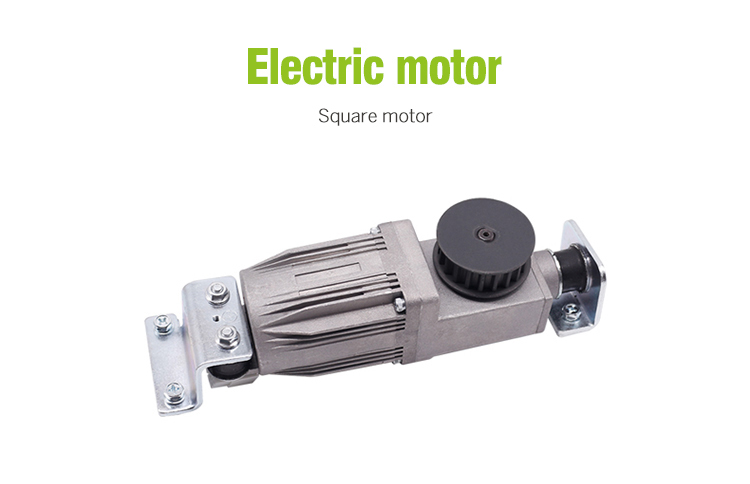

Motor | DC24V Brushless Servo Motor | |
Ambient Temperature | -20℃~50℃ | |

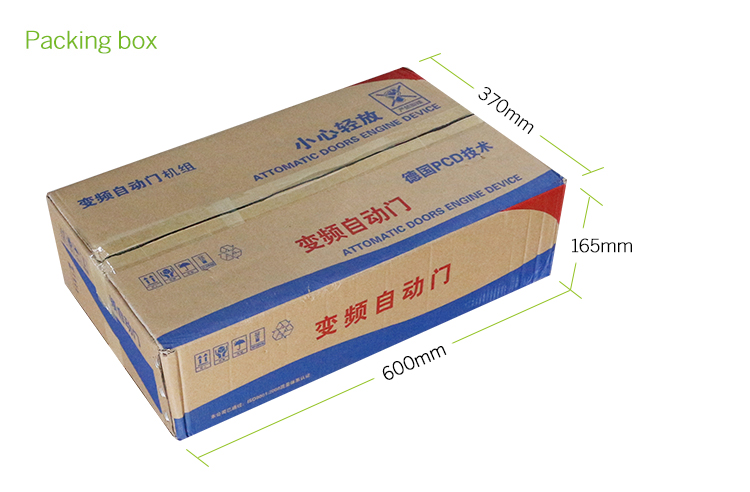

Packing box | 62x33x13mm | |
Weight | 10.58kg | |
Automatic Sliding Door Operator | |||||
Item Number | Description | Quantity | Cartons | N/W | CARTON SIZE |
pcs | (Total) | (kg/carton) | (CM) | ||
SM-150 | Automatic Sliding Door Operator-Major motor | 1 | 1 | 11 | 37x17x61cm |
With Sliding Door track | 1 | 1 | 9.2 | 14x41x213cm | |
Total Weight: | 20.2KG | ||||
S4A SM150 User Manual_Automatic Sliding Door Operator
> Door's Weight: 120kg> Material: Aluminum alloy
> Material: Aluminum alloy> Dimensions: 200x43x28mm
>Luxury 10-12mm thick tempered clear glass>Advanced fully frameless heavy glass design>Reversible for left or right door opening installation>All the hardware is made of high grade stainless steel 304,or 201.>customized length track is avaiable
>Product specifications:150x60x35mm>External materials:Galvanized cast iron>Internal materials:High quality polyester, aluminum alloy bearings
>External materials:Galvanized iron castings>Internal materials:High quality nylon, alloy bearings>Usage type:Automatic doors, sliding doors, framed doors, wooden doors, metal doors
Drive belt type: toothed beltTooth spacing: 8mmBandwidth: 12 mm
Belt width:25Shaft bore diameter:53Material:Stainless Steel
>Main material:Aluminum alloy>Scope of application:10~12mm glass
