The basic working principle of automatic doors

August 03 , 2023

There are many types of automatic sensing doors. First of all, the translation automatic door group consists of the following components:

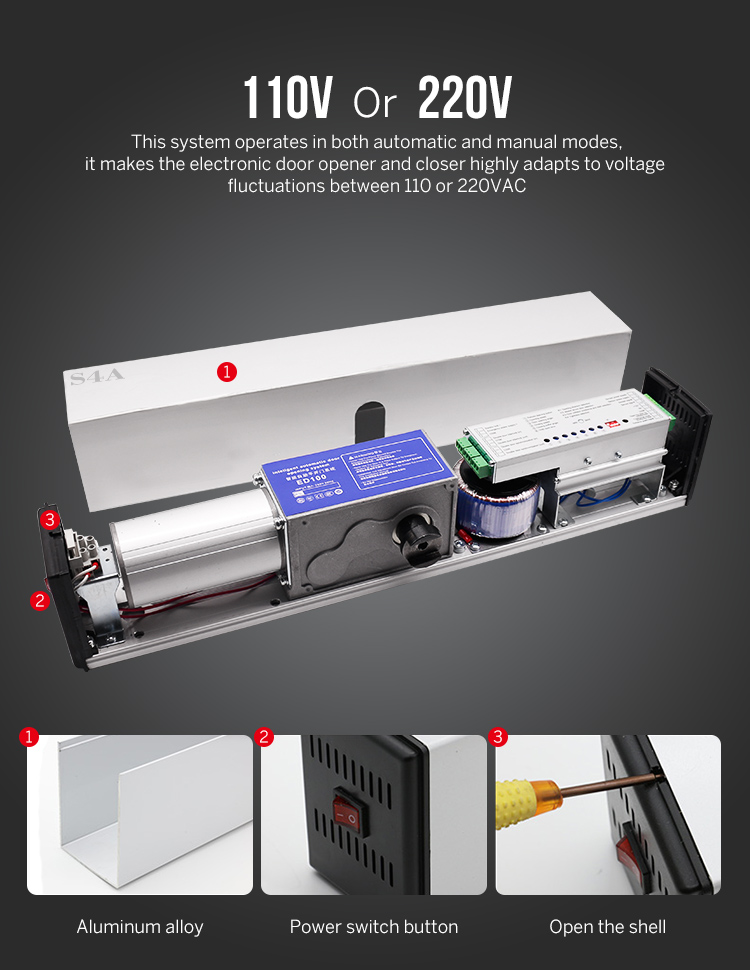

Automatic Door Opener

1. Main controller: It is the command center of the automatic door. Through the large-scale integrated block programmed with instructions inside, it sends corresponding instructions to direct the motor or electric lock system to work; at the same time, people adjust the door opening speed, Turn on parameters such as amplitude.


2. Inductive detector: responsible for collecting external signals, just like people's eyes, when a moving object enters its working range, it will send a pulse signal to the main controller;


3. Power motor: provide the main force for opening and closing the door, and control the acceleration and deceleration of the door leaf.


4. Door leaf travel track: Just like the rails of a train, the spreader wheel system of the door leaf is constrained to make it travel in a specific direction.


5. Door spreader running wheel system: used to hang the movable door leaf, and drive the door leaf to run under the power traction at the same time.


6. Synchronous belt (some manufacturers use V-belt): used to transmit the power produced by the motor, and to pull the wheel system of the door spreader.


7. Lower guiding system: it is the guiding and positioning device of the lower part of the door leaf, which prevents the front and rear door body from swinging when the door leaf is running.


When the door leaf needs to open and close the door once, the working process is as follows:


When the induction detection gang detects someone entering, it sends a pulse signal to the main controller. After the main controller judges, it notifies the motor to run, and at the same time monitors the number of motor revolutions, so as to notify the motor to increase power and enter the invasion operation at a certain time. After the motor gets a certain running current, it runs in the forward direction, and transmits the power to the timing belt, and then the timing belt transmits the power to the spreader system to open the door leaf: after the door leaf is opened, the controller makes a judgment. If the door needs to be closed, the motor is notified to react. Movement to close the door leaf.

Author:Written by Ms.Vivian He from S4A INDUSTRIAL CO.,LIMITED
