How to install the magnetic lock correctly?

February 06 , 2023

Magnetic lock installation process

1. First open the cover plate with a screwdriver, and then use a hexagonal wrench to open the side plate, ready for installation;

2. Take out the installation cardboard, fold the cardboard along the dotted line, place the cardboard at the position where the lock needs to be installed, and then mark the place to be punched and punch the hole;

3. The specific process of installation

(1) To fix the iron plate, insert the hexagon socket head screw into the iron plate, put the rubber washer between the two metal washers, and then put it on the hexagon socket head screw. Insert the relay iron plate into the three holes punched on the door, insert the mushroom head from the other side of the door at the same time, and lock the relay iron plate on the door with a hexagonal wrench.

(2) Fixing of the side plate, fix the side plate on the previously punched door frame with two half-round head screws (fixed in the long hole of the side plate). Do not lock the side plate tightly, so that it can move back and forth to facilitate the correction of the safety position.

(3) Correct the position of the side plate to make the position of the side plate and the relay iron plate suitable, so that the main body of the lock can be in close contact with the relay iron plate.

(4) After fixing the main body of the lock and the side plate and tightening the half-round head screws of the side plate, then lock all the countersunk screws, then remove the half-round head screws, and drill holes in appropriate positions for wiring. Finally, use a hex wrench to lock the main body of the lock on the side plate.

4. Wiring according to the instructions in the manual;

5. Put the cover on, and insert the small aluminum cylinder into the screw hole of the main body of the lock.


Magnetic lock installation method

1. Embedded type

2. Surface type

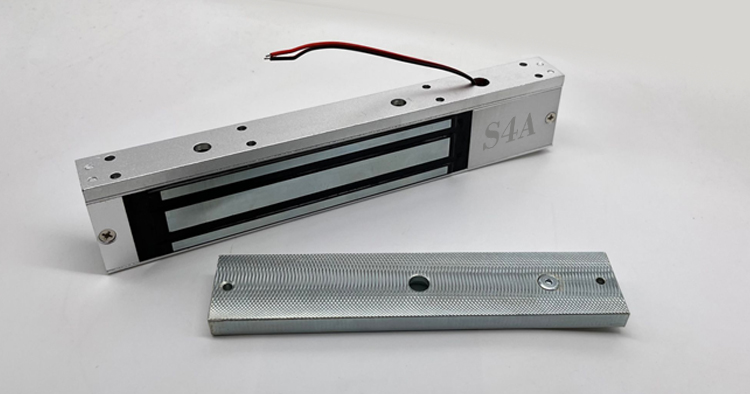

Magnetic lock


1. Embedded type: The embedded (built-in) inner door and outer door are installed in the same way. For wooden doors, if the size of the door retainer is large enough to embed the main body of the lock, the installation is very simple. Dig a suitable groove, lock the screw after the lock is embedded, and the general construction personnel will install the lock when they see it.

2. Surface type: When the inner door is installed on the surface, auxiliary accessories are required to assist in the installation. The Z&L bracket of this installation accessory is made of decorative high-quality imported aluminum materials. First put the L1 bracket in the Z&L bracket on the position where the lock is installed, and fix it on the door frame or wall with self-tapping screws; lock the main body of the lock on the L1 bracket with a hexagonal wrench; fix the Z2 bracket at the position corresponding to the L1 bracket On the door; insert the relay iron plate into the three holes of Z1 and fix it falsely, then close the door, make the magnet and the relay iron plate fit closely, and determine the connecting position of Z1 and Z2; lock Z1 and Z2, and then insert the relay The iron plate is fixed on Z1 with M8*25 inner hexagonal screws, and the screws, iron plate, washer, and rubber washer are inserted in sequence.
