How to Choose and Install the Electric Bolt Lock?

July 20 , 2023

How to choose and install the electric mortise lock?

First of all, what kind of electric mortise lock to choose is mainly determined by the door, so the basic question is, "What kind of door are you". In simple terms, doors can be divided into wooden doors, metal doors, and glass doors.


① For regular wooden doors, you can choose standard-size electric bolt locks, which can generally match.

②For metal doors or relatively strong doors, it is usually necessary to choose a more powerful electric mortise lock, such as a motor-driven electric mortise lock, which has higher security and durability.


③For glass doors, it is necessary to choose specially designed electric mortise locks, which usually have a clamping or sticking method to ensure that the integrity of the door will not be damaged when installed on the glass door.


In addition, it is also necessary to consider the safety performance of the electric mortise lock, power requirements and whether it matches the access control system, and whether it can meet the demand.

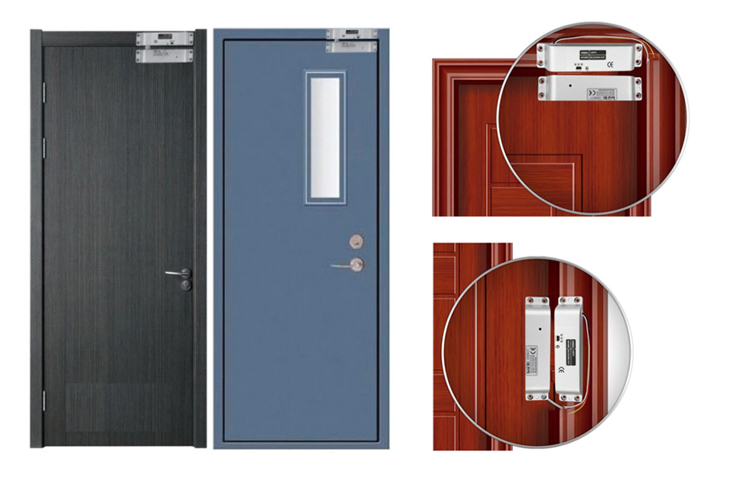

Electric Bolt Lock


Then there are the installation steps of the electric mortise lock, taking the common concealed installation method as an example:

1. Use the perforated paper in the package to stick on the door frame. The center of the perforated paper must be aligned with the center of the door frame measured in the previous step.


2. Use a drill bit with a diameter of 5.5-6.0mm to drill the holes required for the extension piece

3. Cut off the required hole position of the lock body along the line of the hole paper

4. Insert the extension piece from the cutout, tighten the screws, and connect the wires

5. First push the wires into the door frame and install the electric mortise lock and stainless steel panel on the door frame

6. Paste the perforated paper according to the center point measured in the first step

7. Dig out the lock tongue, induction magnet, and screw hole according to the hole paper mark

8. Install the latch plate and tighten the screws

9. The installation of the smart electric mortise lock is completed


Author:Written by Anna Zhang from S4A INDUSTRIAL CO., LIMITED
