Glass door electric mortise lock magnetic lock installation comparison

December 05 , 2022

The electric mortise lock looks beautiful in concealed installation, and can open the door 180 degrees inside and outside, but it is not as strong and durable as the magnetic lock. It needs to dig a lock hole, and the construction and installation are more complicated. It can be used in the following three types of glass doors:


1. Glass door with upper and lower edges

2. The glass door with upper edge and lower edge without edge

3. The upper and lower glass doors without edging


electric mortise lock


1. Glass door with upper and lower edges

For glass doors with upper and lower edges, it is recommended to install an electric mortise lock without any additional accessories. The vertical thickness of the upper door frame must be > 4.5cm, because the electric mortise lock is concealed, and the lock body needs to be embedded in the door frame, requiring glass There are hemmings on the top and bottom of the door.


2. The glass door with upper edge and lower edge without edge

The vertical thickness of the upper door frame is > 4.5cm for glass doors with edging on the upper side and no edging on the lower side. It is recommended to use an electric mortise lock to fix the lock hole with the help of the lower door clip. Mortise method.


3. The upper and lower glass doors without edging

For glass doors without upper and lower edges, the vertical thickness of the upper door frame is > 4.5cm, and the electric mortise lock needs to be fixed by the upper door clamp, and the lock hole is fixed by the lower door clamp.

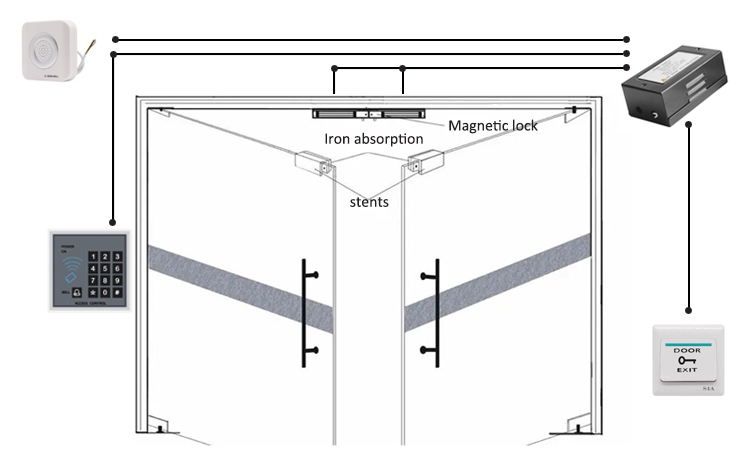

magnetic locks

Larger glass doors can be installed with magnetic locks, which are strong enough and durable. Large glass doors with upper and lower edges are regarded as wooden doors, and the door frame is required to exceed the vertical surface of the door by more than 3cm, No need for bracket; when the door frame is not wide enough, use the L bracket to expand the door frame The width allows the magnetic lock to "hang up", and the direction of the inner door is considered beautiful. The magnetic lock is installed with the aid of the LZ bracket, and does not need to be installed outside.

Auxiliary U-shaped brackets are required for large glass doors with upper edging and lower edging.


Author:Written by Ms.Rebecca Fu from S4A INDUSTRIAL CO.,LIMITED
