Door stopper installation method and detailed steps!

May 29 , 2023

Door stopper installation method and detailed steps!

Door stopper

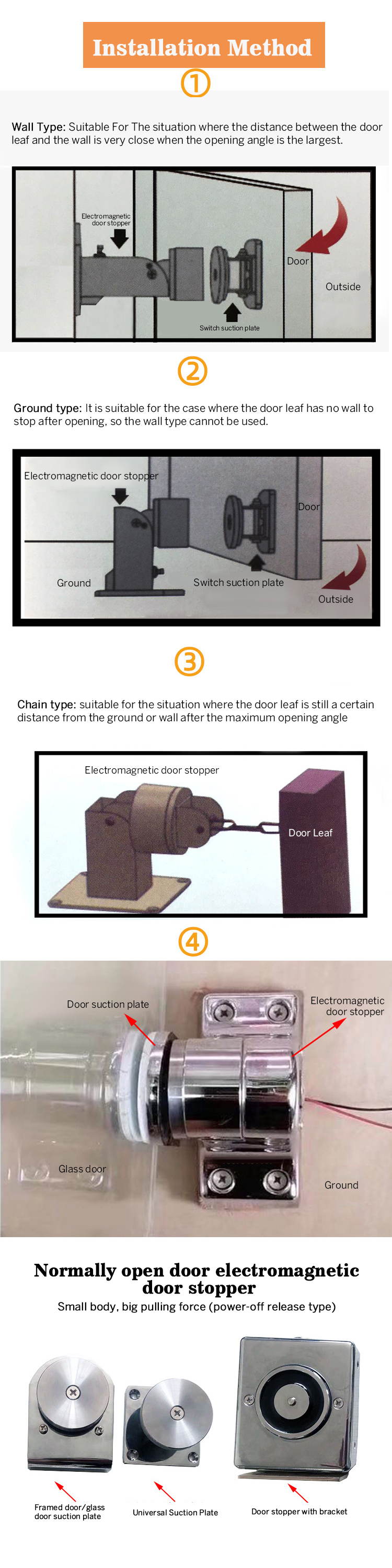

1. First confirm the installation method of the door stopper, whether it is installed on the ground or on the wall.

Taking the bathroom as an example, the door stopper is directly installed on the floor tiles, leaving space behind the door. Measure the size after confirming the specific installation position.


2. In the second step, open the door to the required maximum position, and test whether the function of the door stopper is reasonable and whether the distance between the door stopper and the door is appropriate.

Locate the position of the door. After roughly positioning, open the door and try to see if the actual operation is reasonable, including whether the door stopper goes in or out, and the specific angle of the door stopper.


3. After the final location is determined, locate on the floor tiles, and first locate the stop position of the door.

Use a pencil to confirm the position of the door on the floor tiles. The master worker uses a pencil to draw a line on the ground. First confirm the final position of the door opening, and then confirm the final installation position of the door stopper.


4. After the door is positioned, draw the positioning position of the door stopper.

To mark the final position of the door stopper, it needs to be positioned twice, both for the door and the door stopper, for better installation. The two points are in a straight line, which is the best way to confirm the angle of door stopper and door opening.


5. The next job is to drill the electric drill and drill the installation hole of the door stopper on the ground.


6. Assemble the fixed end of the door stopper

Tighten the screws on the top. The door stopper is divided into a fixed end and a door end. The fixed end needs to be tightened before installation, and then use the included internal angle wrench to tighten the Qi fixed on the ground or wall.


7. Fix the door suction on the ground

Use a small internal angle to screw the screw, and then go through the procedures of confirming the position, drilling, and assembly. The next job is to install the fixed end on the ground. Use the small internal angle tool to tighten the screw on the fixed end, and the door stopper will automatically Installed.


8. Confirm the position of the door stopper at the door end

The door suction end on the door only needs to be tightened with screws. The positioning of the door end, the method is to open the door to the maximum first, then find the exact position on the door, and tighten the door stopper at the door end with screws.


9. Fine-tuning

Fine-tune the angle of the fixed end of the door stopper and then fully tighten it. The last step of the door stopper installation is to fine-tune the angle of the door stopper so that it fits perfectly with the door stopper at the door end, and finally tighten the screws thoroughly.


Author:Written by Ms.Rebecca Fu from S4A INDUSTRIAL CO.,LIMITED
