Waterproof Access Control 13.56mhz Reader

> Card type: EM Card

> Waterproof IP68

> 2000 uses, supports Card, PIN, Card + PIN

> Strong Zinc Alloy Electroplated anti-vandal case

> Size: 120x76x23mm

  • Brand:

    S4A
  • Item NO.:

    T15
  • Specifications

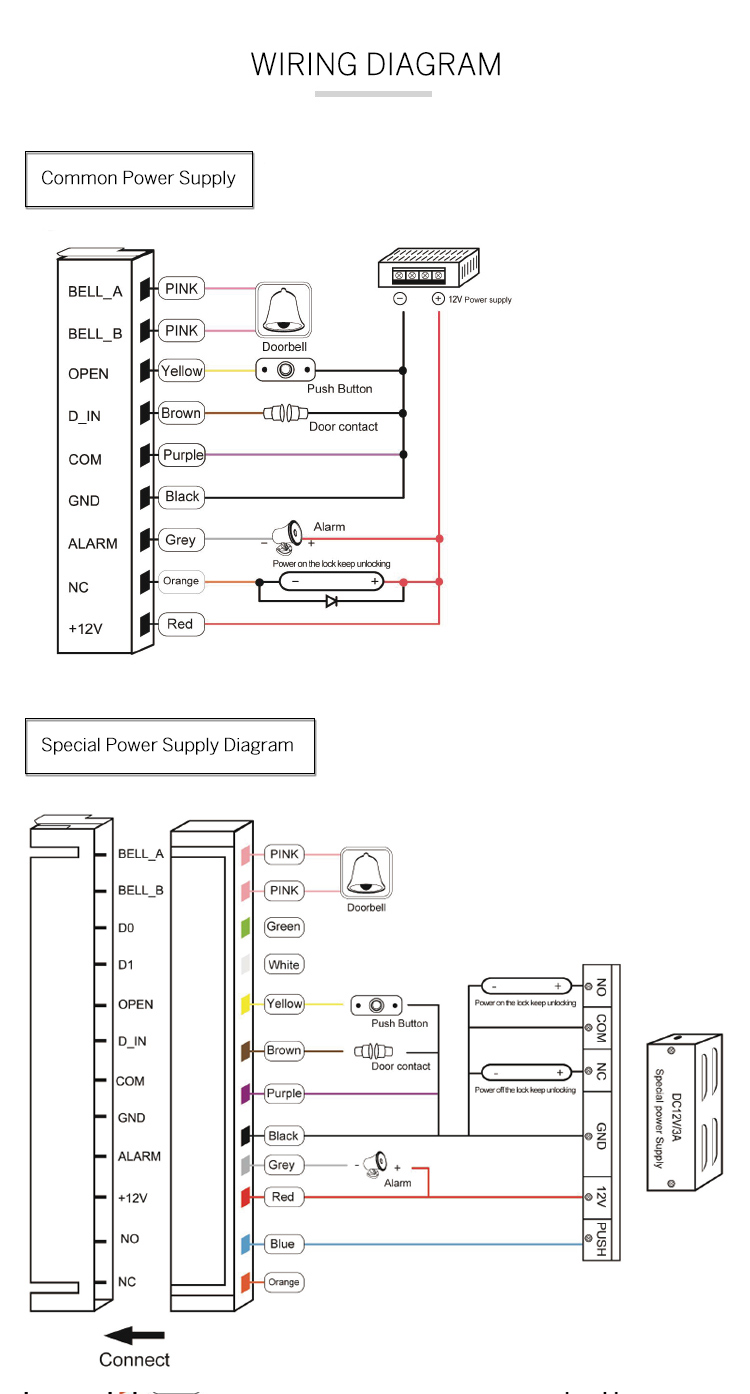

  • Wiring Diagram
  • Package
  • Download

Touch Access Controller and Reader

Model No.: T15 EM


The unit is a single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy, and vandal-proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The electronics are fully potted so the unit is. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection, Wiegand output, and a backlit keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks, and prisons.

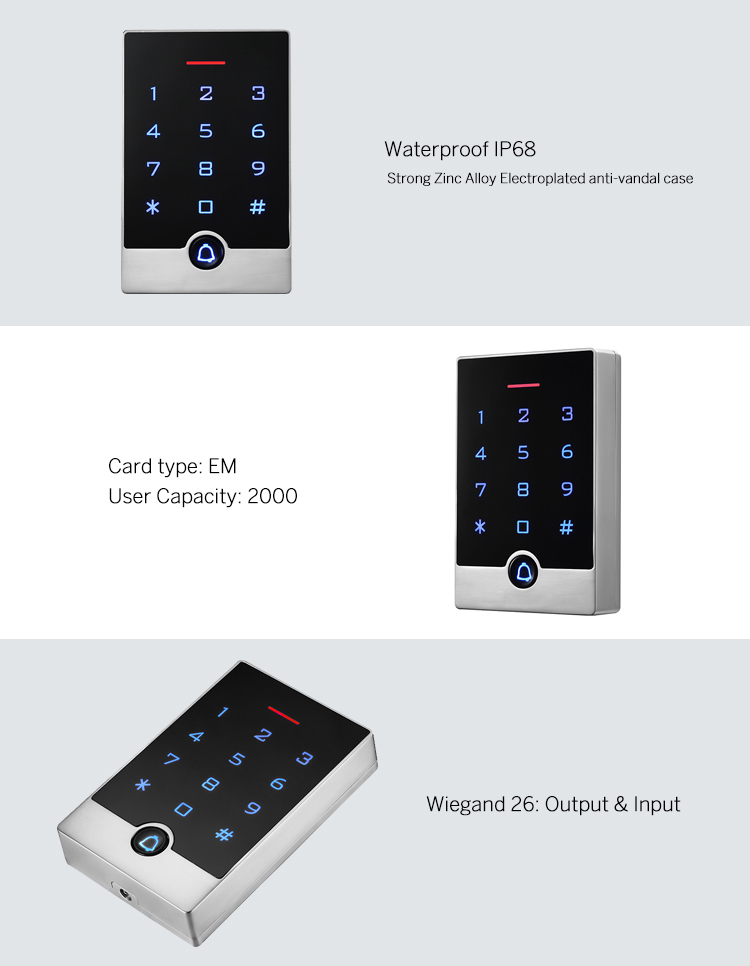

> Waterproof IP68

> Strong Zinc Alloy Electroplated anti-vandal case

> 2000 uses, supports Card, PIN, Card + PIN

> Adjustable Door Output time, Alarm time, Door Open time

> Lock output current short circuit protection

> Built-in a light-dependent resistor (LDR) for anti-tamper

> Built-in buzzer

> Red, Yellow and Green LEDs display the working status


Operating Voltage

DC 12V ±10%

User Capacity

2000

Card Reading Distance

3-6 cm

Active Current

<60mA

Idle Current

25±5 mA

Lock Output Load

Max 3A

Alarm Output Load

Max 20A

Operating Temperature

-45℃~60℃

Operating Humidity

10%- 90% RH

Adjustable Door Relay time

0 -99 seconds

Adjustable Alarm Time

0- 3 minutes

Wiegand Interface

Wiegand 26 bit

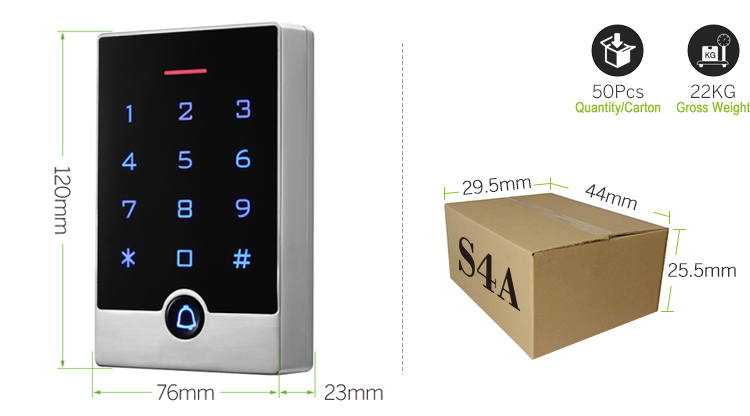

Size

120*76*23mm

Wiring Connections

Electric Lock, Exit Button, External Alarm, External reader


Access Control 13.56Mhz reader

Access Control 13.56Mhz reader

Waterproof Access Control 13.56mhz Reader

Model No.

Quantity/Carton

Gross Weight

Carton Size

T15EM

50pcs

22KG

44x29.5x25.5cm

T15MF

T15EM-W

50pcs

23.2KG

T15MF-W

Access Control 13.56Mhz reader

S4A User Manual T15_Waterproof Access Control 13.56mhz Reader
