Touch Screen Standalone Access Controller in Access Control Systems

> Card type: EM Card

> User Capacity: 2000

> Card Reading Distance: 3-6 cm

> Size: 117x71x22mm

  • Brand:

    S4A
  • Item NO.:

    T12
  • Specifications
  • Wiring Diagram
  • Package
  • Download

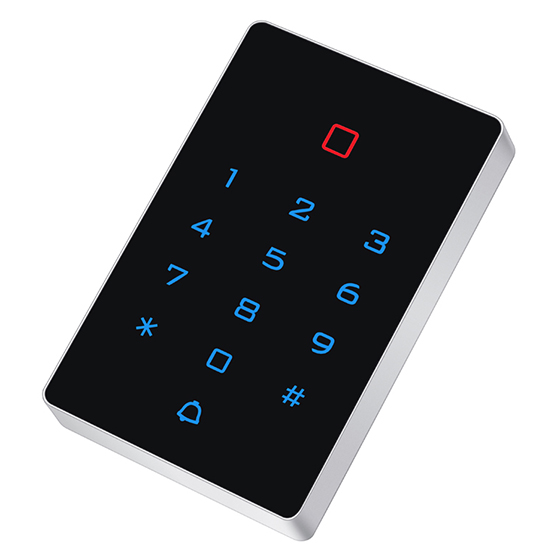

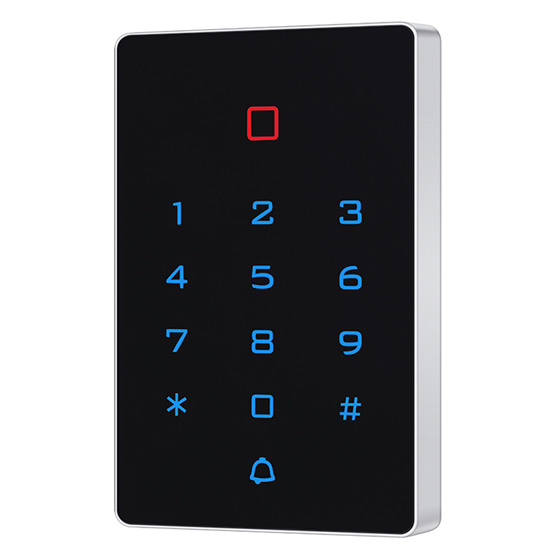

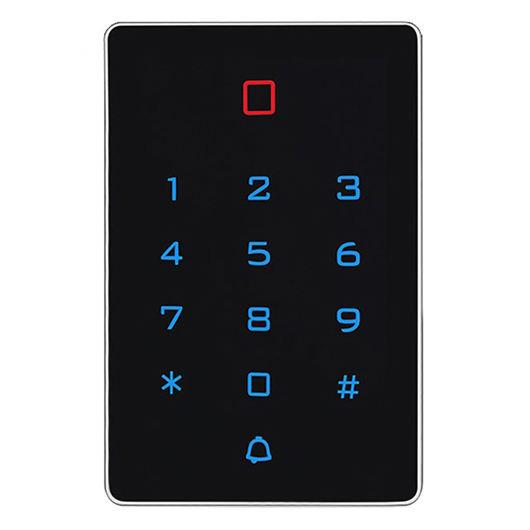

Touch Screen Standalone Access Controller

Model No.: T12 EM


The unit is a single door multifunction touch standalone access controller or a Wiegand output keypad or card reader. It is a plastic touch keypad access control. The inbuilt card reader supports 125KHZ EM cards. This unit has the inbuilt upscale microprocessor which makes the unit very jam-proof, safe, and reliable. It is suitable for mounting either indoor or outdoor. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option.  The unit has many extra features including lock output current short circuit protection, Wiegand output, and a backlit keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks, and prisons.


> Touch keypad, numbers backlight

> 2000 uses, supports Card, PIN, Card + PIN

> Can be used as a standalone keypad for PIN users

> Adjustable Door Output time, Alarm time, Door Open time

> Lock output current short circuit protection

> Built-in a light-dependent resistor (LDR) for anti-tamper

> Built-in buzzer

> Red, Orange and Green LEDs display the working status


Operating Voltage

DC 12V±10%

User Capacity

2000

Card Reading Distance

3-6 cm

Active Current

<60mA

Idle Current

25±5 mA

Lock Output Load

Max 3A

Alarm Output Load

Max 20A

Operating Temperature

-45℃~60℃

Operating Humidity

10%- 90% RH

Adjustable Door Relay time

0 - 99 seconds

Adjustable Alarm Time

0 - 3 minutes

Wiegand Interface

Wiegand 26 bit

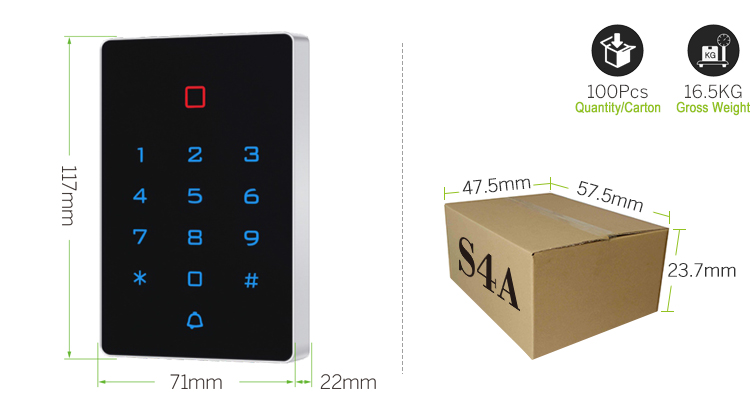

Size

117*71*22MM

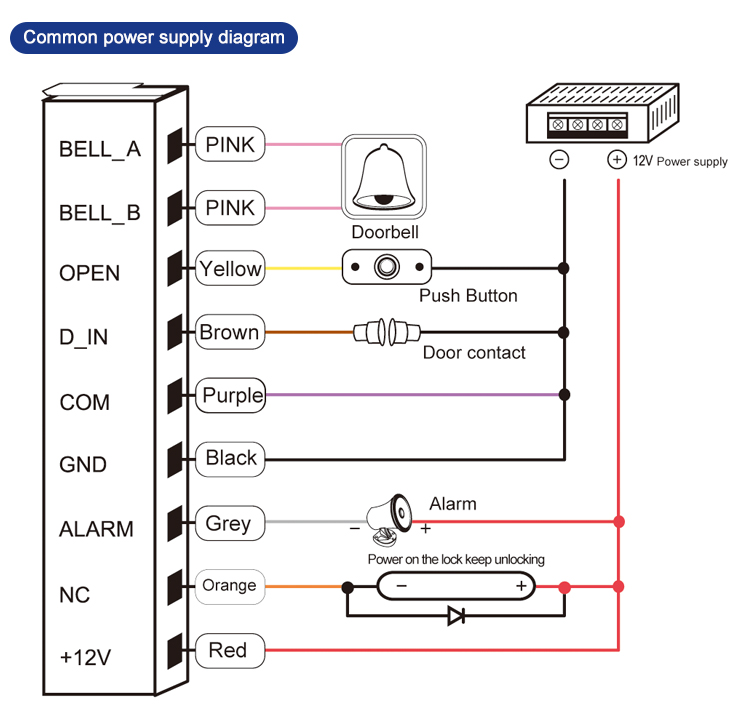

Wiring Connections

Electric Lock, Exit Button, External Alarm, External reader

Access Control SystemsAccess Control Systems

Access Control Systems


Touch Screen Standalone Access Controller in Access Control Systems

Model No.

Quantity/Carton

Gross Weight

Carton Size

T12EM

100pcs

16.5KG

57.5x47.5x23.7cm

T12MF

100pcs

16.5KG

Access Control Systems

S4A User Manual T12_Touch Screen Standalone Access Controller in Access Control Systems
